Festo NEBM-M23G15-EH-20-Q7N-R3LEG14 Motor Cable
New
In stock1 unitReady to ship

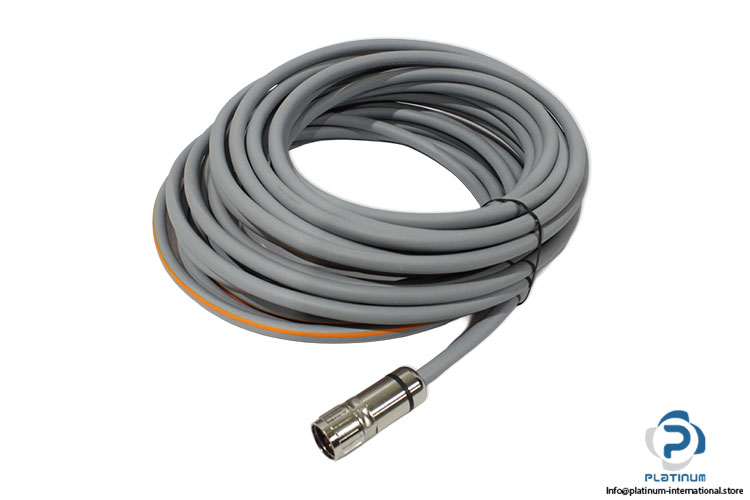

Motor Cable FESTO hybrid motor cable with M23 female connector, RJ45/open-end connection, 20 m cable length, IP67 protection, and shielded construction for industrial automation and motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

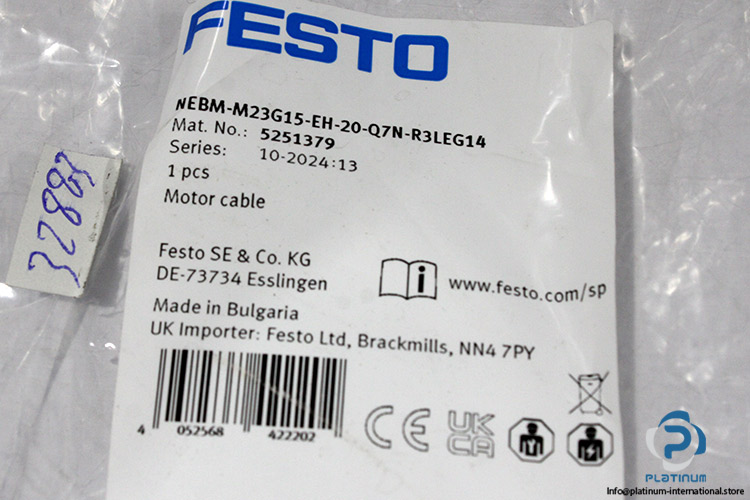

| Part No. | 5251379 |
| SN | 4052568422202 |
| Cable length | 20 M |

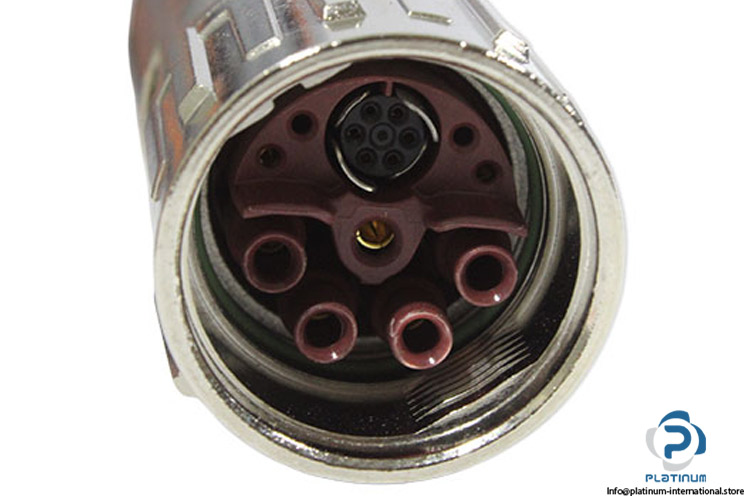

| connector 1 | 15 -pins |FeMale, M23 |

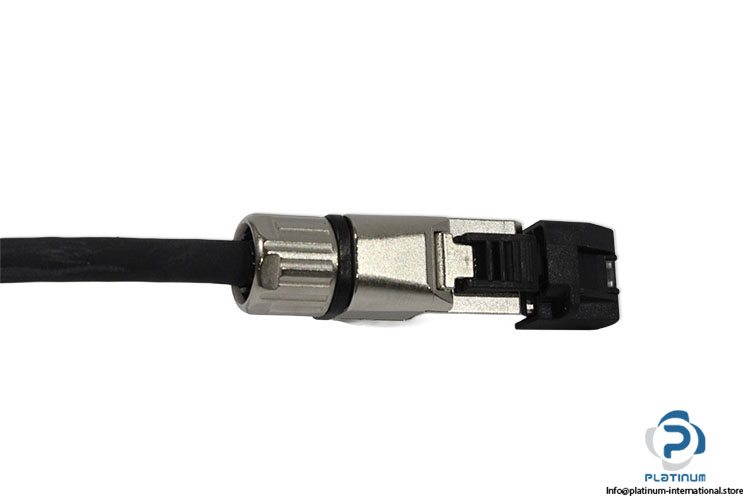

| connector 2 | RJ45 and open end(6WIRE) |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Hybrid socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M23x1 |
| Electrical connection 1, number of pins/wires | 15 |
| Electrical connection 1, occupied pins/wires | 12 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995912 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Connector and cable |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | RJ45 and open end |
| Electrical connection 2, number of pins/wires | 14 |
| Electrical connection 2, occupied pins/wires | 12 |
| DC operating voltage range | 0 V ... 850 V |
| Operating voltage range AC | 0 V ... 630 V |
| Current rating at 40° C | 11.7 A |
| Surge resistance | 6 kV |
| Shield | Yes |
| Suitable for energy chains | Bending radius, fixed cable installation:48 mm |
| Bending radius, flexible cable installation | 90 mm |
| Cable diameter | 12 mm |
| Cable diameter tolerance | ± 0.3 mm |

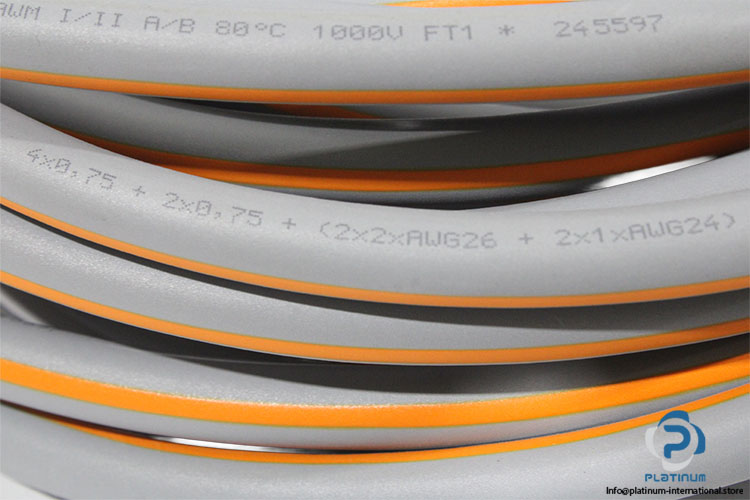

| Cable design | 4 x 0.75 mm² + 1 x (2 x 0.75 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²) |
| Nominal conductor cross section | 0.24 mm² |

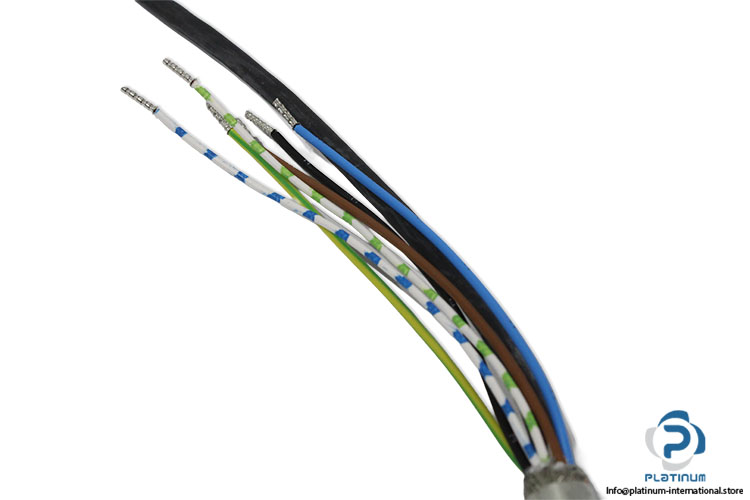

| Wire ends | Wire ferrule |
| Degree of protection | IP67 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099496 |
| Weight | 4,36 |
