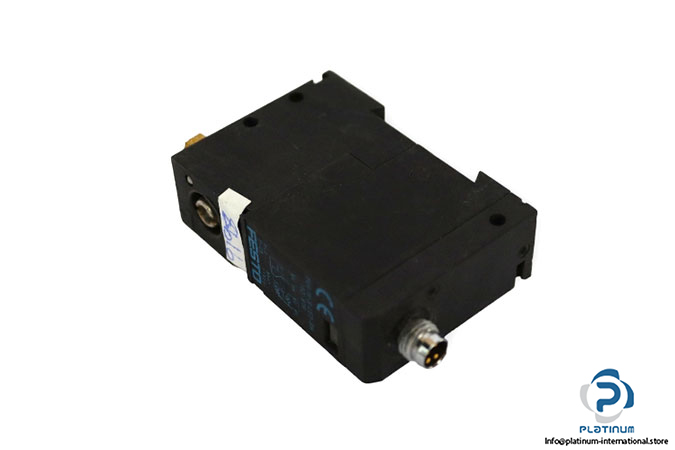

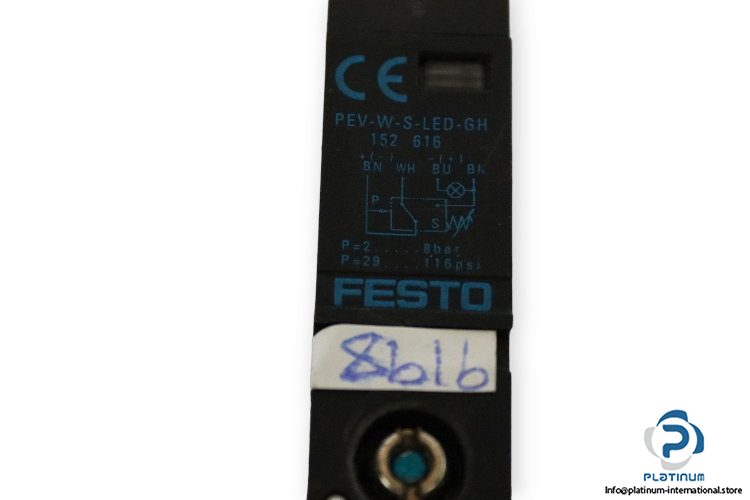

Festo PEV-W-S-LED-GH Pressure Switch

Manufacture: Festo
Type: Pressure switch
Model: PEVWSLEDGH
Part No.: 152616

Max. output current: 2500 mA
Operational voltage range: 10 … 30 V DC
Operating medium: Compressed air to ISO 8573-1:2010
Pressure Measuring Range bar: 2 … 8 bar
Pressure Measuring Range psi: 29 … 116 psi
Connection: 4-pin, M8x1, Plugs (M5)
Degree of protection: IP65
Material housing: PA, PET, POM
Switching element function: Changeover switch
Type of mounting: Either With through-hole, With H-rail
Ambient temperature: 0 … 60 °C
