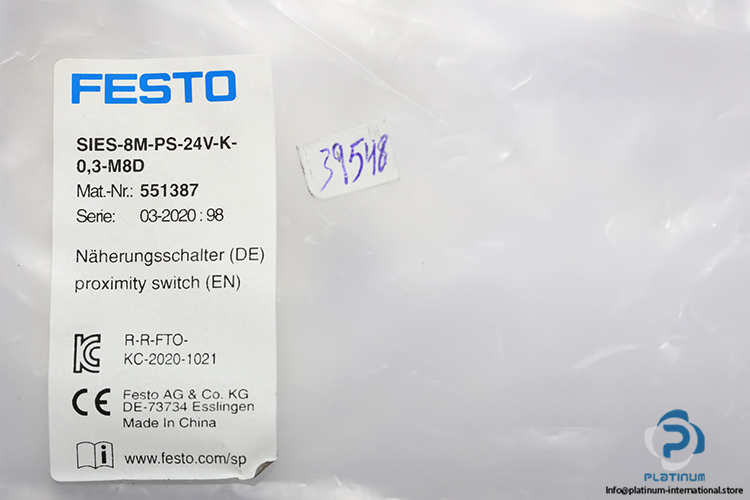

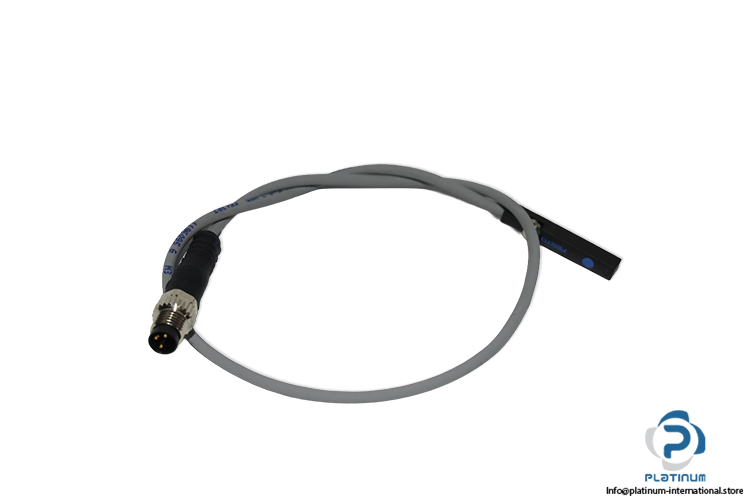

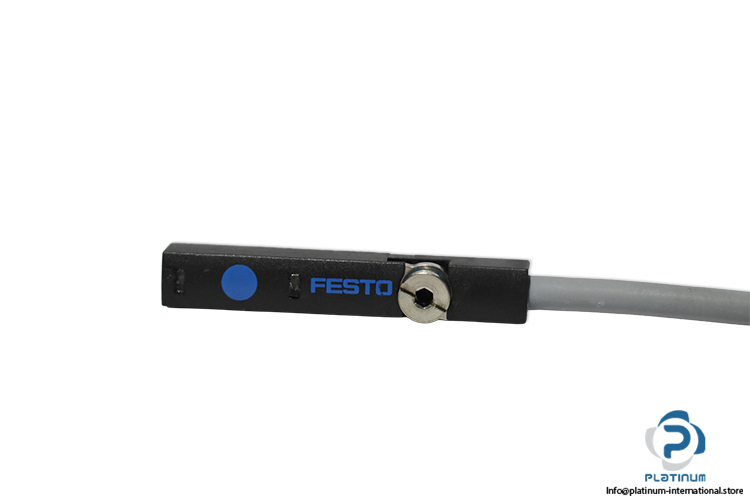

Festo SIES-8M-PS-24V-K-0.3-M8D Proximity Sensor
New
In stock1 unitReady to ship
Proximity Sensor The FESTO SIES-8M-PS-24V-K-0.3-M8D is a proximity sensor with PNP output, designed for fast and reliable position sensing in industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 551387 |
| Size | Slot 8 |
| Operational voltage range DC | 10 V ... 30 V |
| Residual ripple | 10% |
| No-load supply current | =10 mA |
| Reverse polarity protection | For all electrical connections |

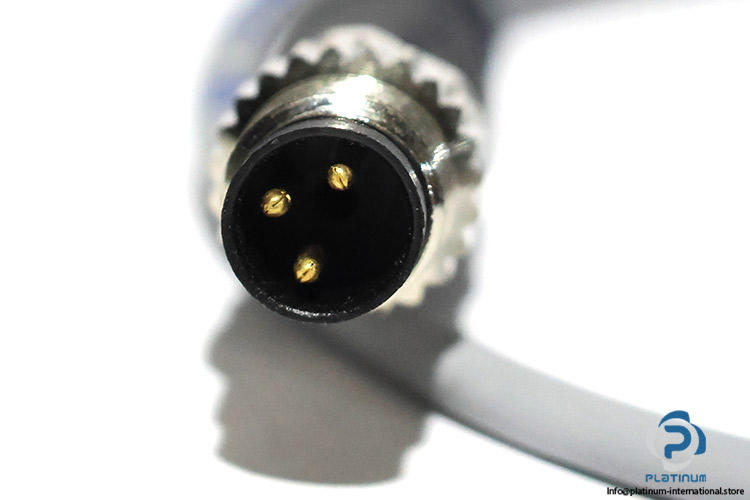

| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock,Rotatable |
| Measuring principle | Inductive |
| Rated operating distance | 1.5 mm |
| Design | For T-slot |
| Material cable sheath | TPE-U(PU) |
| Material insulating sheath | PVC |
| Conforms to standard | EN 60947-5-2 |
| Switching output | PNP |
| Switching element function | N/O contact |
| Ambient temperature | -5 °C ... 70 °C |
| Repetition accuracy with constant conditions | 0.05 mm, approach from the side |
| Switch-on time | 1.0E-4 ms |
| Max. switching frequency | 4500 Hz |
| Max. output current | 150 mA |
| Max. switching capacity DC | 4.5 W |
| Voltage drop | 2 V |
| Inductive protective circuit | Integrated |
| Degree of protection | IP65 IP67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100965 |
| Weight | 0,02 |
