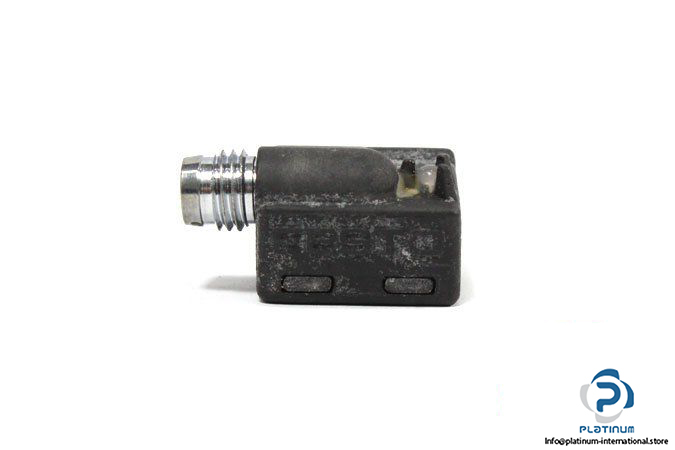

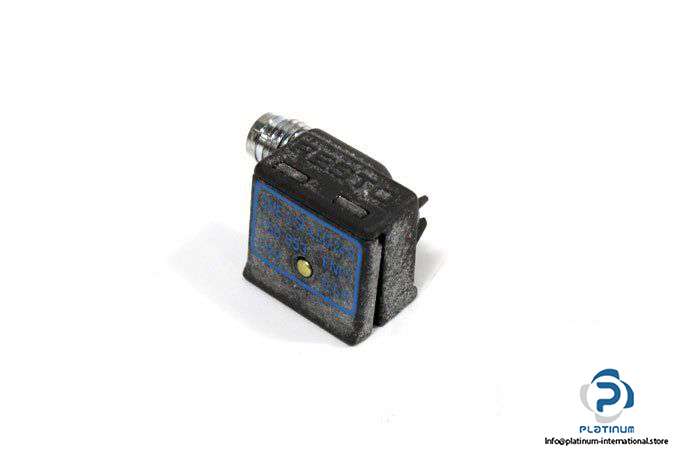

Festo SME-3-SL-LED-24-B Electrical Reed Switch

Manufacturer:  FESTO

Type:  ELECTRICAL REED SWITCH

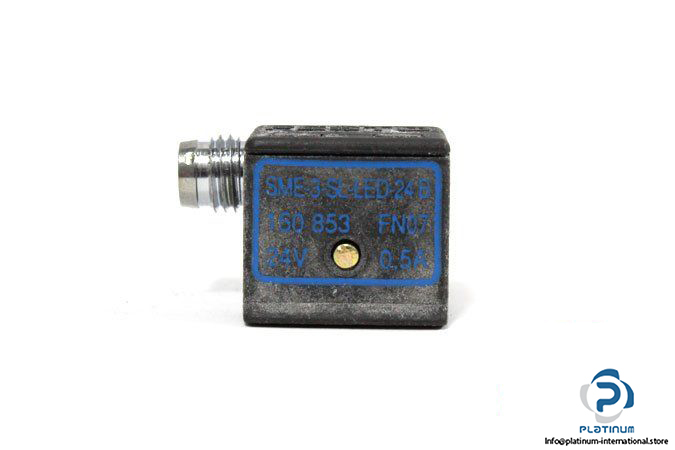

Model : SME-3-SL-LED-24-B

Part No.: 150853

Switching time: 0.5 ms

Operating Voltage: 12 … 24 V AC/DC

Operating Current: 500 mA

Switching frequency: 800 Hz

Switching Capacity: 10 W

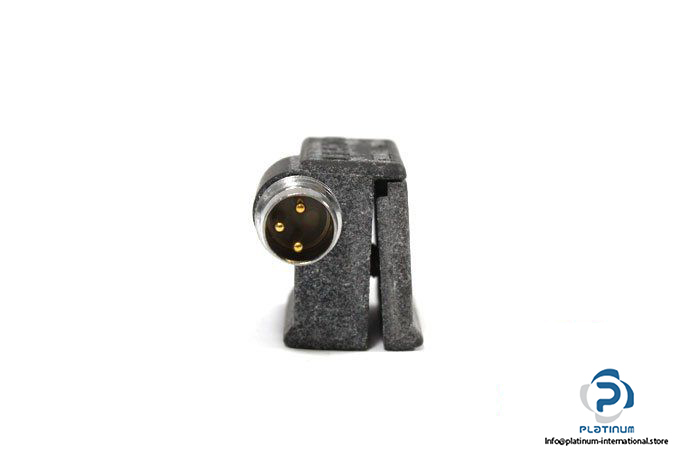

Connector type: M8 Connector, 3-pin

Enclosure rating: IP66

Ambient Operating temperature: -20 … 60°C

Diameter, housing length:  18 x 19 x 13 mm
