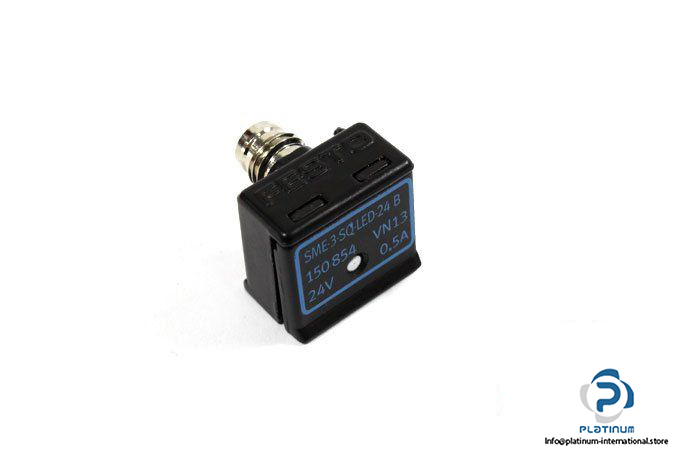

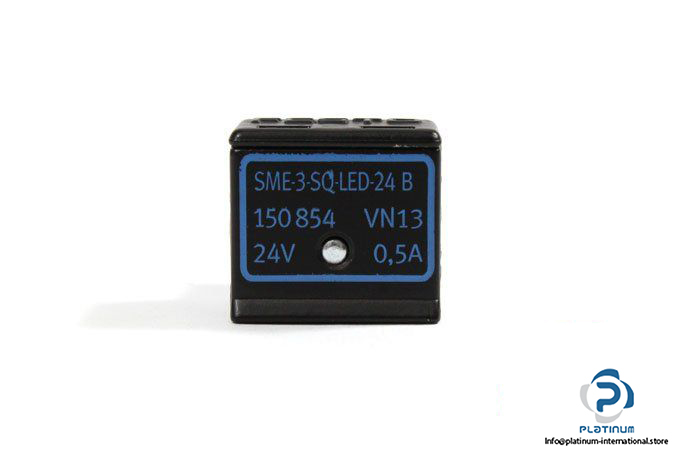

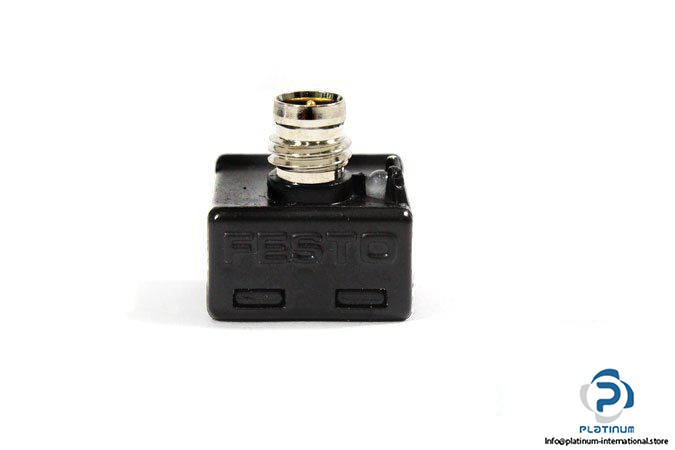

Festo SME-3-SQ-LED-24-B Proximity Switch

Manufacturer: FESTO

Type: PROXIMITY SWITCH, ELECTRICAL REED SWITCH

Model: SME-3-SQ-LED-24-B

Part No.: 150854

Measuring principle: Magnetic reed

Operating Voltage: 12 … 27 V AC/DC

Switching Current max.: 500 mA

Switching Capacity max.: 10 w

Switching frequency: 800 Hz

Switching time max.: 0.5 ms

Switching output: Normally open

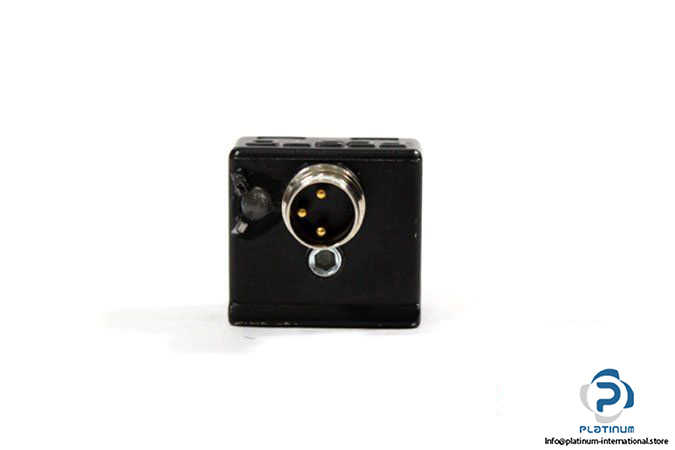

Connector type: M8 Connector, 3-pin

Enclosure rating: IP66

Ambient Operating temperature: -20 … 60°C

Diameter, housing length: 18 x 10 x 20 mm

Housing material: Epoxy resin
