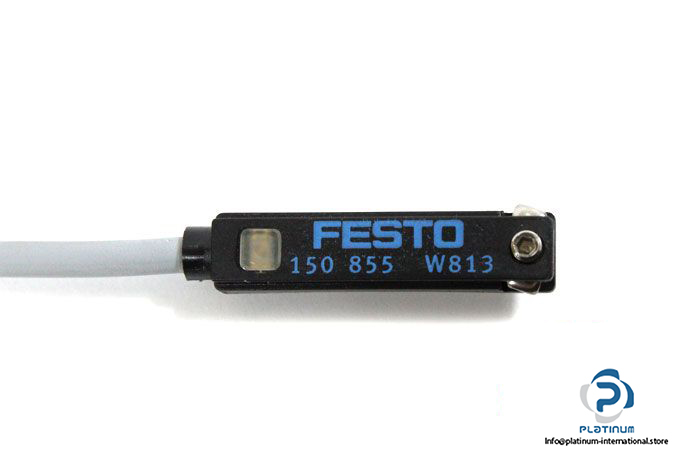

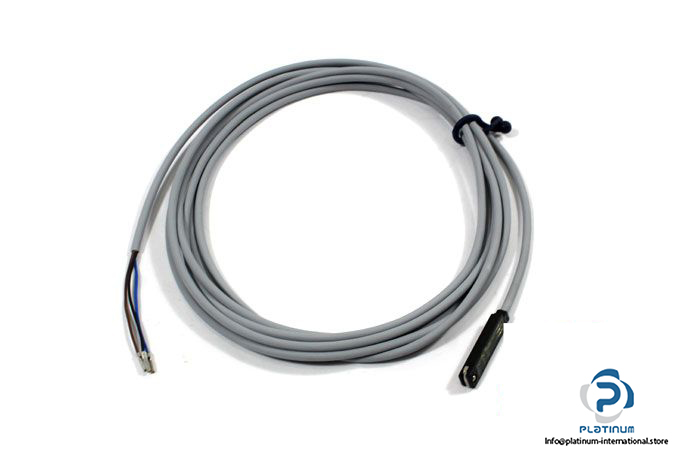

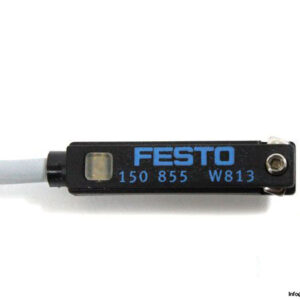

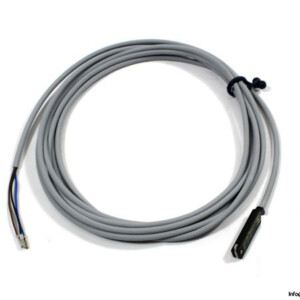

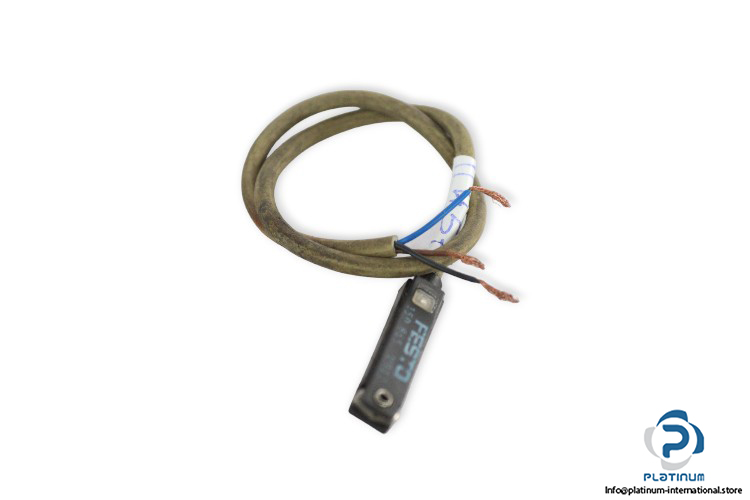

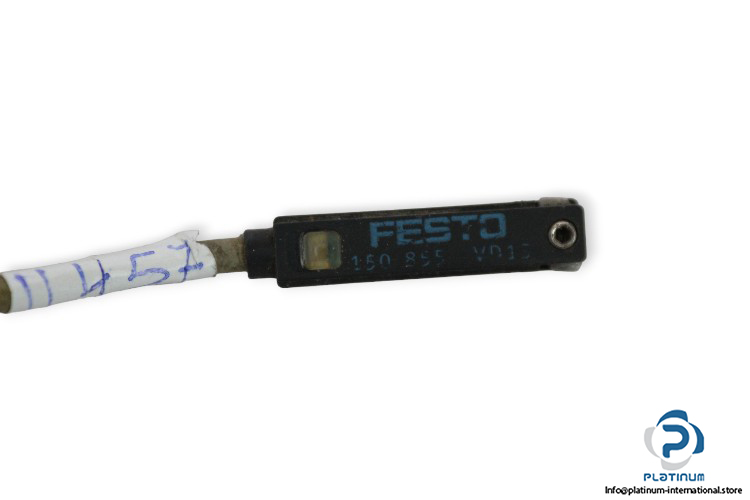

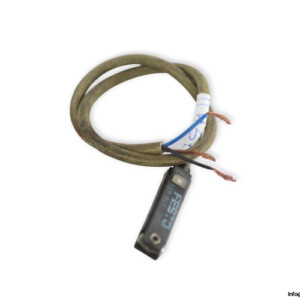

Festo SME-8-K-LED-24 Proximity Sensor

Manufacturer: FESTO
Type: Proximity Sensor
Model: SME-8-K-LED-24
Part No: 150 855

Measuring Principle: Magnetic Reed
Operating Voltage Range: 12 … 30 V AC/DC
Switching Frequency max.: 800 Hz
Output Current: 500 mA
Switching Output: Normally Open (NO)
Contact Rating max.: 10 W
Connector Type: PUR Cable, 2.5 m
Housing Material: Epoxy Resin, PC, PET
Protection Proof: IP 65, IP 67
Ambient Temperature: -40 … 60 °C
Dimensions: 4 x 6 x 29 mm
