Festo SME-8F-DS-24V-K0,3-M8D Proximity Switch
New
In stock4 unitsReady to ship
PROXIMITY SWITCH
Festo SME-8F-DS-24V-K0,3-M8D magnetic proximity switch with IP65/IP67 protection, 10 / 30 V AC/DC operating range, and compact 5 x 6 x 33 mm housing for reliable position sensing.10-30V3-M8D525896CompactConnectorFestoIndustrialIP65IP67M8MagneticNormallyOpenPositionProximitySensorSME-8F-DS-24V-K0Switch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

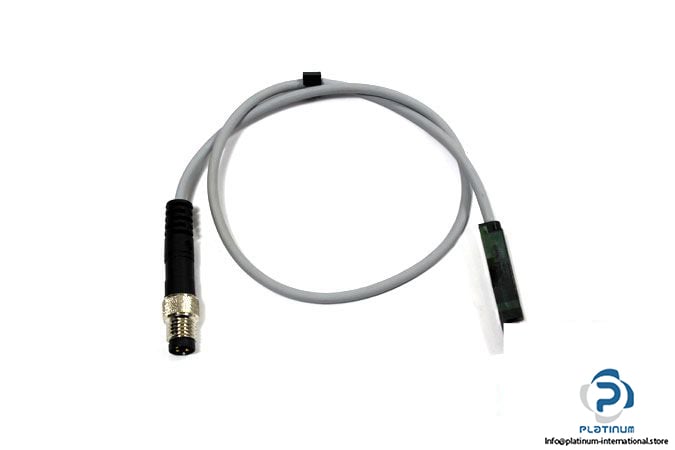

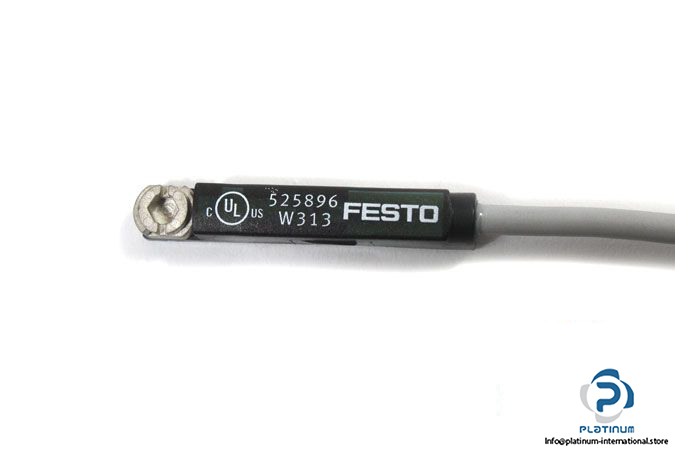

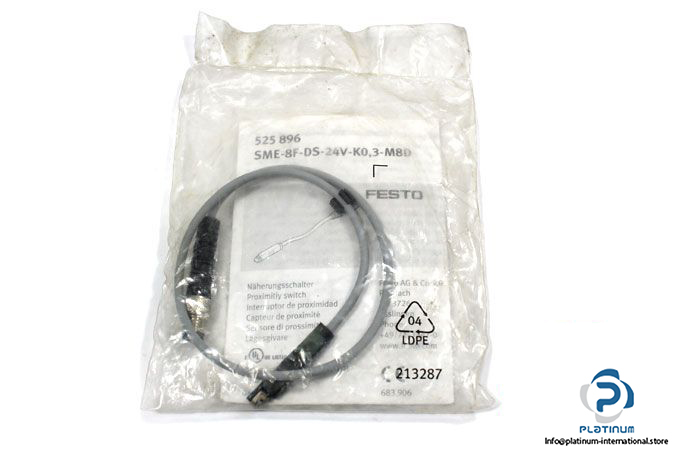

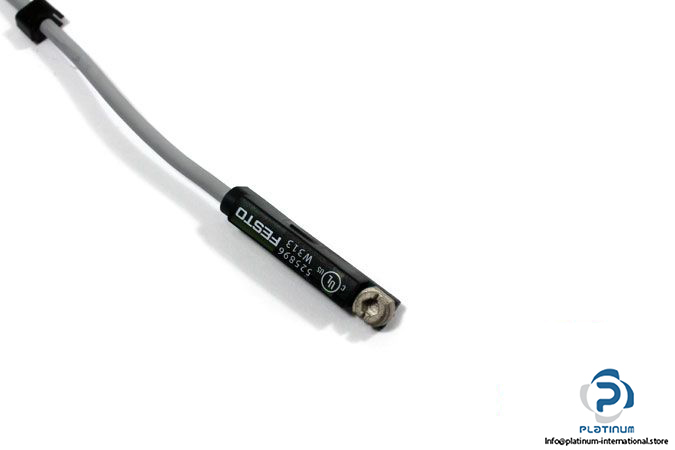

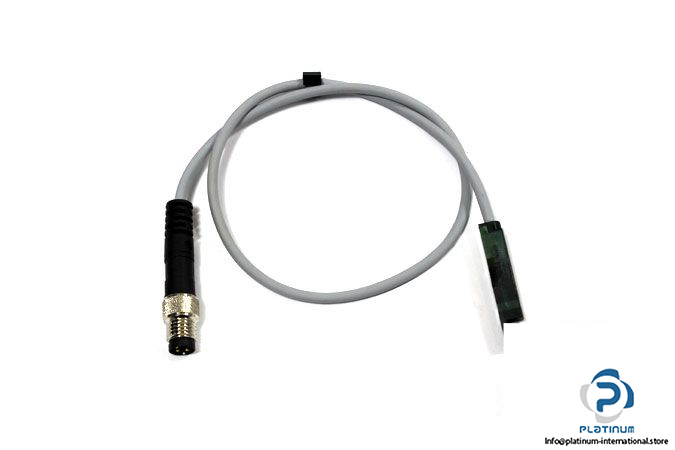

FESTO SME-8F-DS-24V-K0,3-M8D PROXIMITY SWITCH
The Festo SME-8F-DS-24V-K0,3-M8D is a high-quality magnetic proximity switch designed for precise position sensing in industrial automation applications. Built with durable housing materials and a compact design, it ensures reliable operation in demanding environments. With IP65/IP67 enclosure protection and a wide operating voltage range, this sensor is suitable for various pneumatic and mechanical systems.
Manufacturer: FESTO
Type: Proximity Switch
Model: SME-8F-DS-24V-K0,3-M8D
Part No.: 525896
| Operating Voltage | 10 / 30 V AC/DC |
| Output Current | 500 mA |
| Switching Output DC Max. | 10 W |
| Switching Output | Normally Open |

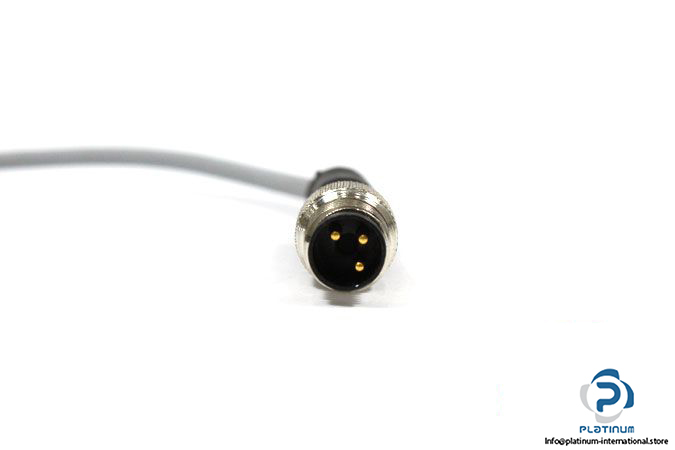

| Connector Type | M8 Connector, 3-pin |
| Enclosure Rating | IP65/IP67 |
| Ambient Operating Temperature | -20 / 60°C |
| Dimensions | 5 x 6 x 33 mm |
| Housing Material | PA, St, Epoxy Resin |
