Festo 150847 Reed Proximity Sensor
New
In stock1 unitReady to ship
Magnetic Reed Proximity Sensor
Festo SMEO-1-S-24 B magnetic reed proximity sensor with normally open contact, operating voltage 0 / 30 V DC, M8 3-pin connector, and IP67 protection for pneumatic cylinder position detection.0-30AutomationBConnectorCylinderdcFestoIndustrialIP67M8MagneticNormallyOpenPneumaticPositionProximityReedSensorSmeoSMEO-1-S-24SwitchV
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

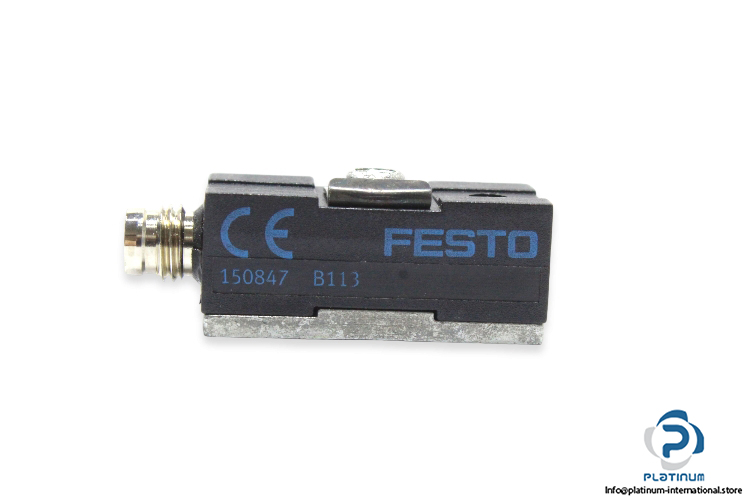

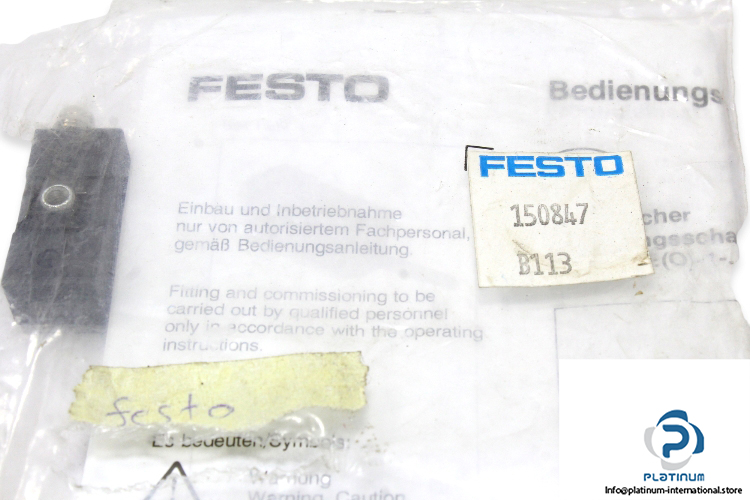

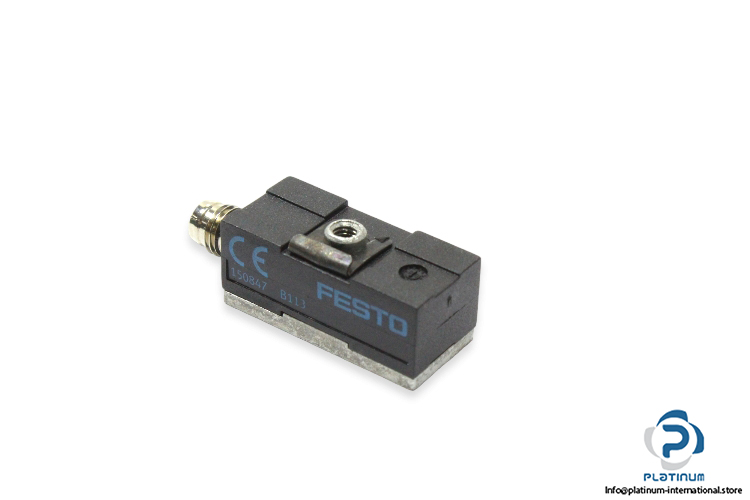

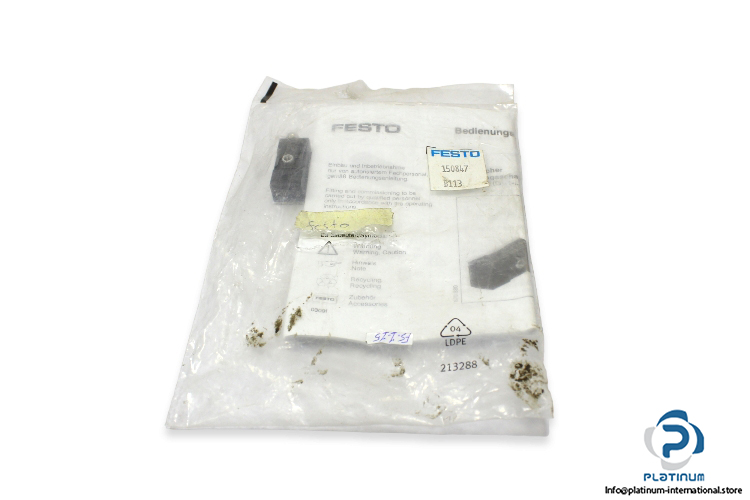

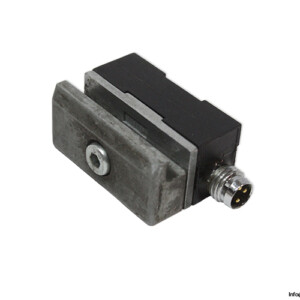

Festo SMEO-1-S-24 B Magnetic Reed Proximity Sensor
The Festo SMEO-1-S-24 B is a magnetic reed proximity sensor designed for position detection in pneumatic cylinders and industrial automation systems. It detects magnetic fields generated by piston magnets and provides reliable switching signals for control applications.
Manufacturer: Festo
Type: Magnetic Reed Proximity Sensor
Model: SMEO-1-S-24 B
Part No.: 150 847
| Measuring Principle | Magnetic Reed |
| Operating Voltage | 0 / 30 V DC |
| Contact | Normally Open (NO) |
| Switching Frequency Max. | 500 Hz |
| Switching Capacity Max. | 30 VA/W |
| Electrical Connection | Connector M8x1, A-Coded, 3-Pin |
| Material | PET / Steel / Die-Cast Zinc |
| Protection Class | IP67 |
| Ambient Temperature | -20 / 70 °C |
