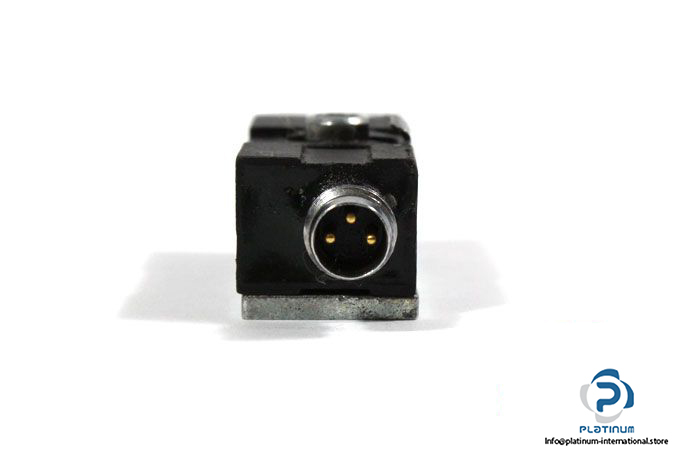

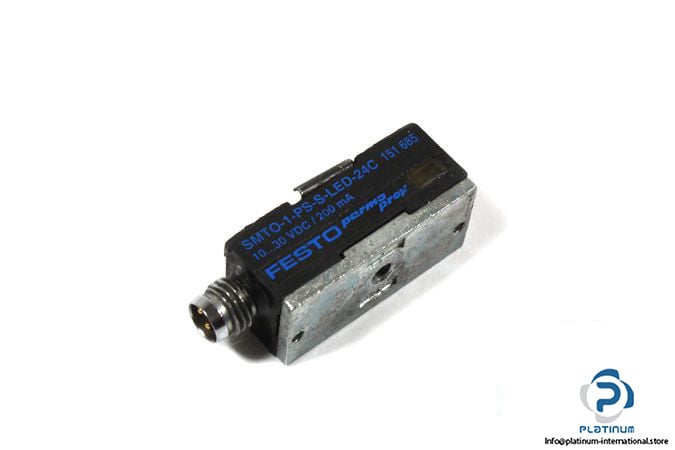

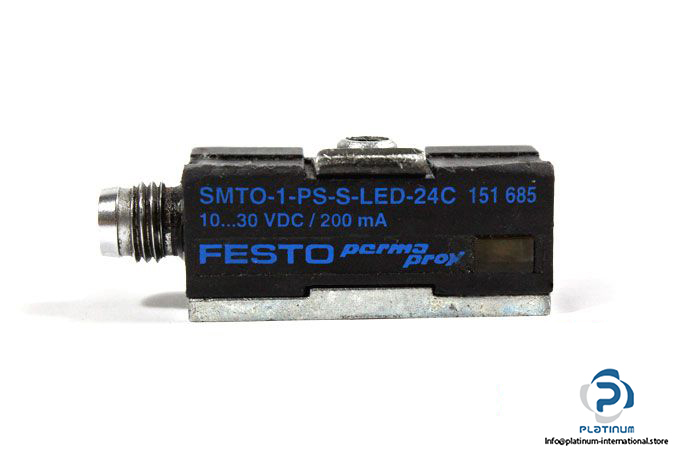

Festo SMTO-1-PS-S-LED-24C Proximity Sensor

Manufacturer:  FESTO

Type:  PROXIMITY SENSOR

Model : SMTO-1-PS-S-LED-24C

Part No.: 151685

Measuring principle: Magnetic inductive

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Contact rating max.: 8 W

Electrical design: PNP

Switching output: Normally open

Connector type: M8 Connector, 3-pin

Operating status display: Yellow LED

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 15.5 x 14 x 34 mm

Weight: 20 g

Housing material: Plastic, steel, zinc die-cast
