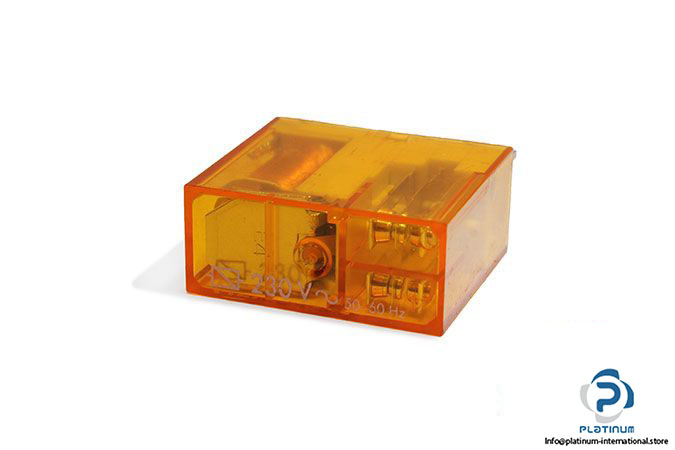

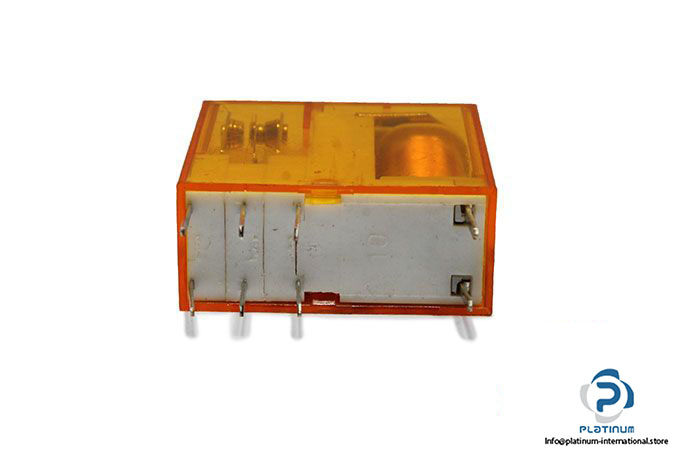

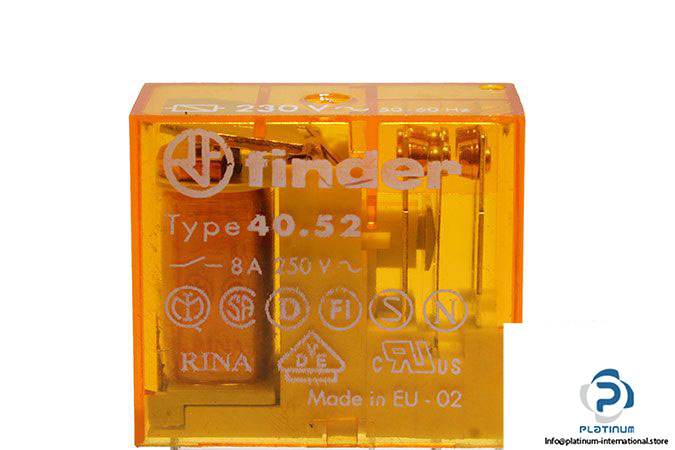

Finder 40.52 230 VAC Miniature Pcb/Plug-IN Relay

Manufacturer: Finder

Type: Miniature PCB/Plug-in Relay

Model: 40.52



Contact Configuration: 2 CO (DPDT)

Rated Current/Max. Peak Current: 8/15 A

Rated Voltage/Max. Switching Voltage: 250/400 VAC

Rated Load AC1: 2000 VA

Rated Load AC15 (230 V AC): 400 VA

Coil Nominal Voltage: 230 VAC

Single phase motor rating (230 V AC): 0.3 kW

Contact Material: AgNi

Ambient Temperature: -40 … 85 °C

Dimensions: 12.4 X 29 X 25 mm

Weight: 0.015 Kg
