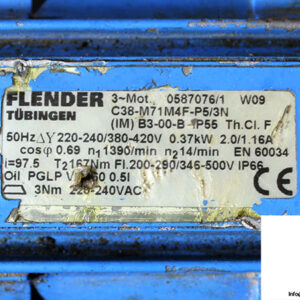

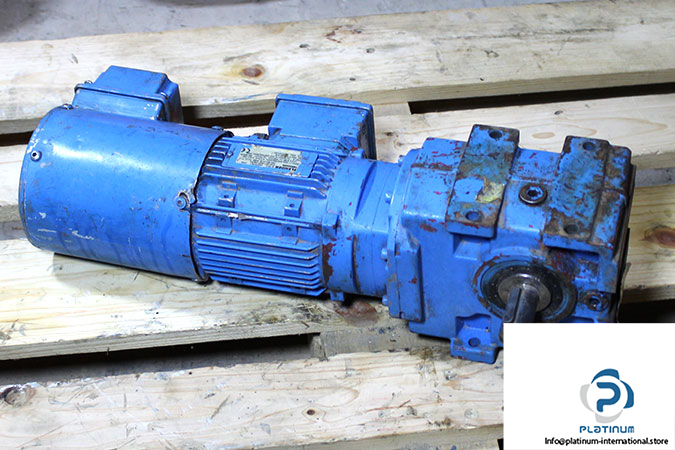

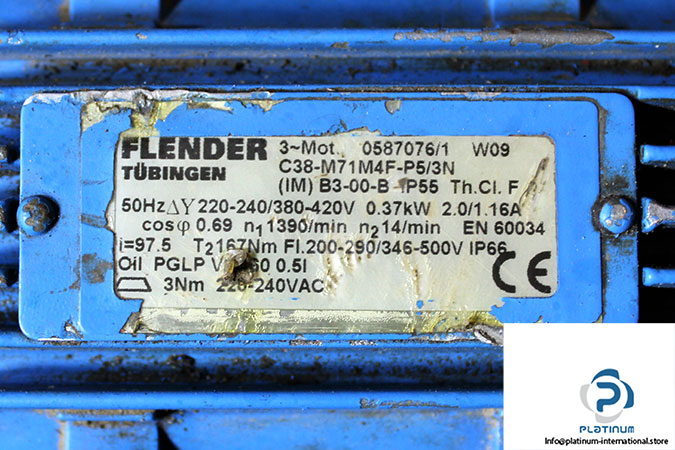

Flender C38-M71M4F-P5/3N Gearmotor
Manufacturer: Flender
Type: Gear Motors
Model: C38-M71M4F-P5/3N
Speed [r/min]: 1390/14
Ratio [i]: 97.5
Motor Power [kW]: 0.37
Rated Torque [Nm]: 167
Rated Voltage [V]: 220-240/380-420
Rated Voltage [V]: 200-290/346-500
Rated Current [A]: 2.0/1.16
Cos Phi: 0.69
Frequency [Hz]: 50
Duty: S1
Thermal Class: F
Enclosure [IP]: 55/66
Brake Voltage [VAC]: 220-240
Brake Torque [Nm]: 3

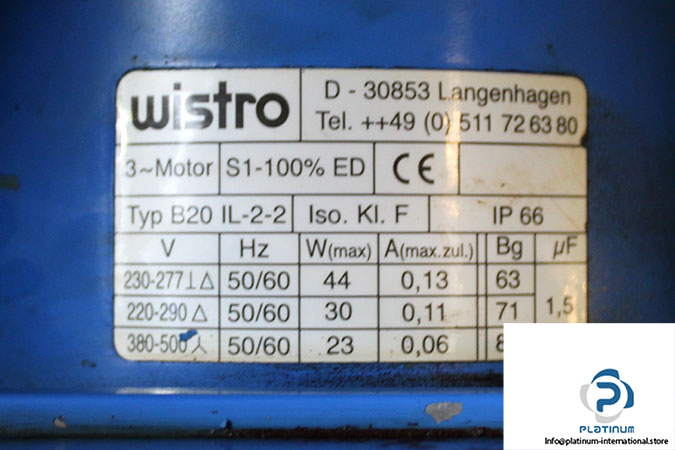

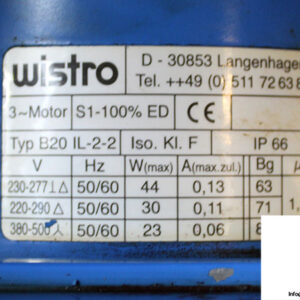

Attachment: Wistro B20 IL-2-2 Fan Motor
Manufacturer: Wistro
Type: Fan Motor
Model: B20IL-2-2
Rated Voltage at 50Hz [V]: 230-220-380
Rated Voltage at 60Hz [V]: 277-290-500
Frequency [Hz]: 50/60
Max. Power [W]: 44-30-23
Max. Current [A]: 0.13-0.11-0.06
Weight [kg]: 23,5
