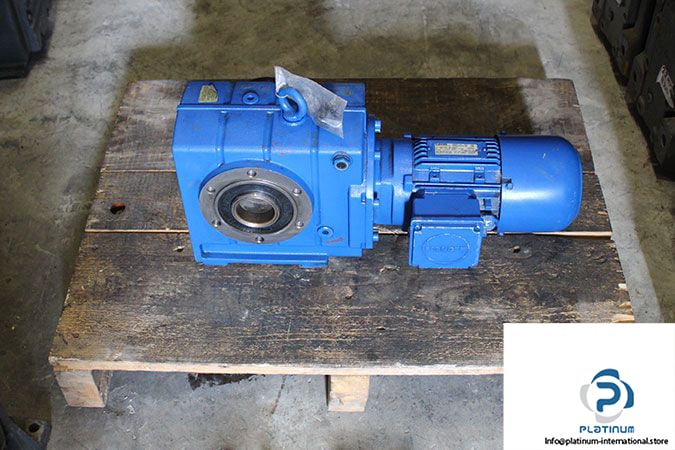

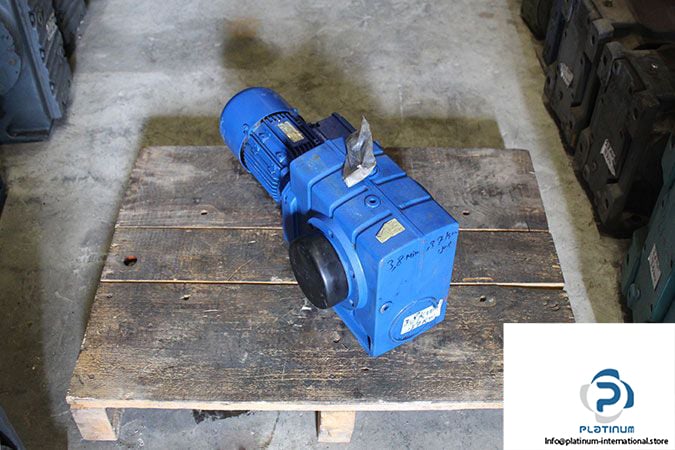

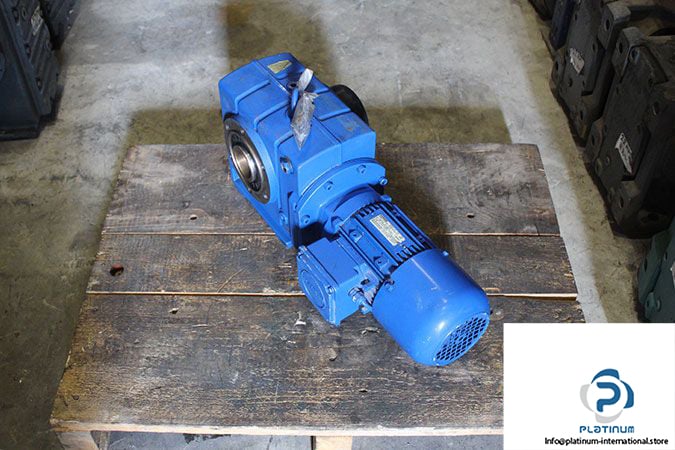

Flender CAZS68-M71M4-L4N Helical-Worm Geared Motor

Manufacturer: Flender

Type: Helical Worm Gear Motor

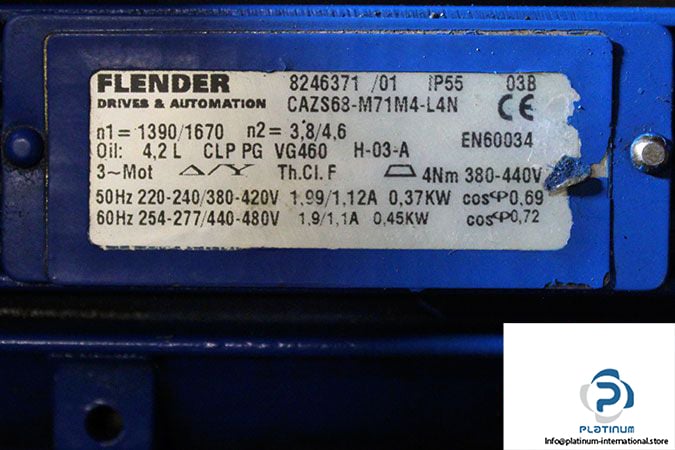

Model: CAZS68-M71M4-L4N

Speed [r/min]: 1390 / 3.8

Speed [r/min]: 1670 / 4.6

Total Ratio [i]: 364

Output Torque 50Hz [Nm]: 605

Output Torque 60Hz [Nm]: 518

Lubricant: CLP PG VG460

Lubricant Volume [I]: 4.2

Hollow Shaft: 50 mm

Design: Hollow Shaft, Shrink Disk

Flange: 150 mm

Fixing: Housing Flange

Motor Power 50 Hz [kW]: 0.37

Motor Power 60 Hz [kW]: 0.45

Motor Size: 68

Number of Pole: 4

Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-420 Star

Rated Current [A]: 1.99 / 1.12

Multi Range-Voltage 60Hz [V]: 254-277 Delta / 440-480 Star

Rated Current [B]: 1.9 / 1.1

Power Factor 50 Hz: 0,69

Power Factor 60 Hz: 0,72

Thermal Class: F

Enclosure [IP]: 55

Additional Feature Unit: Spring Loaded-Single Disk Brake, DC

Exitatio

Rated Torque[Nm]: 4

Multi Range-Voltage Brake[V]: 380 / 440

Weight [kg]: 40
