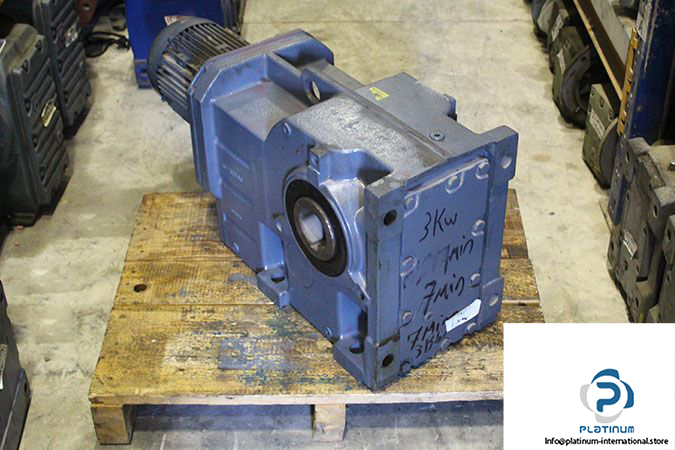

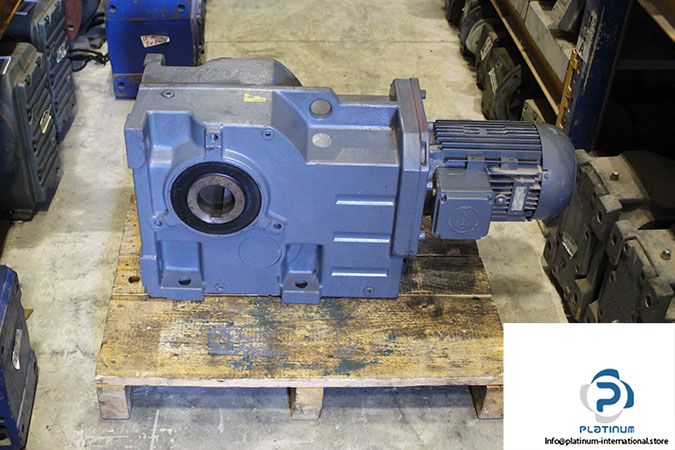

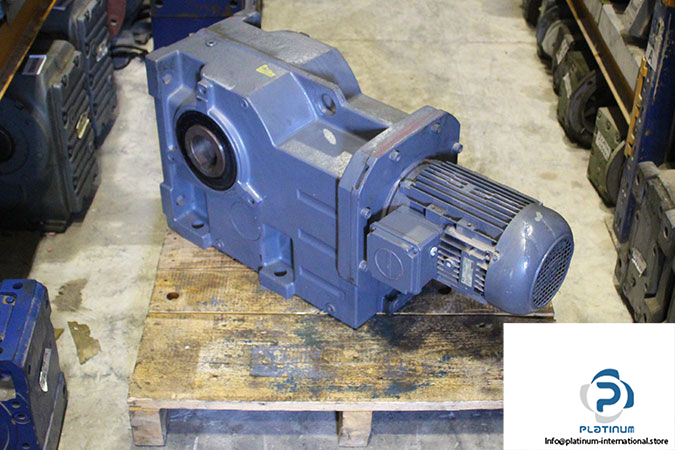

Flender KA128-M100LB4 Helical Bevel Gear Motor

Manufacturer: Flender

Type: Helical Bevel Gear Motor

Model: KA128-M100LB4

Flender KA128 Gear

Gear Type (KA): Helical Bevel Gear Motor

Gear Box Size: 128

Ratio: 204.18

Output Speed: 7 r/min

Rated Torque: 4091 Nm

Hollow Shaft Diameter: 70 mm

Lubrication: CLP VG220

Oil Quantity: 8.3 L

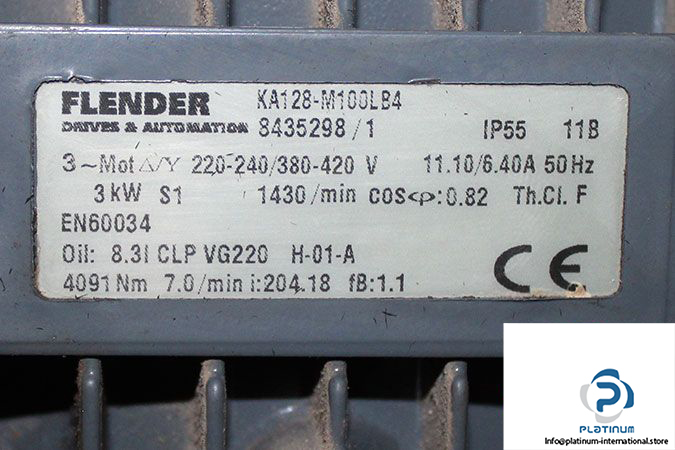

Flender M100LB4 AC Motor

Type Motor (M): Three Phase Motor

Motor Size: 100L

No. of Pole: 4

Nominal Voltage (Delta): 220…240 V

Nominal Voltage (Star): 380…420 V

Rated Current (Delta): 11.1 A

Rated Current (Star): 6.4 A

Rated Power: 3 kW

Output Speed: 1430 r/min

Frequency: 50 Hz

Power Factor: 0.82

Operating Mode: S1

Thermal Class: F

Degree of Protection: IP55

Gross Weight: 200 kg
