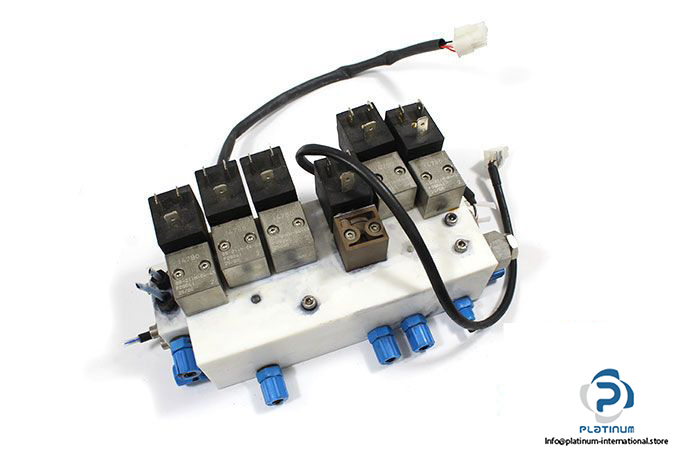

Fluid Automation Systems 14780 Solenoid Valve

Manufacturer: FLUID AUTOMATION SYSTEMS

Type: SOLENOID VALVES WITH PLATE

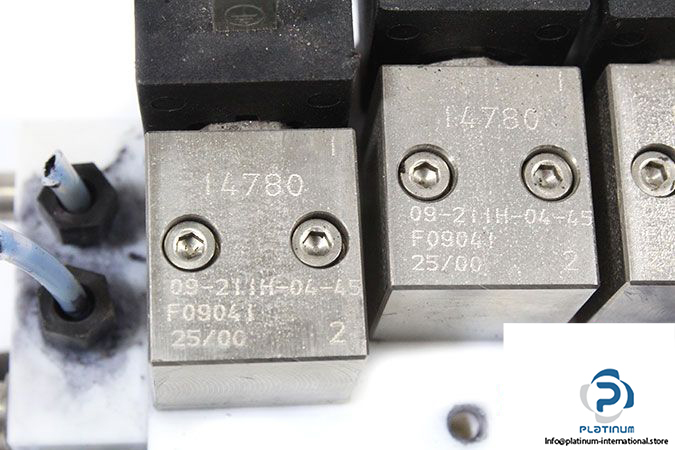

Part No.: 14780

Model: 09-211H-04-H5 / 09-211H-04-45

Application: Videojet 9550 spare parts

Material: PPS

Voltage: 24 V DC

Power: 3.8 W

Power at 50 Hz: 5 W

Power at 60 Hz: 4 W

Protection Class: IP 65

Electrical connection: DIN 43650 spades 2-poles and ground

Coil fixing: M8 x 0,75 mm nut

Voltage tolerance: -10% … 15%

Frequency: 50 – 60 Hz

Temperature: -20 … 120 °C

Weight: 1.80 kg
