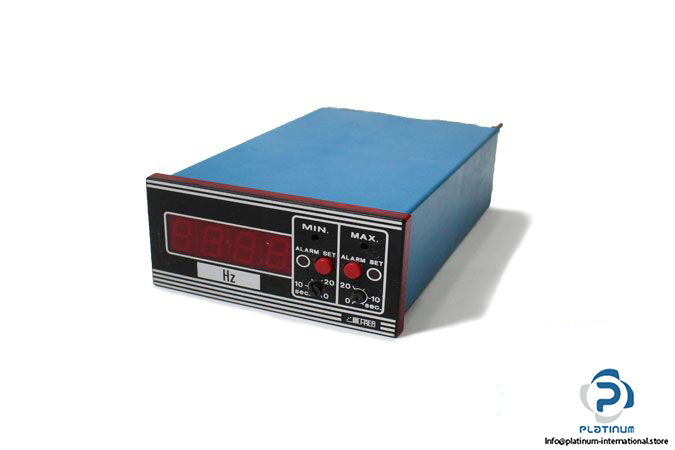

Frer X98FPXXXXH Digital Meter With Alarms

Manufacturer: FRER

Type: Digital Meter with Alarms

Model: X98FPXXXXH

Power Supply: 230 VAC ±10% (6 VA)

On Request: 24 – 48 – 115 – 400 VAC ±10% (6 VA) 24 – 48 – 110V – 220 VDC 10 +20% (6W)

Measure and Set-Point: ±1999

Red LED Display: h = 14 mm

Bidirectional Input (d.c.): si/yes

Accuracy (Class): 0.5

Alarm Indication By: LED

Delay Action: 0.1/20 sec

Relay Contact Rating: 5A – 230 V

Dielectric Strength: 2kV-50 Hz x 60s

Continuous Overload: 2 ln – 1.2 Vn

Istantaneous Overload: 10 ln – 2 Vn

Operating Temperature: -10 … +50 °C

Dimensions: 100 X 110 X 70 mm

Weight: 0.5 Kg
