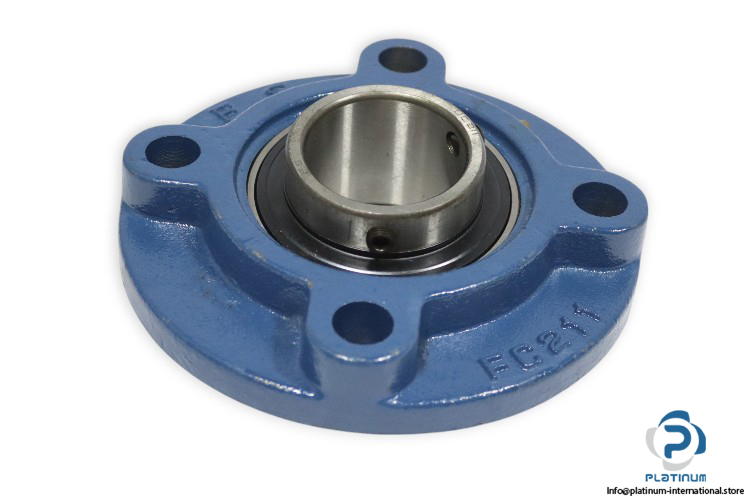

FS UCFC211 Round Flange Ball Bearing Unit
FS UCFC 211 Round Flange Ball Bearing Unit with 55 mm bore diameter, 70 mm outside diameter, and M10 bolt size. Ideal for industrial applications.
FS UCFC 211 Round Flange Ball Bearing Unit
The FS UCFC 211 is a premium-quality round flange ball bearing unit designed for high-performance industrial applications. This unit features a durable housing and precision-crafted bearings, ensuring reliability and long-lasting performance. With a bore diameter of 55 mm and a sturdy M10 bolt size, it is an ideal choice for various mechanical and industrial systems requiring accurate and robust rotation support.
🔧 Technical Specifications:
- Manufacturer: FS
- Type: Round Flange Ball Bearing Unit
- Model: UCFC 211
- Part No.: UC211
- Housing No.: FC211
- Bore Diameter (d): 55 mm
- Outside Diameter (L): 70 mm
- Distance Between Attachment Bolts: 106.1 mm
- Pitch Diameter of Attachment Bolts: 150 mm
- Length of Attachment Bolt Hole: 19 mm
- Width of Inner Ring: 55.6 mm
- Overall Width (A): 46.4 mm
- Bolt Size: M10
The UCFC 211 flange ball bearing unit combines precision engineering with superior materials, making it a reliable choice for demanding applications. Its compact and efficient design ensures smooth operation and ease of installation.
