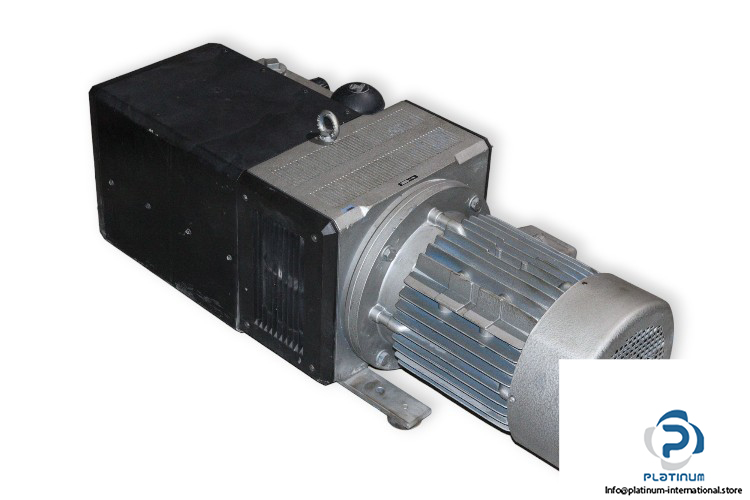

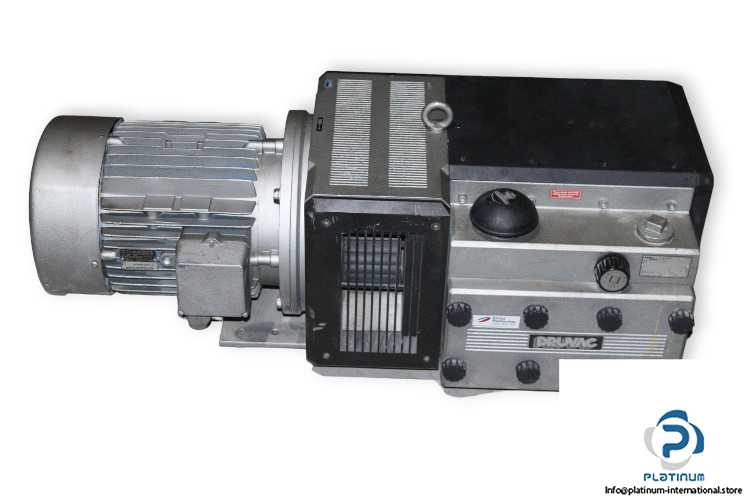

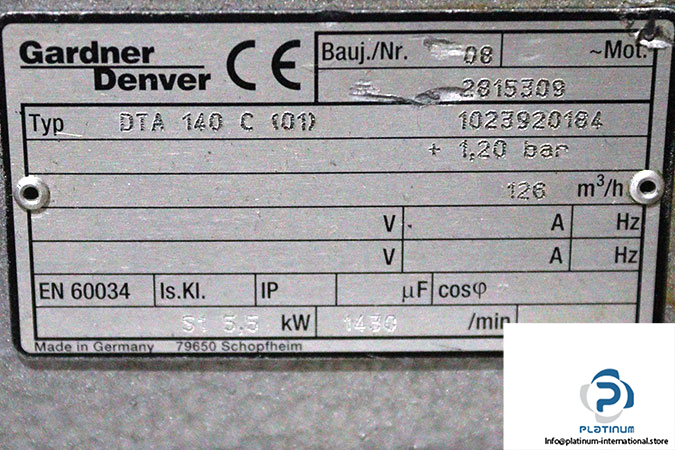

Gardner Denver DTA 140 C (01) Vacuum Pump

Manufacturer: Gardner Denver
Type: Vacuum Pump
Model: DTA 140 C (01)

Vacuum Pressure [bar]: + 1.2
Rated Speed [rpm]: 1430
Rated Power [kW]: 5.5
Rated Flow Rate [m³/h]: 126
Duty: S1

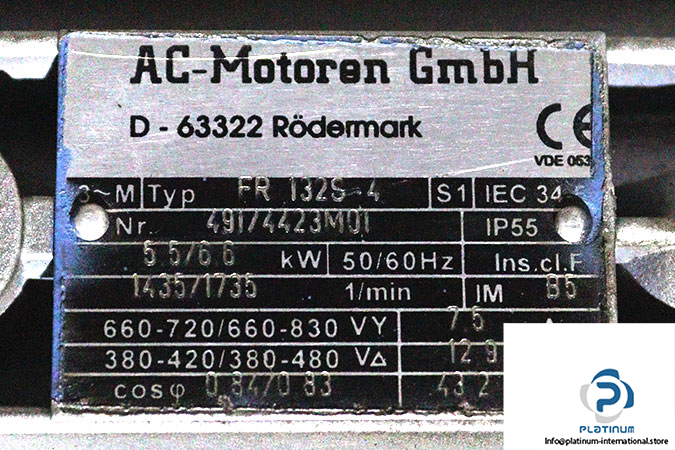

Attachment: AC-Motoren GmbH FR 132S-4 AC 3 Phase E-Motor
Manufacturer: AC-Motoren GmbH
Type: 3 Phase E-Motor
Model: FR132S-4
Rated Voltage at 50Hz [V]: 660-720/660-830
Rated Voltage at 60Hz [V]: 380-420/380-480
Rated Current [A]: 7.5/12.9
Rated Power [kW]: 5.5/6.6
Rated Speed [rpm]: 1435/1735
Frequency [Hz]: 50/60
Power Factor: 0.84/0.83
Duty: S1
Thermal Class: F
Mounting Positions [IM]: B5
Protection Class [IP]: 55
