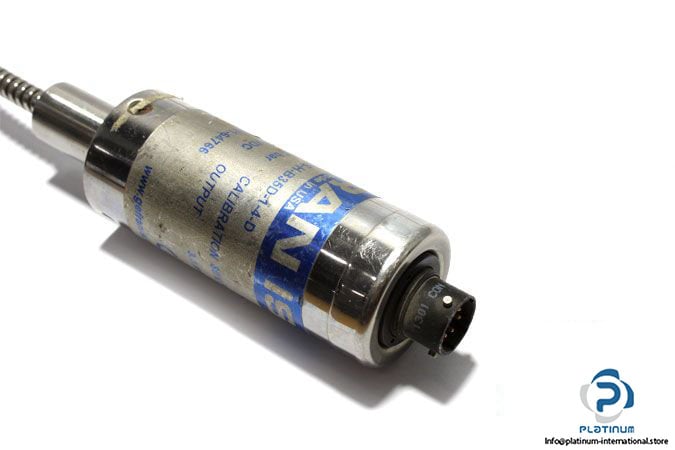

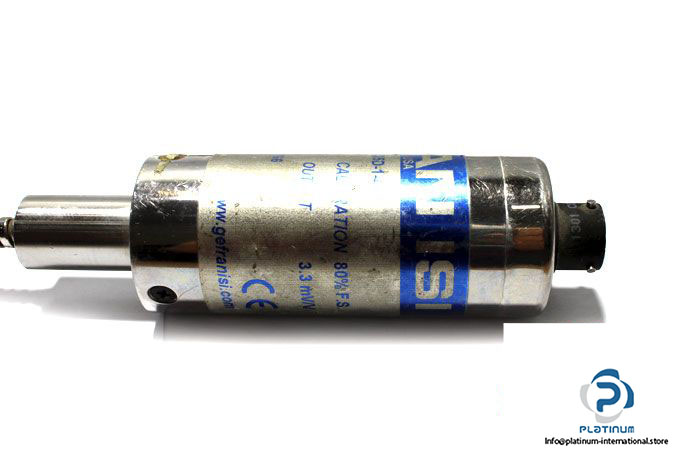

Gefran W32-6-H-B35D-1-4-D Melt Pressure Transducer

Manufacturer: GEFRAN

Type: MELT PRESSURE TRANSDUCER

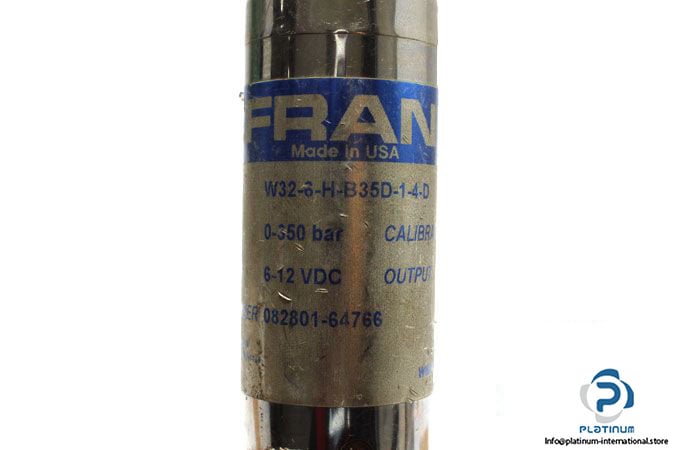

Model: W32-6-H-B35D-1-4-D

Oil Filled Melt Pressure Transducer for use in high temperature environments.

Pressure Range: 0 – 350 bar

Supply Voltage: 6 – 12 VDC

Calibration Signal: 80% F.S.

Output Signal: 3.33 mV/v

Maximum housing temperature range: -30 … 120 °C

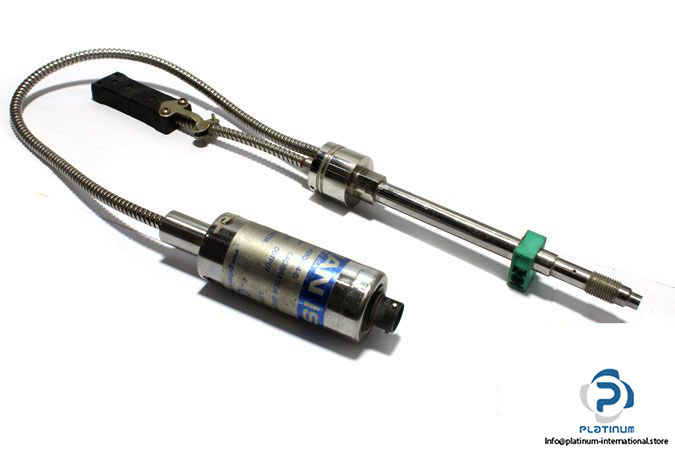

Configuration: Flexible with Thermocouple

Thermocouple: STD: type “J” (isolated junction)

Protection degree (with 6-pin mating connector): IP65

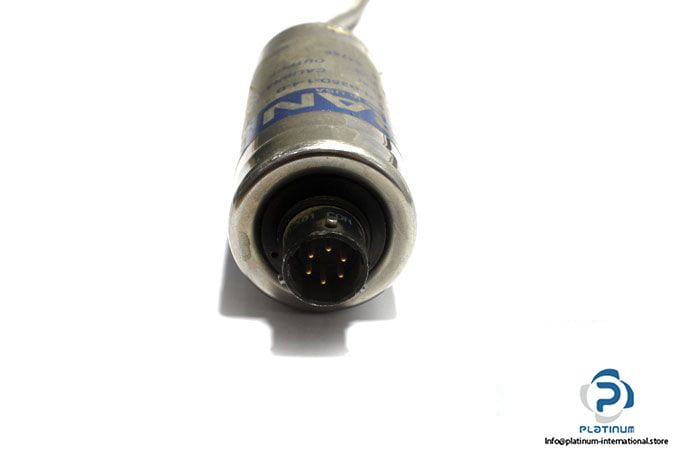

Connector: 6/6 pin

Accuracy Class: 0.5% FSO

Thread: 1/2 – 20 UNF

Rigid stem length: 153 mm

Flexible Length: 457 mm
