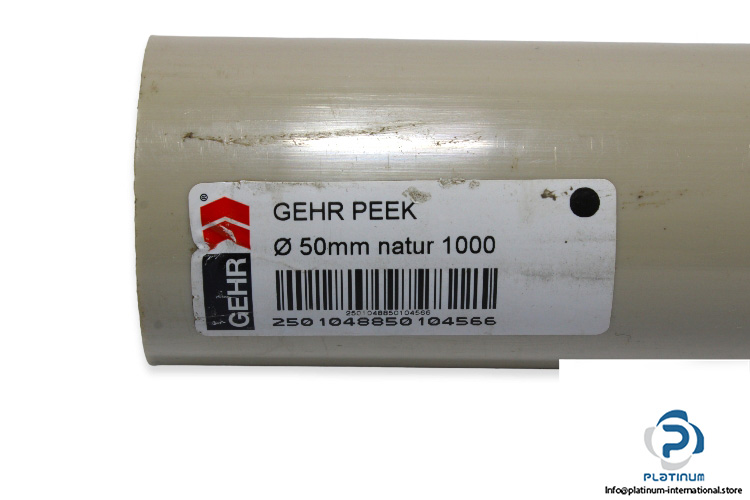

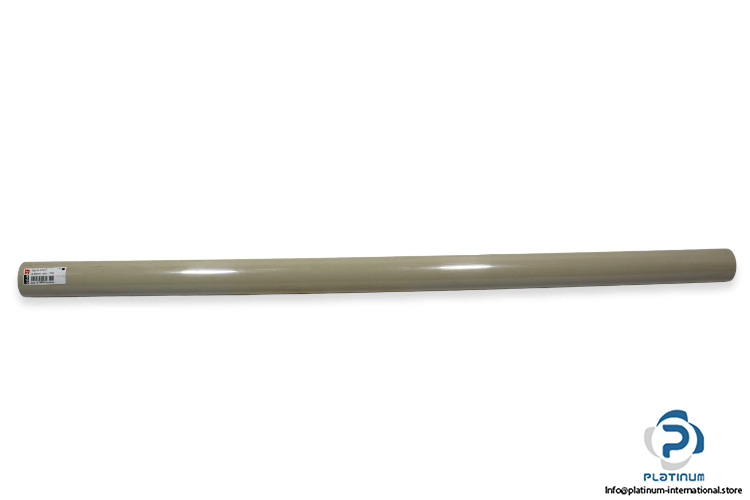

Peek Round BAR 50 MM

Type: Peek Round Bar



Dimensions:

Outer diameter D: 50 mm

Length: 1000 mm

Color: Natural

Material: Polyether ether ketone (PEEK)

Physical Properties:

Specific gravity: 1.31 g/cm³

Maximum permissible service temp: 260°C, 500°F

Lower permissible service temp: –40°C, -40°F

Water Absorption (saturation): 0.4 %

Humidity Absorption (saturation): 0.07 %

Mechanical Properties:

Tensile strength at yield: 13900 psi

Tensile strength at break: 26800 psi

Tensile Modulus: 522000 psi

Elongation at break: 45%

Rockwell hardness: R-Scale

Flexural strength: 22000 psi

Flexural Modulus: 566000 psi

Thermal Properties:

Heat deflection temperature HDT/A (264 psi): 162.2°C, 324°F

Glass transition temperature: 150°C, 302°F

Melting temperature: 340°C, 644°F

Weight: 2.78 kg/m
