General Monitors FL3112 Flame Detector
New
Available on request
600,00$
FLAME DETECTOR
High-performance FL3112 flame detector with fast IR response, 120° field of view, stainless steel housing, and sub-second reaction time for industrial fire protection appli24v4.35AngleCableDetectorFastFireFL3112FlameGeneralIndustrialIRM20MicronMonitorsresponseSensorstainlessSteelwide
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

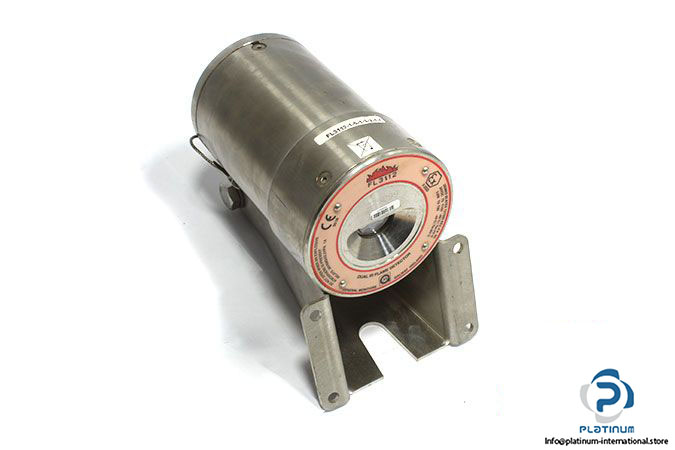

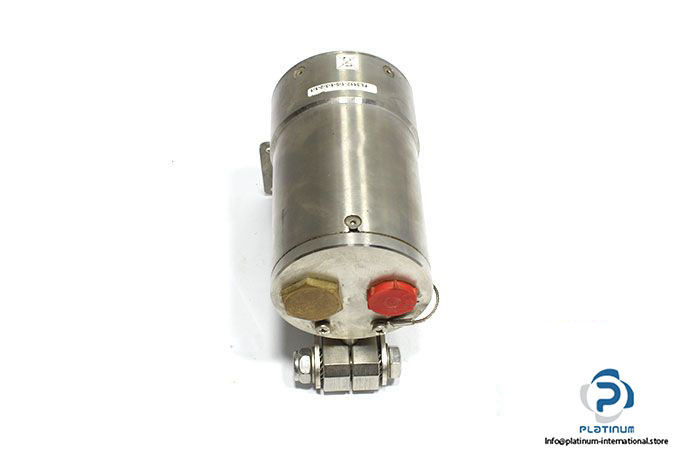

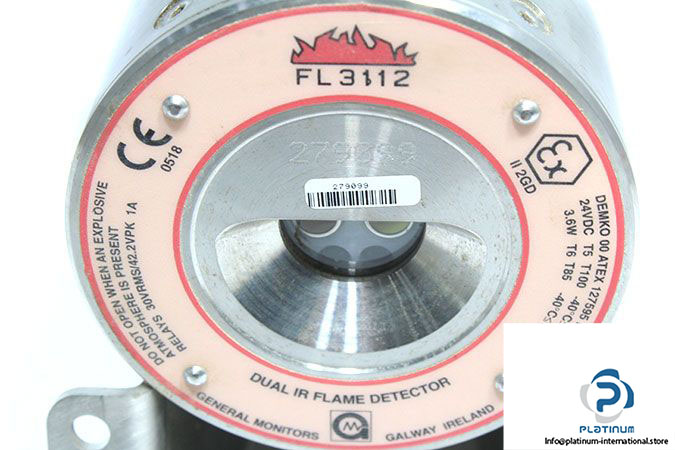

GENERAL MONITORS FL3112 FLAME DETECTOR
The FL3112 flame detector from General Monitors offers rapid, reliable infrared detection for industrial fire safety systems. Built in a rugged stainless steel housing, it delivers a wide field of view and high sensitivity with sub-second response times, making it ideal for hazardous and high-risk environments.
Manufacturer: GENERAL MONITORS
Type: Flame Detector
Model: FL3112
| Input Power | 20 to 36 VDC, 24 VDC @ 150 mA max |
| IR Centre Wavelength | 4.35 microns |
| Horizontal & Vertical Field of View | 120° |
| Response Time | < 2 seconds @ 50 ft |
| Minimum Sensor Response Time | < 500 ms |
| Relay Contact Rating | 1A 30 VDC resistive |
| Housing | Stainless Steel |
| Diameter | 84 mm |
| Length | 136 mm |
| Cable Entries | M20, 2 ports |
