MAC PR92C-D0AA Sandwich Pressure Regulator
Used
Available on request
188,88$
Sandwich Pressure Regulator
The MAC PR92C-D0AA Sandwich Pressure Regulator is ideal for controlling compressed air and inert gases. With a 0 to 120 PSI pressure range, 40 micron filtration, and 0.8 Cv flow, it includes a 24 VAC solenoid coil for easy integration.01202440AircoilCompressedfiltrationGasesInertMACMicronPneumaticPR92CPressurePSIregulatorSandwichSeriessolenoidtoVAC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

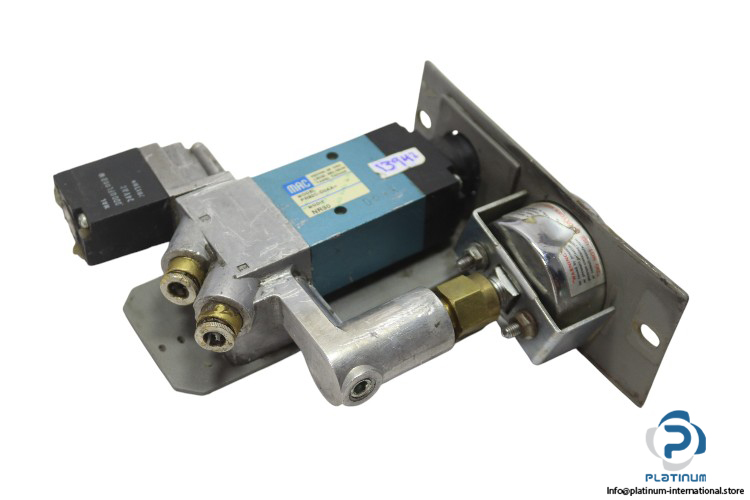

MAC PR92C-D0AA Sandwich Pressure Regulator
The MAC PR92C-D0AA Sandwich Pressure Regulator is designed for precise control of compressed air and inert gases. With a wide pressure and regulating range of 0 to 120 PSI, it ensures reliable performance in industrial applications. This model features a filtration of 40 microns and a flow rate of 0.8 Cv, with a built-in solenoid coil for easy integration into pneumatic systems.
Manufacturer: MAC
Type: Sandwich Pressure Regulator
Series: PR92C

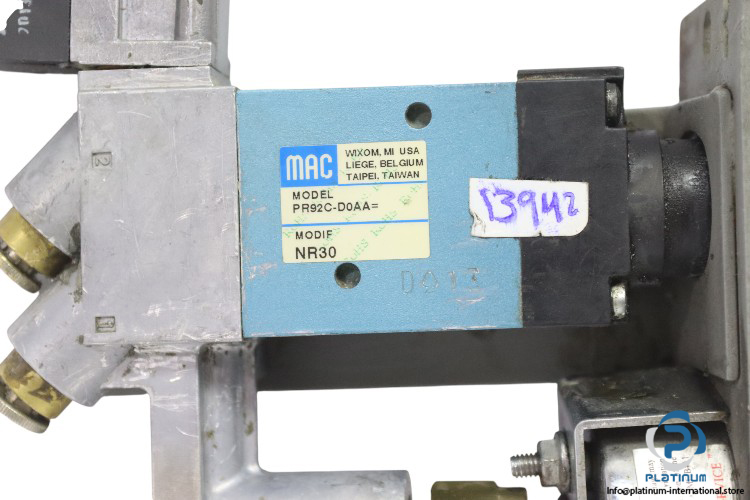

Model: PR92C-D0AA
Ref No: NR30
Technical Data:
- Fluid: Compressed air, inert gases
- Pressure Range: 0 to 120 PSI
- Regulating Range: 0 to 120 PSI
- Lubrication: Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
- Filtration: 40 micron
- Temperature Range: 0°F to 120°F (-18°C to +50°C)
- Flow: 0.8 Cv

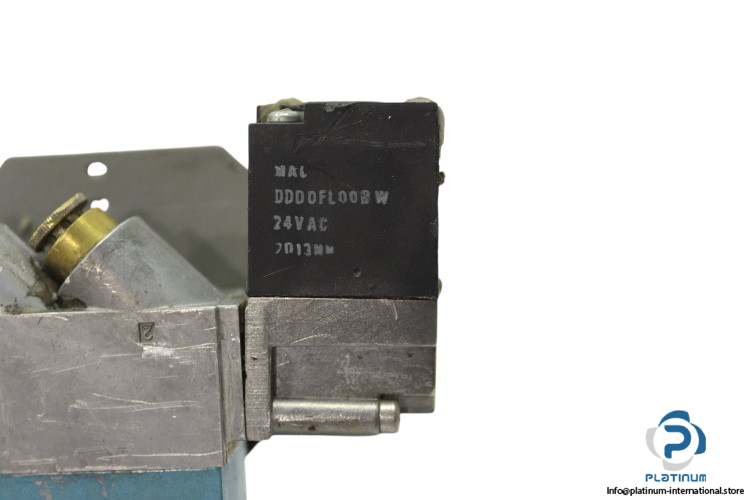

- Attached with: MAC DDD0FL00BW Solenoid Coil
- Voltage: 24 VAC
