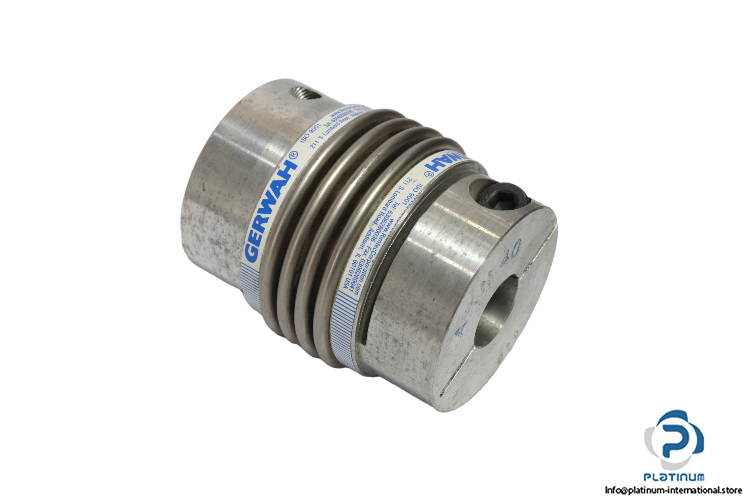

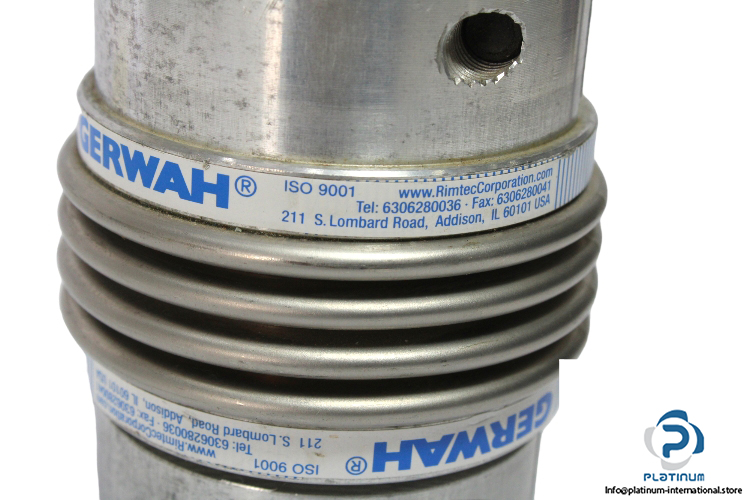

Name: GERWAH AKN60-19-20 BELLOWS COUPLING
SKU: 1002403
Availability: LimitedAvailability

Manufacturer: GERWAH

Type: Bellows Coupling

Model: AKN60-19-20

Art No.: N/A

MNR.: N/A

Size: 60

Material: Aluminum

Bore diameter d1/ d2: 19 mm/ 20 mm

Outer diameter: 66 mm

Total length: 79 mm

Torque: 60 Nm

Torsional stiffness: 75000 Nm/rad

Radial spring stiffness: 1100 N/mm

Axial spring stiffness: 90 N/mm

Shaft Fastening Method: Clamping hubs

Specification	Value
Weight	0,44 kg
Condition	Used
Part No.	N/A
Shelf No.	230308
Size	60
Material	Aluminum
Bore Diameter d1/d2 [mm]	19 / 20
Outer Diameter [mm]	66
Torque [Nm]	60
Torsional Stiffness [Nm/rad]	75000
Radial Spring Stiffness [N/mm]	1100
Axial Spring Stiffness [N/mm]	90
Shaft Fastening Method	Clamping Hubs

Price	On Request
Stock	1 In stock
Category	Couplings
Condition	Used
SKU	1002403

Weight	0,44 kg
Condition	Used
Part No.	N/A
Shelf No.	230308
Size	60
Material	Aluminum
Bore Diameter d1/d2 [mm]	19 / 20
Outer Diameter [mm]	66
Torque [Nm]	60
Torsional Stiffness [Nm/rad]	75000
Radial Spring Stiffness [N/mm]	1100
Axial Spring Stiffness [N/mm]	90
Shaft Fastening Method	Clamping Hubs

Gerwah AKN60-19-20 Bellows Coupling
