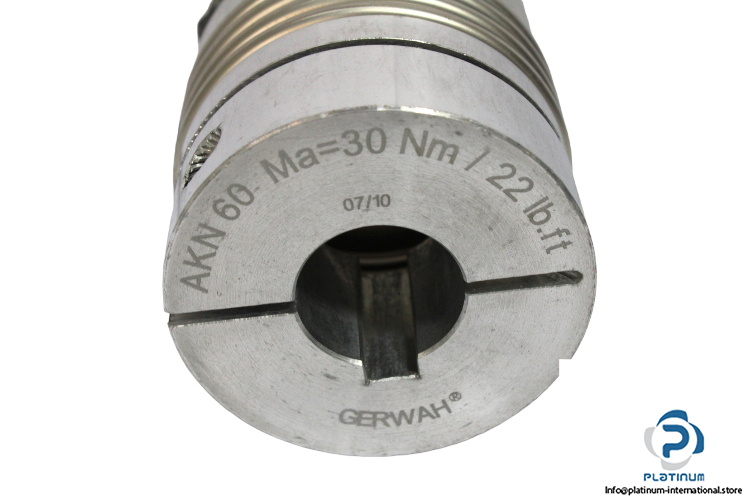

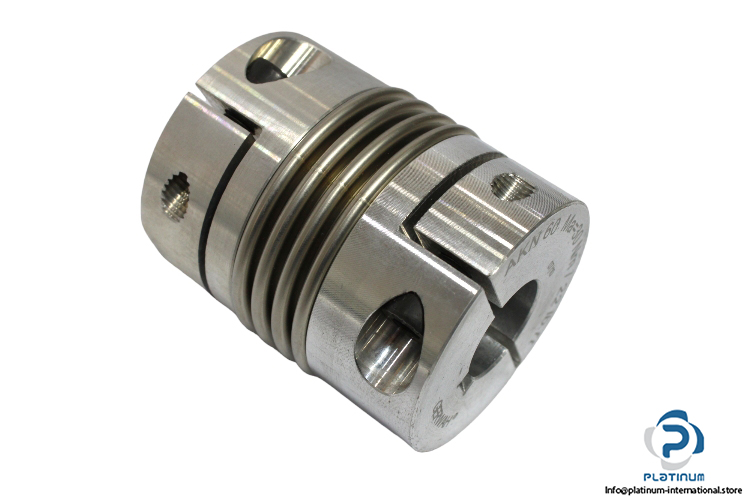

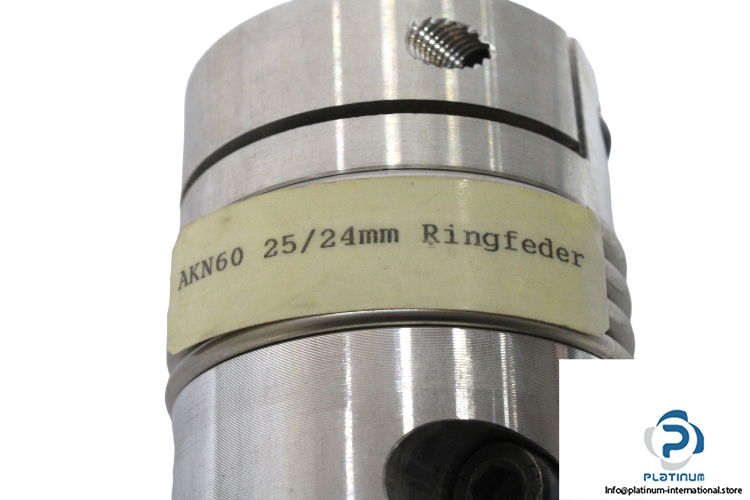

Name: GERWAH AKN60-24-25 BELLOWS COUPLING
SKU: 1002404
Availability: LimitedAvailability

Manufacturer: GERWAH

Type: Bellows Coupling

Model: AKN60-24-25

Art No.: N/A

MNR.: N/A

Size: 60

Material: Aluminum

Bore diameter d1/ d2: 24 mm/ 25 mm

Outer diameter: 64 mm

Total length: 79 mm

Torque: 75 Nm

Torsional stiffness: 75000 Nm/rad

Radial spring stiffness: 1100 N/mm

Axial spring stiffness: 90 N/mm

Shaft Fastening Method: Clamping hubs with keyway

Specification	Value
Weight	0,46 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	60
Material	Aluminum
Bore Diameter d1/d2 [mm]	24 / 25
Outer Diameter [mm]	64
Torque [Nm]	75
Torsional Stiffness [Nm/rad]	75000
Radial Spring Stiffness [N/mm]	1100
Axial Spring Stiffness [N/mm]	90
Shaft Fastening Method	Clamping Hubs with Keyway

Price	On Request
Stock	1 In stock
Category	Couplings
Condition	New
SKU	1002404

Weight	0,46 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	60
Material	Aluminum
Bore Diameter d1/d2 [mm]	24 / 25
Outer Diameter [mm]	64
Torque [Nm]	75
Torsional Stiffness [Nm/rad]	75000
Radial Spring Stiffness [N/mm]	1100
Axial Spring Stiffness [N/mm]	90
Shaft Fastening Method	Clamping Hubs with Keyway

Gerwah AKN60-24-25 Bellows Coupling
