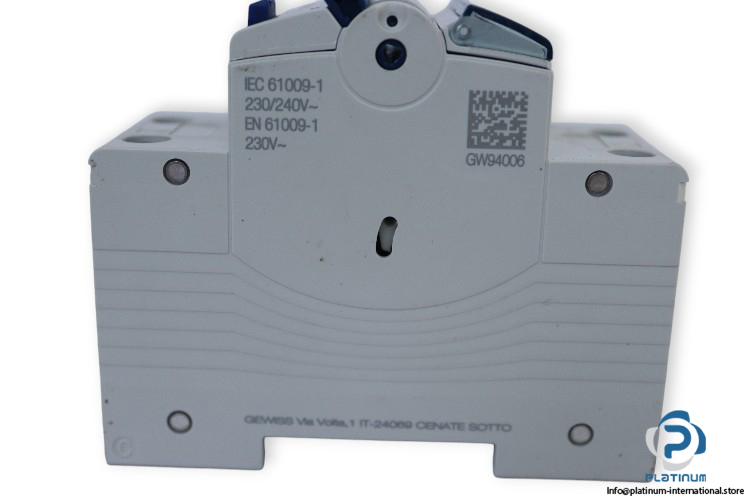

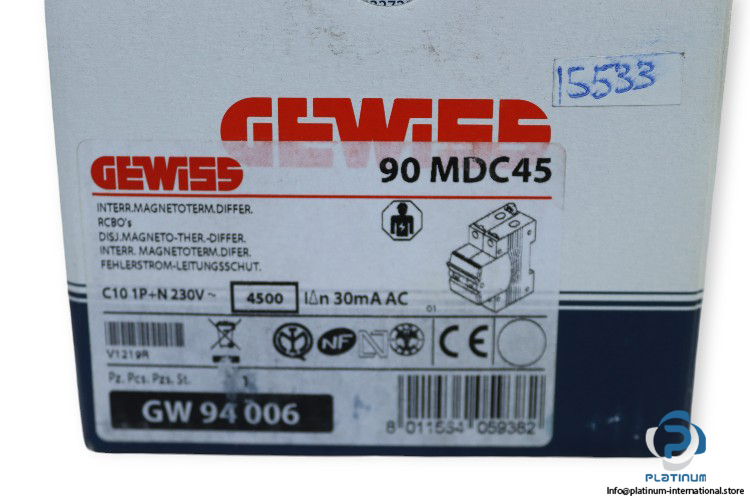

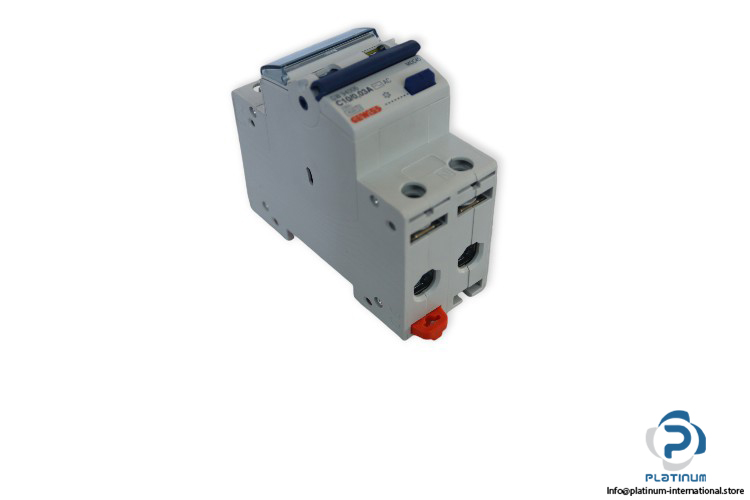

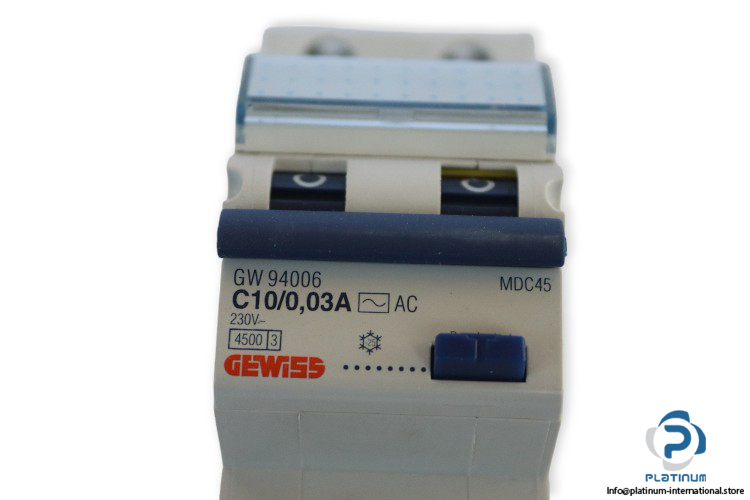

Gewiss GW 94 006 Residual Current Circuit Breaker

Manufacturer: GEWISS
Type: Residual Current Circuit Breaker (RCCB)
Model: GW94006
Code: 90MDC45

Rated Operational Voltage: 230 V AC
Rated Current: 10 A
Rated Residual Operating Current: 30 mA
Rated Insulation Voltage (Ui): 500 V AC
Rated Impulse Voltage (Uimp): 4 kV
Frequency: 50 … 60 Hz
Modules No.: 2
Poles No.: 2-Pole (1+N)
Curve: C
Protection Class: IP20
Operating Temperature: -25 … 60 °C
Dimensions: 96 x 36 x 71.9 mm
