GMN L 130X150X15 Labyrinth Seal
New
In stock3 unitsReady to ship
Labyrinth Seal
GMN labyrinth seal L130X150X15 designed for high-speed applications, featuring steel and aluminum construction and wide temperature resistance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

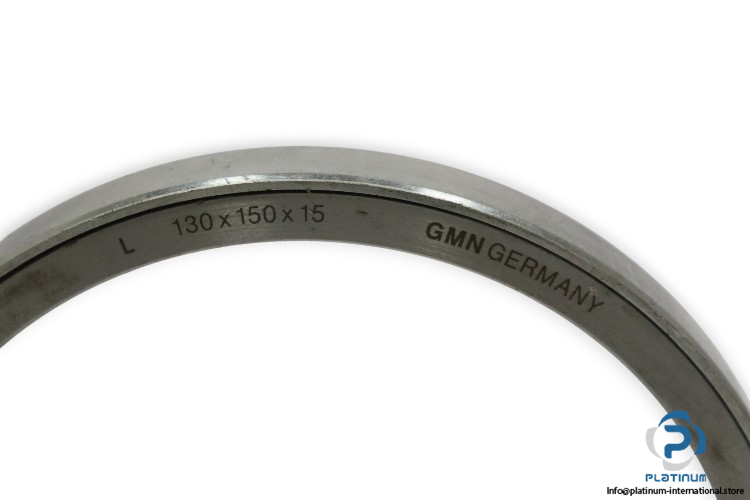

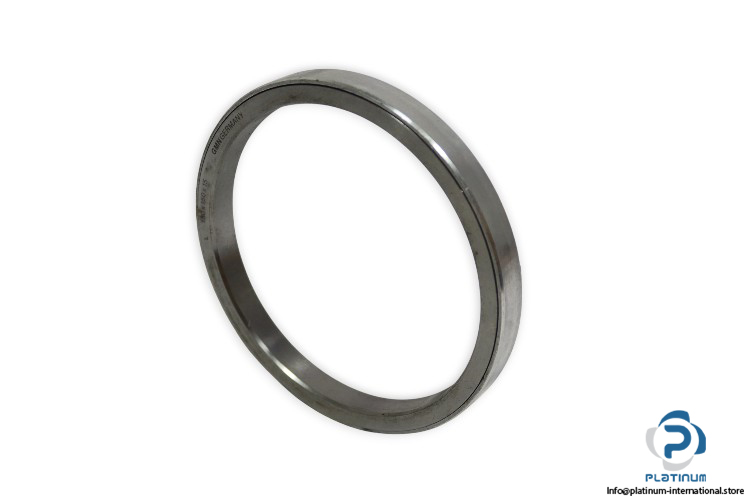

GMN L130X150X15 Labyrinth Seal
The GMN L130X150X15 labyrinth seal is a high-performance sealing solution designed for high-speed rotating applications. It provides non-contact sealing with excellent resistance to temperature variation and rotational stress.
Manufacturer: GMN
Type: Labyrinth Seal
Model: L130X150X15
Series: L
| Bore Diameter (d) | 130 mm |
| Outside Diameter (D) | 150 mm |
| Width (B) | 15 mm |
| Gap Diameter | 145 mm |
| Maximum Speed | 9,200 rpm |
| Inner Ring Material | Steel |
| Outer Ring Material | Aluminum |
| Shaft Tolerance | h6 |
| Temperature Range | -40 to 200 °C |
