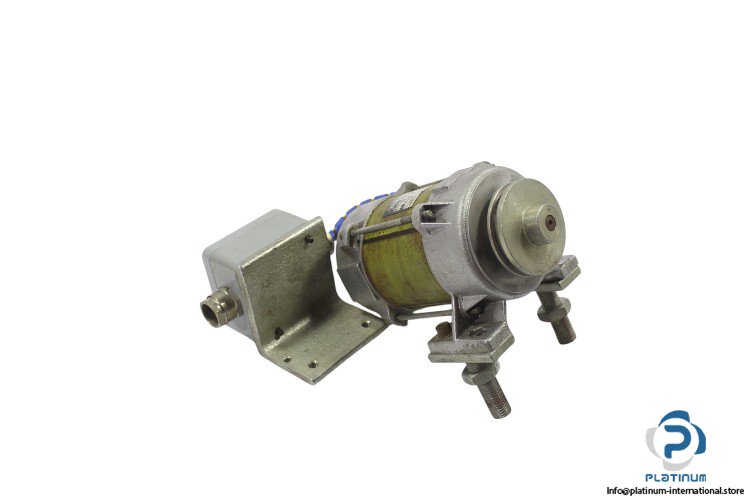

Groschopp ED1 70-40 3 Phase Motor

Groschopp ED1 70-40 3 Phase Motor

The Groschopp ED1 70-40 3 Phase Motor is designed for high performance in both 3-phase and 1-phase operations. With multiple voltage and power options, it provides efficient and reliable operation for a wide range of industrial applications.

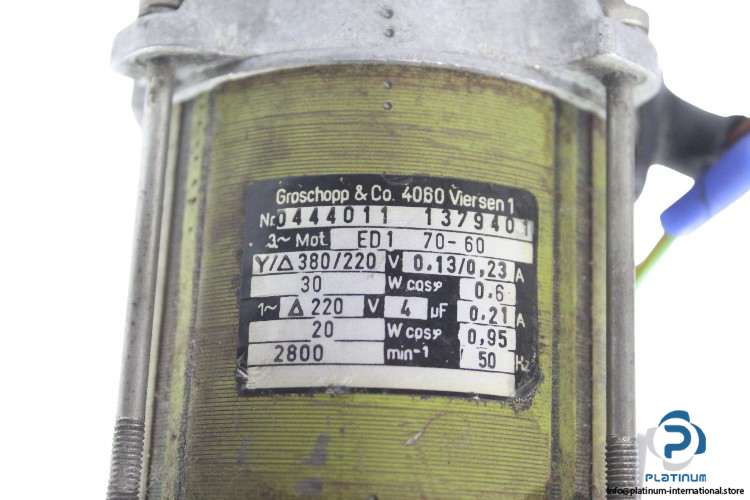

Manufacturer: Groschopp

Type: 3 Phase Motor

Model: ED1 70-40

Part No.: 0444011

Reference No.: 1379401

Technical Information (3-Phase Operation):

• Rated Voltage: 380 / 220 V
• Rated Power: 30 W
• Rated Current: 0.13 / 0.23 A
• Cos phi: 0.6

Technical Information (1-Phase Operation):

• Rated Voltage: 220 V
• Rated Frequency: 50 Hz
• Rated Power: 20 W
• Rated Current: 0.21 A
• Cos phi: 0.95

Additional Information:

• Rated Speed: 2800 RPM
• Capacity: 4 micro-farads
