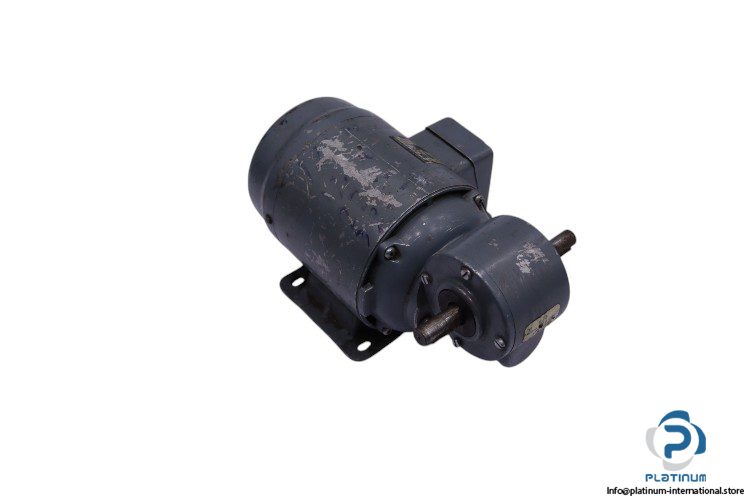

Groschopp MDM 100-70 / E3 Gear Motor

GROSCHOPP MDM 100-70 Gear Motor

The GROSCHOPP MDM 100-70 Gear Motor is a high-efficiency motor designed for industrial applications requiring precision, durability, and reliable power transmission. This gear motor supports both 3-phase and 1-phase operation, making it versatile for various configurations. With an attached E 3 Gearbox and a 7:1 ratio, it delivers a maximum torque of 300 Ncm, ensuring optimal performance in demanding environments.

• Manufacturer: GROSCHOPP
• Type: Gear Motor
• Model: MDM 100-70

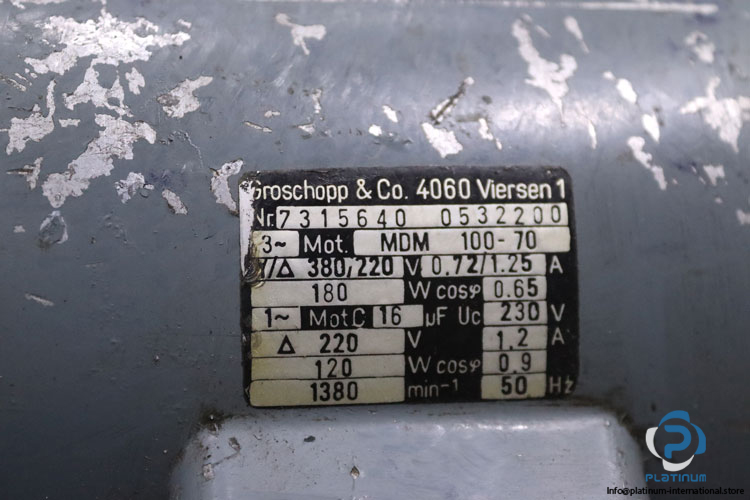

• Part No.: 7315640 0532200

Technical Specifications

3-Phase Operation

• Rated Voltage: 380 / 220 V
• Rated Power: 180 W
• Rated Current: 0.72 / 1.25 A
• Cos phi: 0.65

1-Phase Operation

• Rated Voltage: 220 V
• Rated Frequency: 50 Hz
• Rated Power: 120 W
• Rated Current: 1.2 A
• Cos phi: 0.9

General Specifications

• Rated Speed: 1380 RPM

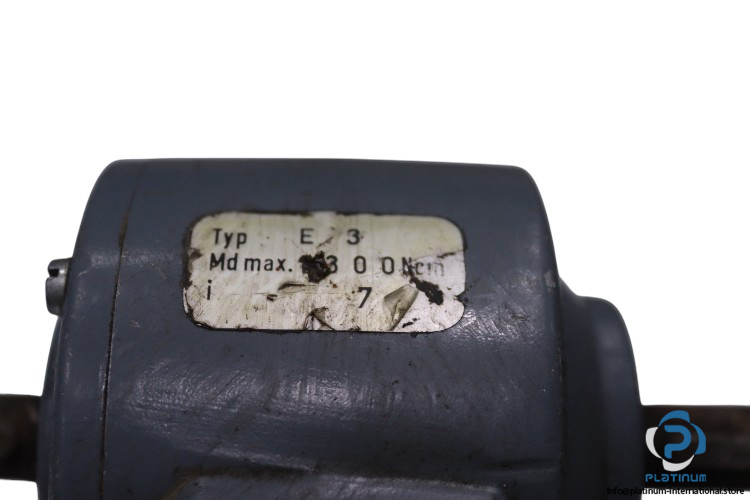

• Attached with: E 3 Gearbox
• Ratio: 7
• Max Torque: 300 Ncm
