Grundfos CRI1-30 A-CA-A-E-Hqqe Vertical Multistage Centrifugal Pump
Used
In stock1 unitReady to ship

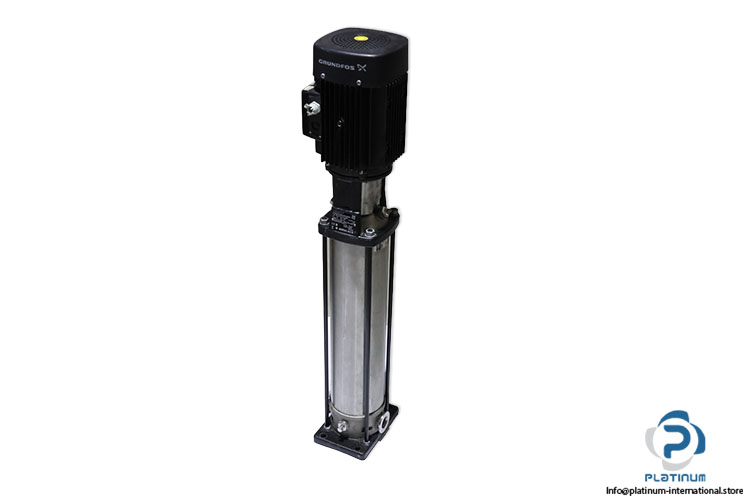

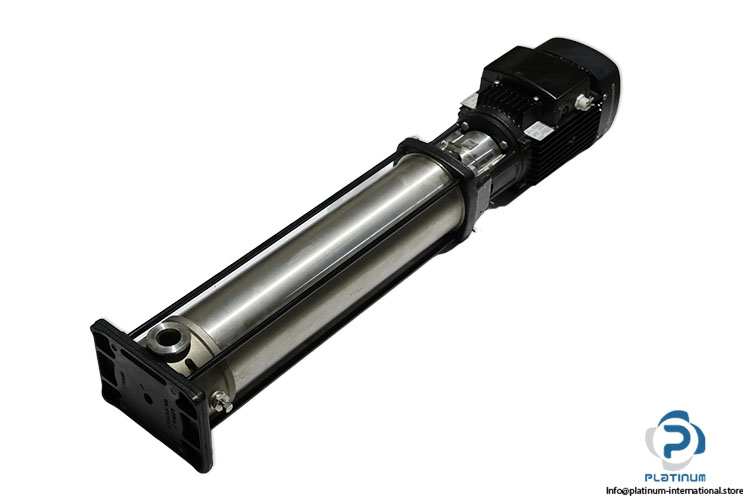

Vertical Multistage Centrifugal Pump The Grundfos CRI1-30 A-CA-A-E-HQQE is a vertical multistage centrifugal pump featuring a 1.5 kW three-phase motor, stainless steel construction, and high-pressure performance for industrial water handling and boosting applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

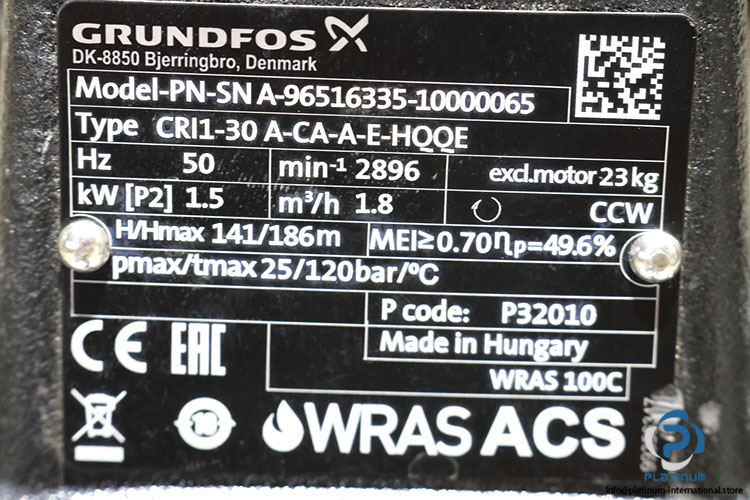

| Part No. | A-96516335-10000065 |
| P code | P32010 |
| Pump Size | 30 |
| Power | 1.5 kW |
| Direction of Rotation | CCW (counterclockwise) |
| Flow Rate (Q) | 1.8 m³/h |
| Rated Head (H) | 141 m |
| Maximum Head (Hmax) | 186 m |
| Maximum Pressure (pmax) | 25 bar at 120°C |
| Rated Speed (n) | 2896 rpm |
| Rated Frequency (f) | 50 Hz |
| Efficiency | 0.70 % |
| Connection Configuration (CA) | FlexiClamp connection style. |
| Materials (A) | Basic configuration using standard stainless steel parts |

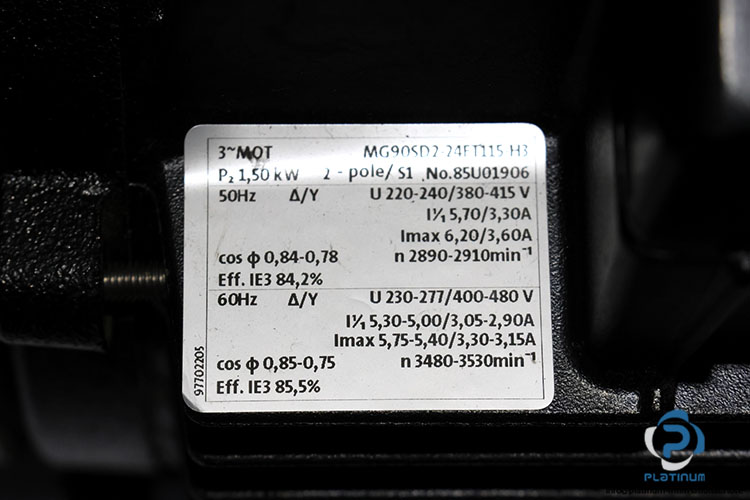

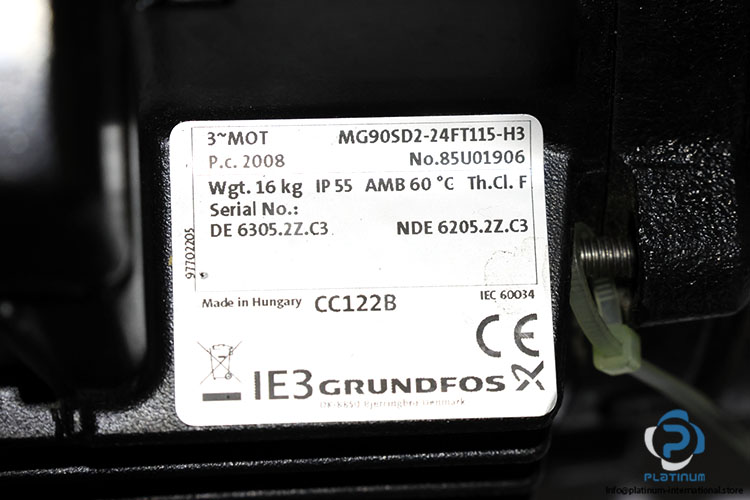

| Attached Motor | GRUNDFOS MG90SD2-24FT115-H3 3-Phase AC Motor |
| Code No. Motor | 85U01906 |
| Motor Power (P2) . Motor | 1.5 kW |
| Insulation Class. Motor | F |
| Protection Class. Motor | IP55 |
| Bearing Types DE | 7308 BE.2CS / NDE: 6206.2Z.C3 |
| Rated Voltage at 50hz | 220-240/380-415 ?/? |
| Rated Current at 50hz | 5,70/3,30 A |
| Max. Current at 50hz | 6,20/3,60 A |
| Power Factor at 50hz | 0,84-0,78 |
| Rated Speed at 50hz | 2890-2910 min"1 |
| Rated Voltage at 60hz | 230-277/400-480 V?/? |
| Rated Current at 60hz | 5,30-5,00 / 3,05-2,90A |
| Max. Current at 60hz | 5,75-5,40/3,30-3,15A |
| Power Factor at 60hz | 0,85-0,75 |
| Rated Speed at 60hz | 3480-3530 min-1 |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100530 |
| Weight | 38,1 |
