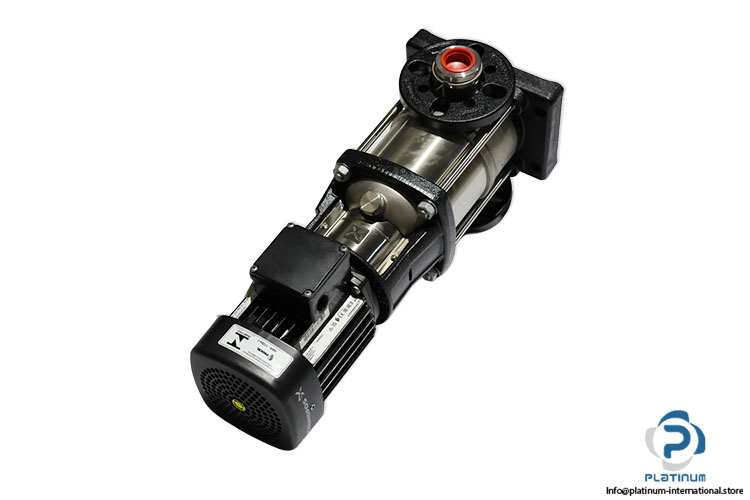

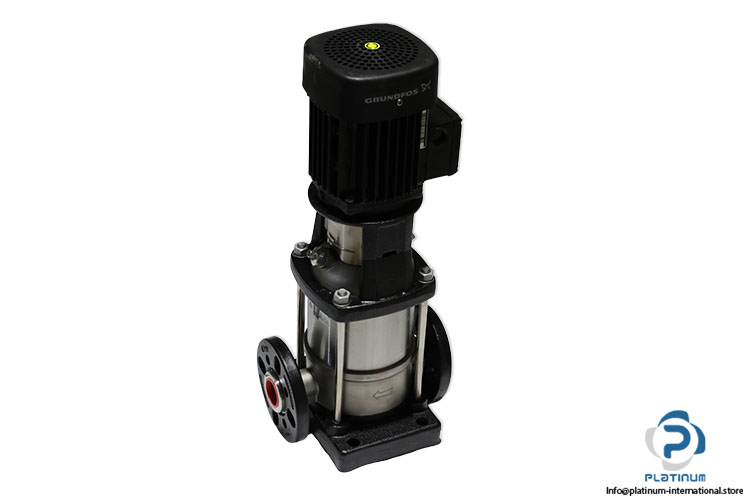

Grundfos CRN3-7 A-FGJ-A-E-Hqqe Vertical, Multistage Centrifugal Pump
New
In stock1 unitReady to ship
Vertical Multistage Centrifugal Pump GRUNDFOS CRN3-7 centrifugal pump with 3.0 m³/h rated flow, 32.8 m head, and 0.55 kW three-phase motor, designed for reliable industrial liquid transfer and pressure applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

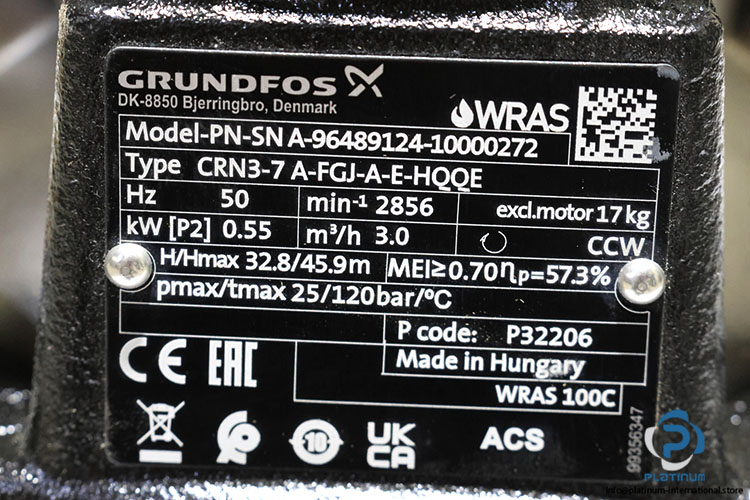

| Part No. | A-96489124 |
| Code | P32206 |
| Serial Number | 10000272 |
| Rated Flow Rate (Q) | 3.0 m³/h |
| Rated Head (H) | 32.8 meters |
| Maximum Head | 45.9 meters |
| Maximum Operating Pressure | 25 bar |
| Maximum Liquid Temperature | 120 °C |
| Rotational Speed (min?¹) | 2856 rpm |
| Frequency | 50 hz |
| Direction of Rotation | CCW (Counter-Clockwise) |
| Power Rating | 0.55 kW |
| Electrical Supply | 3-phase, 220-240V Delta / 380-415V Wye at 50 Hz |
| Enclosure Class | IP55 |

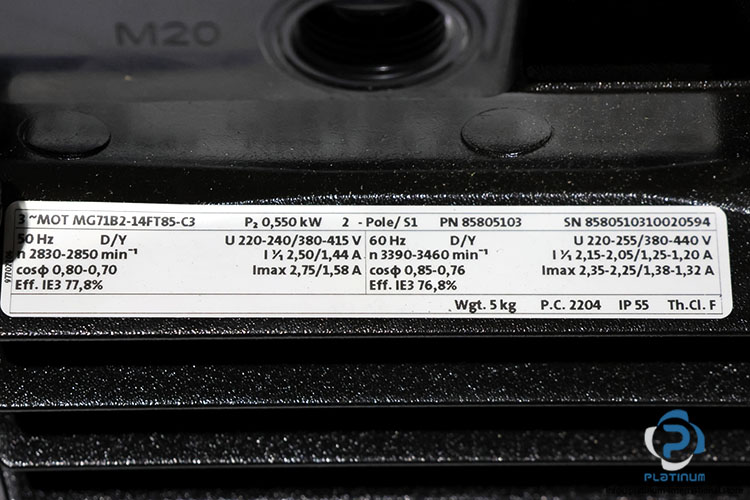

| Attachment | GRUNDFOS MG71B2-14FT85-C 3 PHASE MOTOR PUMP |
| PN | 85805103 |
| SN | 8580510310020594 |
| Frame Size | 71 |
| Power Motor (P2) [kW] | 0.55 |
| Voltage [V] at 50 hz | 220-240/380-415 Delta/Star |
| Current (I 1/1) [A] at 50 hz | 2.5/1.44 |
| Maximum Current [A] at 50 hz | 2.75/1.58 |
| Rated Speed [min-1] at 50 hz | 2830-2850 |
| Efficiency [%]at 50 hz | 0.80-0.70 |
| Voltage [V] at 60 hz | 220-255/380-440 Delta/Star |
| Current (I1/1) [A] at 60 hz | 2.15-2.05/1.25-1.20 |
| Maximum Current [A] at 60 hz | 2.35-2.25/1.38-1.32 |
| Rated Speed [min-1] at 60 hz | 3390-3460 |
| Power Factor at 60 hz | 0.85-0.76 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100592 |
| Weight | 25,22 |
