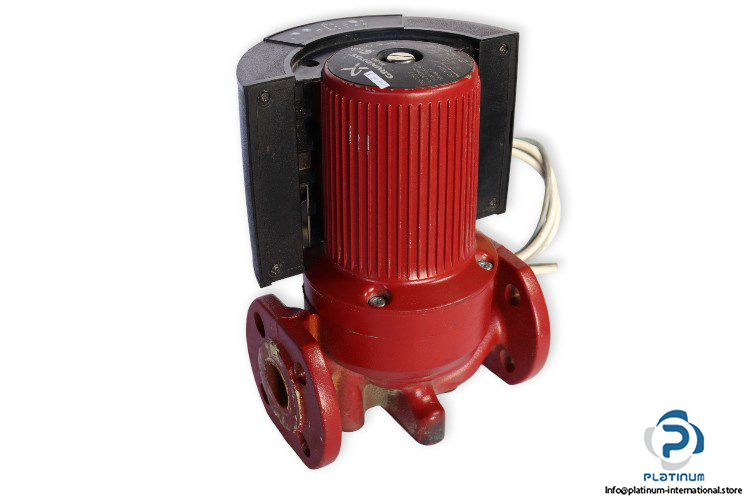

Grundfos Magna 32-120 F 220 Circulator Pump

Manufacturer: GRUNDFOS
Type: Circulator Pump
Model: F
Part No.: 96513625
MNR: MAGNA 32-120 F 220

Speed No.: 3
Rated Flow: 14.45 m³/h
Maximum head: 120 dm
Material of Pump housing: Cast iron
Material of Impeller: Stainless steel
Range of ambient temperature: 0 … 40°C
Maximum operating pressure: 10 bar
Size of connection: 36 mm
Pressure rating for connection: PN 6 / 10
Port-to-port length: 280 mm
Pumped liquid: Water
Density: 938.2 kg/m³
liquid temperature: 2 … 95°C
Maximum power input – P1: 430 W
Mains frequency: 50/60 Hz
Rated voltage:1 x 230 -240 V
Min Current consumption: 0.17 A
Max. Current consumption: 1.8 A
TF class: 110
