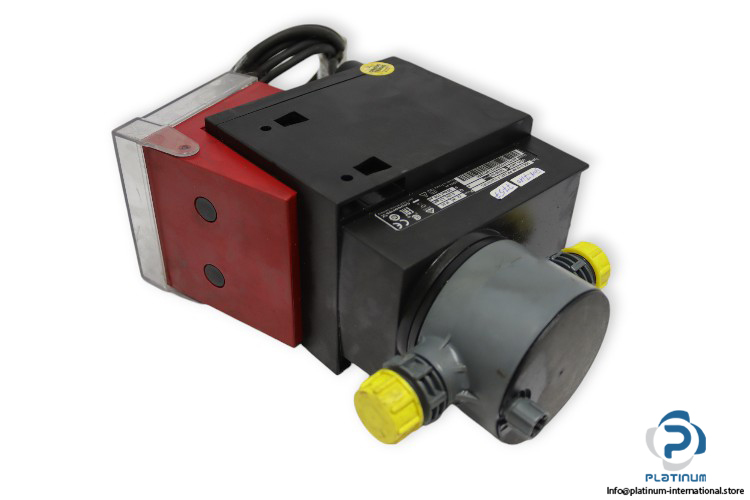

Grundfos DDC 6-10 AR-PVC/V/C-F-31U2U2FG Compact Diaphragm Metering Pump

Manufacturer: GRUNDFOS
Type: Compact Diaphragm Metering Pump

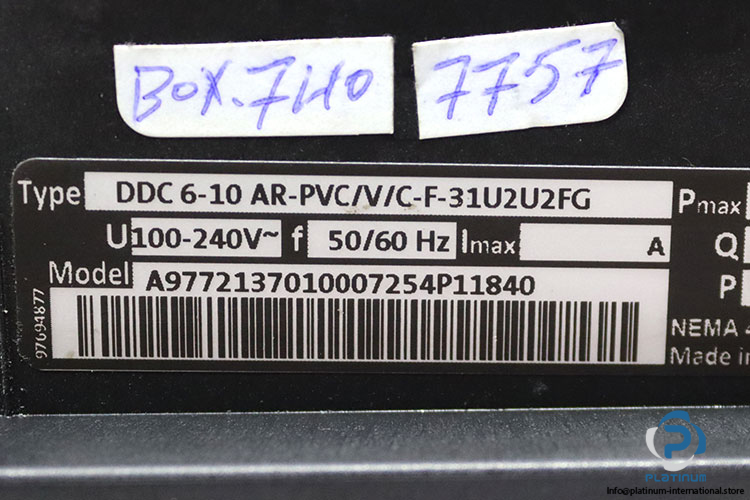

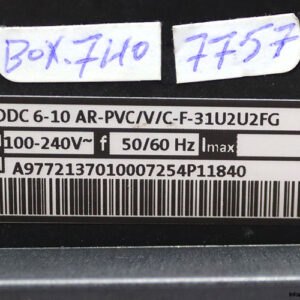

Model: DDC 6-10 AR-PVC/V/C-F-31U2U2FG
MNR: A9772137010007254P11840

Max. Flow: 6 l/h
Max. flow in slow mode 50%: 3 l/h
Max. flow in slow mode 25%: 1.5 l/h
Min flow: 6.0 ml/h
Turn-down ratio: 1:1000
Maximum viscosity at 100 %: 50 mPas
Maximum viscosity in slow mode 50 %: 1800 mPas
Maximum viscosity in slow mode 25 %: 2500 mPas
Accuracy of repeatability: 1 %
Materials
Dosing head: PVC (Polyvinyl chloride)
Valve ball: Ceramic
Gasket: FKM
Range of ambient temperature: 0 .. 45 °C

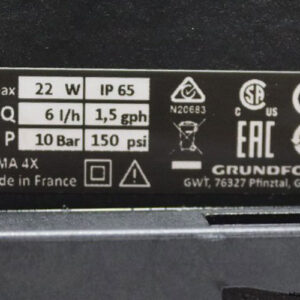

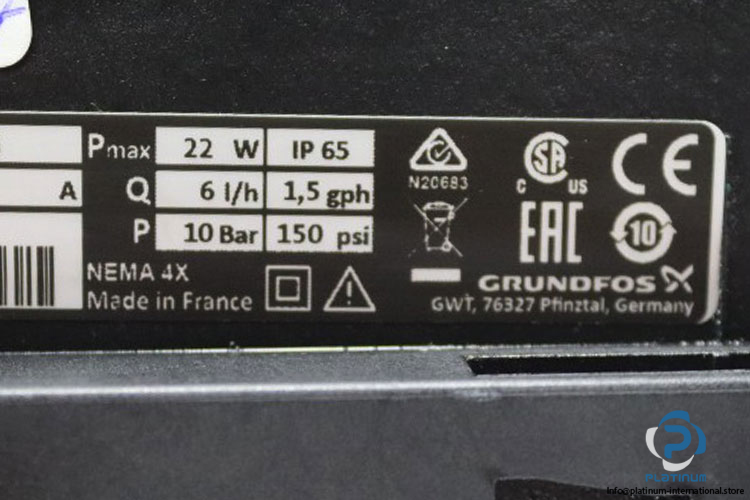

Maximum operating pressure: 10 bar
Installation set: NO
Maximum power input – P1: 22 W
Mains frequency: 50 Hz
Rated voltage: 1 x 100-240 V
Connection: 23 mm
