Hager BD 364H Earth Leakage ADD-ON Module

In stock1 unitReady to ship

HAGER Earth Leakage Add-on Module BD364H paired with the NC220A Miniature Circuit Breaker provides reliable protection with 63 A rated current and 300 mA sensitivity for enhanced circuit safety.

Manufacturer
HAGER
SKU
1061432
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

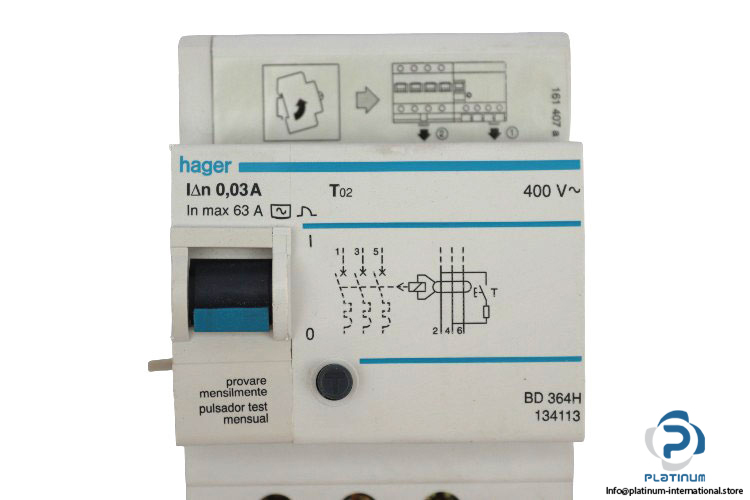

HAGER Earth Leakage Add-on Module BD364H with NC220A Miniature Circuit Breaker

The HAGER Earth Leakage Add-on Module BD364H is a reliable and robust protection device designed to safeguard electrical circuits from earth-leakage faults, ensuring safety and preventing electrical hazards. With a 63 A rated current and an earth-leakage sensitivity of 300 mA, it provides efficient fault detection and disconnection.

Key Features:

  • Model: BD364H
  • Rated Operational Voltage: 400 V AC
  • Rated Current: 63 A
  • Earth-Leakage Sensitivity: 300 mA
  • Frequency: 50 Hz
  • Rated Insulation Voltage (Ui): 500 V AC
  • Rated Impulse Voltage (Uimp): 4 kV
  • No. of Poles: 3-Pole
  • Protection Class: IP20
  • Temperature Range: -5 / 40 °C
  • Dimensions: 70 x 92 x 35 mm

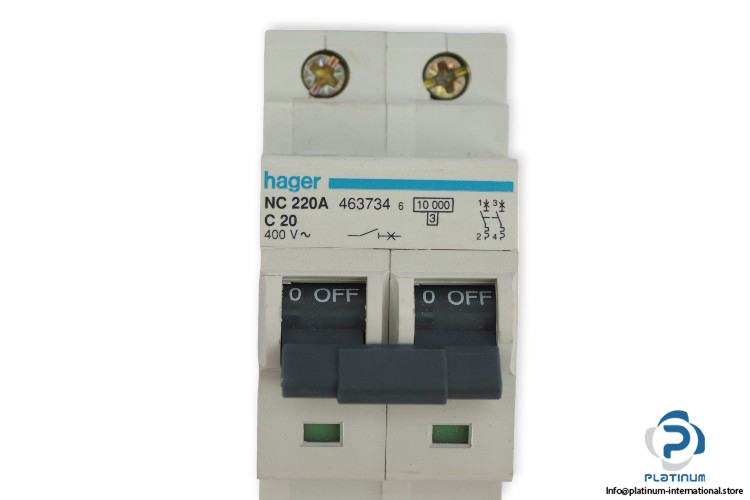

Attachment: HAGER NC220A Miniature Circuit Breaker

Paired with the HAGER NC220A Miniature Circuit Breaker, the module offers enhanced protection and reliability in electrical systems. The NC220A ensures effective circuit disconnection during overloads or short circuits.

  • Model: NC220A
  • Rated Operational Voltage: 400 V AC
  • Rated Current: 20 A
  • Frequency: 50 / 60 Hz
  • Rated Short Circuit Breaking Capacity Icn: 10 kA
  • No. of Poles: 2-Pole
  • Protection Class: IP20
  • Temperature Range: -25 / 80 °C
  • Dimensions: 83 x 35 x 70 mm

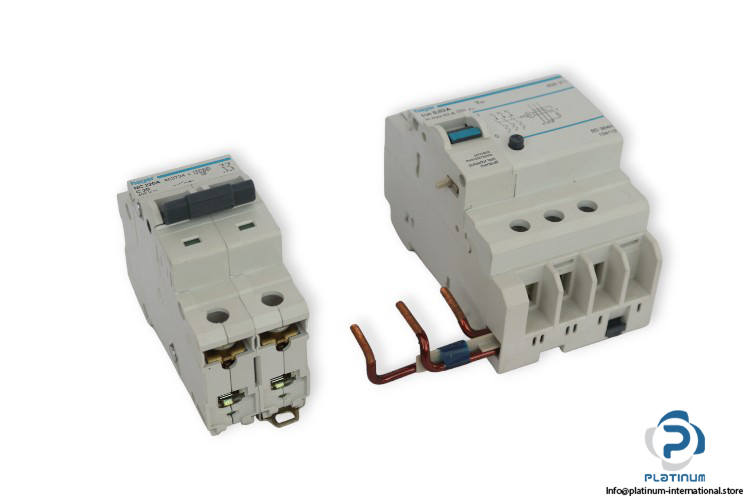

This combination of the BD364H Earth Leakage Module and NC220A Miniature Circuit Breaker is ideal for industrial and commercial applications, offering comprehensive circuit protection and enhanced safety standards.
