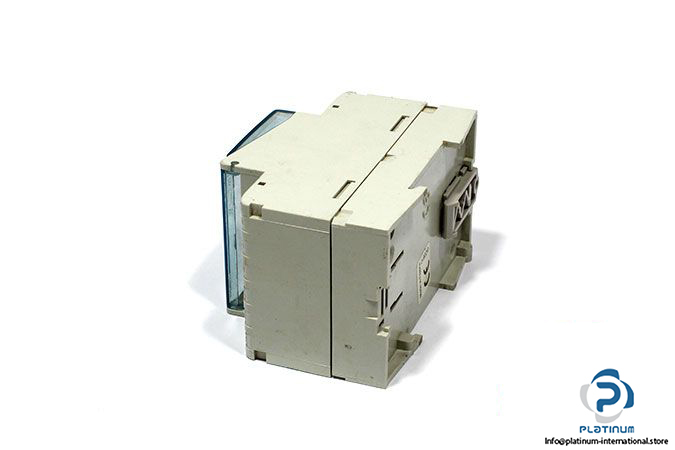

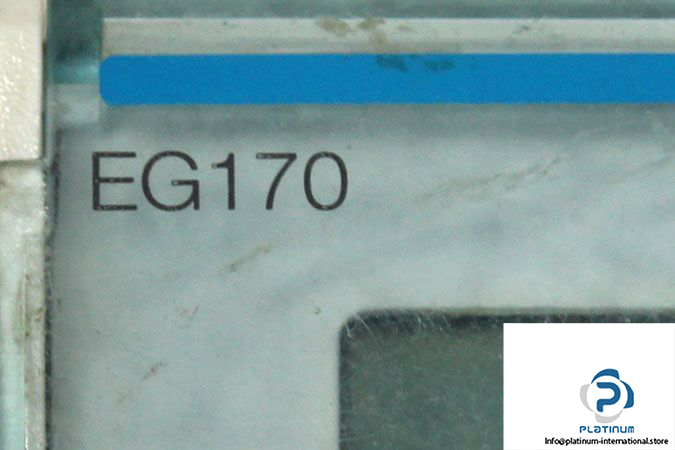

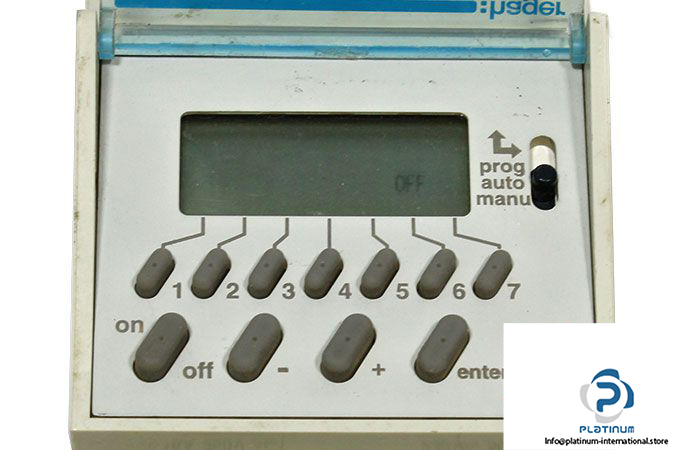

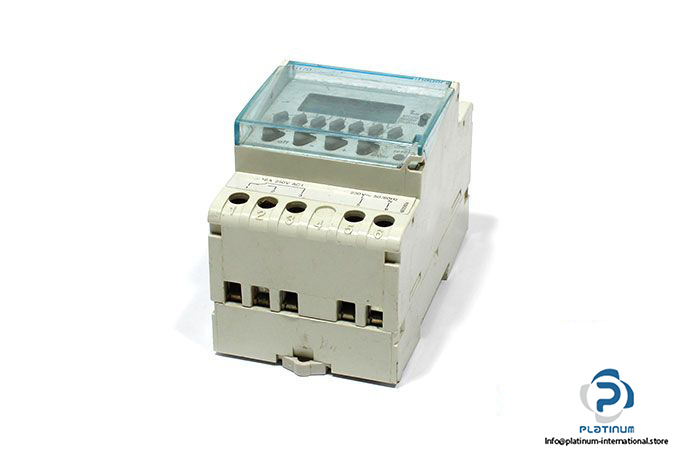

Hager EG170 1 Channel Weekly Programmer

Manufacturer: HAGER

Type: 1 Channel Weekly Programmer

Model: EG 170

Type of programming: digital

Cycle: weekly

Shortest switching time: 1 mn

Type of contacts: 1 changeover

Rated operational voltage Ue: 230 V

Supply failure reserve: sum of 3 years

Breaking capacity: 16A 250V AC1

Max. power with incandescent lamps: 1000 W

Type of connection: with screw

Connection cross-sect. flexible conductor: 0,5 / 2,5mm²

Connection cross-sect. rigid cable: 0,5 / 4mm²

Fixing mode: Din-Rail

Frequency: 50/60 Hz

Number of channels: 1

Number of program steps: 20

Height of installed product: 87 mm

Width of installed product: 6,5 cm

Depth of installed product: 53 mm

Number of contacts: 1

Number of modules: 3

Working accuracy: ± 1 s / 24h

Total power loss under IN: 2 W

Power dissipation per coil 0,5 W

Supply voltage: 230V A

Operating temperature: -10 … 45 °C

Protection index: IP20

Weight: 0.12 kg
