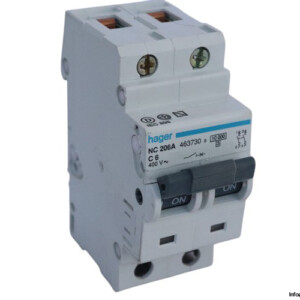

Hager NC206A Miniature Circuit Breaker
Used
In stock1 unitReady to ship
MINIATURE CIRCUIT BREAKER
Hager NC 206A 2P C-curve miniature circuit breaker with 6 A rating, 400 V AC, and 10 kA breaking capacity for reliable circuit protection.10kA2206A400V6AACBreakerCCircuitCompactCurveDeviceElectricalHagerIndustrialMCBMiniatureNCNC206APoleProtection
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

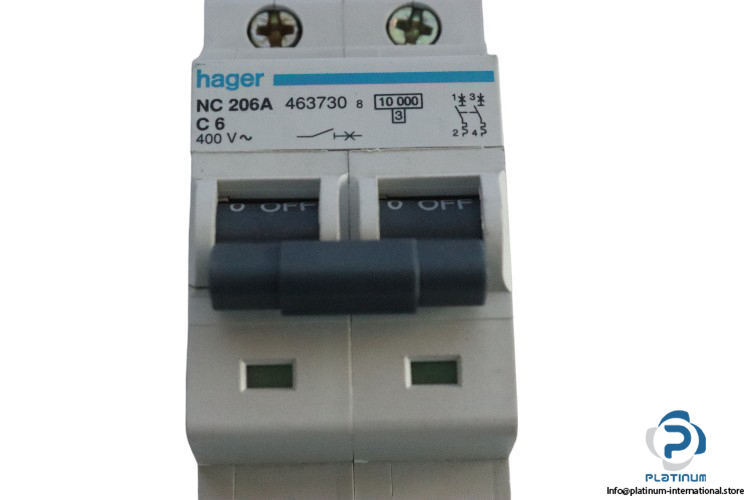

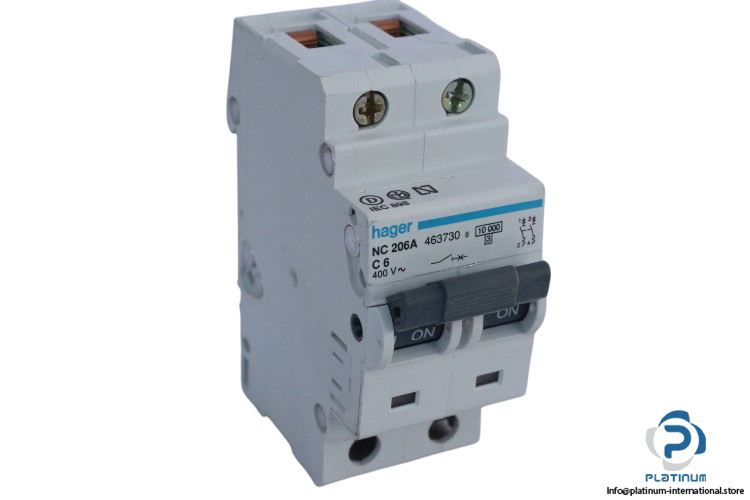

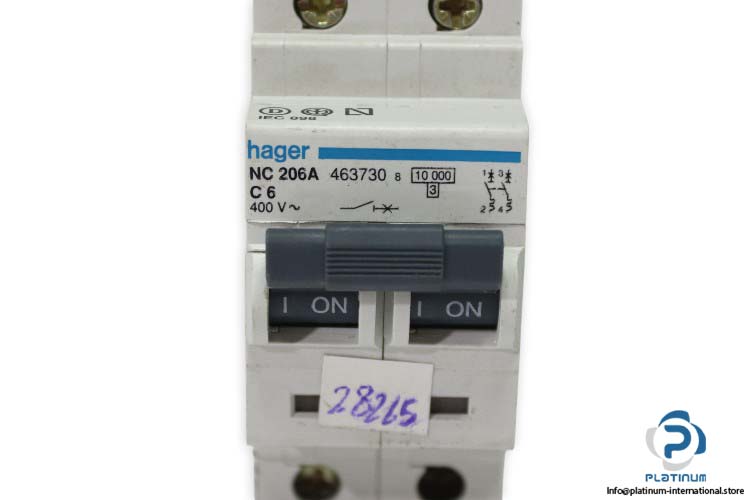

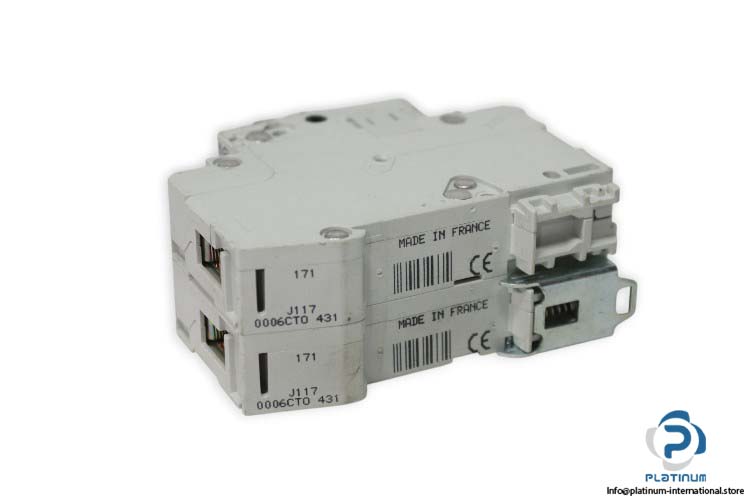

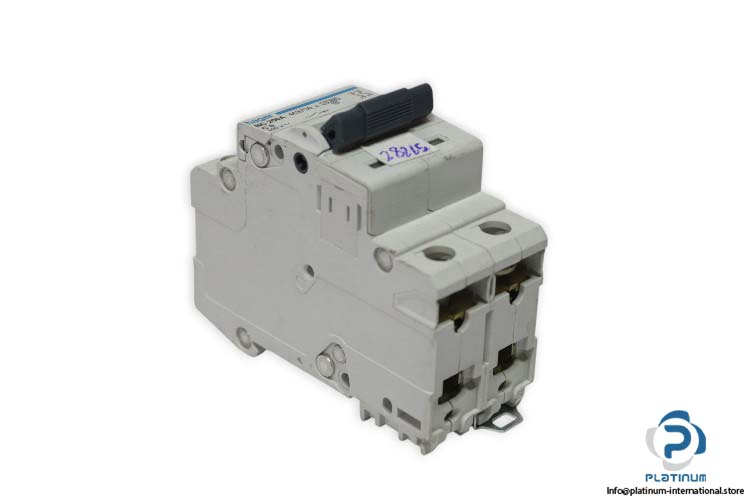

HAGER NC 206A MINIATURE CIRCUIT BREAKER
The Hager NC 206A is a high-performance miniature circuit breaker designed to protect electrical circuits from overloads and short circuits. Built with a durable C-curve tripping characteristic, it is ideal for both residential and industrial applications. This breaker offers excellent reliability, high breaking capacity, and compact dimensions for easy installation.
Manufacturer: Hager
Type: Miniature Circuit Breaker
Model: NC 206A
MNR: 463730
| Number of Poles | 2 P |
| Curve | C |
| Rated Operational Voltage | 400 V AC |
| Nominal Current (In) | 6 A |
| Frequency | 50 to 60 Hz |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Voltage (Uimp) | 4 kV |
| Rated Short Circuit Breaking Capacity (Icn) | 10 kA |
| Rated Service Breaking Capacity (Ics) | 7.5 kA |
| Tightening Torque | 2.8 Nm |
| Temperature Range | -25 to 70 °C |
| Dimensions | 70 x 83 x 35 mm |
