Hager NC220A Miniature Circuit Breaker
New
In stock2 unitsReady to ship
Miniature Circuit Breaker
Hager Miniature Circuit Breaker NC220A “ A robust and reliable 2-pole breaker designed for efficient circuit protection. Featuring a 10 kA short circuit breaking capacity, 400 V rated voltage, and advanced safety features, it is ideal for industrial and commercial electrical systems.102-Pole400BreakerBreakingCapacityCircuitcommercialComponentsElectricalHagerIndustrialkAMiniatureNC220AProtectionSafetyV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

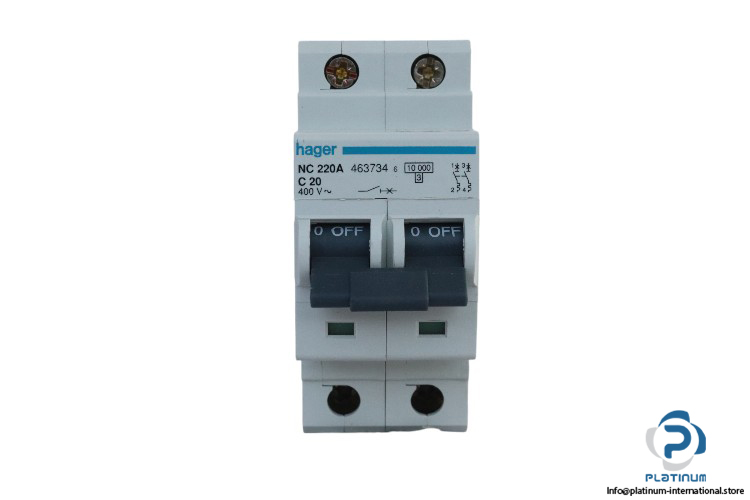

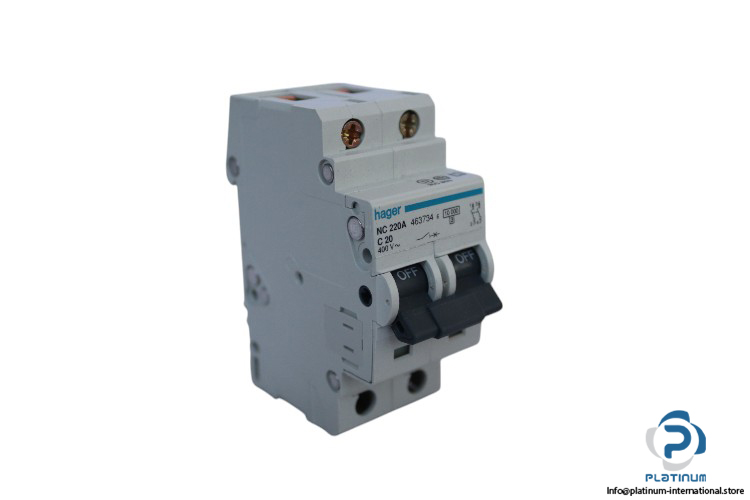

Hager Miniature Circuit Breaker NC220A
Manufacturer: Hager
Type: Miniature Circuit Breaker
Model: NC220A
The Hager Miniature Circuit Breaker NC220A is engineered to provide reliable protection and safety in low voltage electrical installations. Designed for efficient circuit interruption, this breaker ensures optimal performance under normal and fault conditions. Its robust construction and advanced features make it ideal for demanding industrial and commercial applications.
Technical Specifications
- Number of poles: 2 P
- Rated short circuit breaking capacity: 10 kA
- Rated operational voltage (Ue): 400 V
- Frequency: 50/60 Hz
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Rated current: 20 A
- Total power loss under In: 5.5 W
- Power loss per pole at In: 2.78 W
- Type of top connection for modular devices: with screw
- Tightening torque: 2.8 Nm
- Degree of pollution: 2
- Operating temperature: -25 / 70 °C
- Dimensions (HXWXD): 83 x 35 x 70 mm
This circuit breaker is built to deliver exceptional safety and efficiency, ensuring that your electrical systems remain protected against overloads and short circuits.
