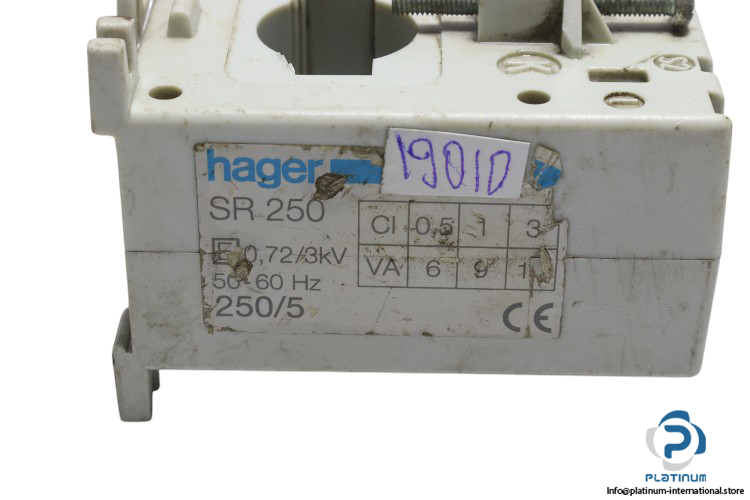

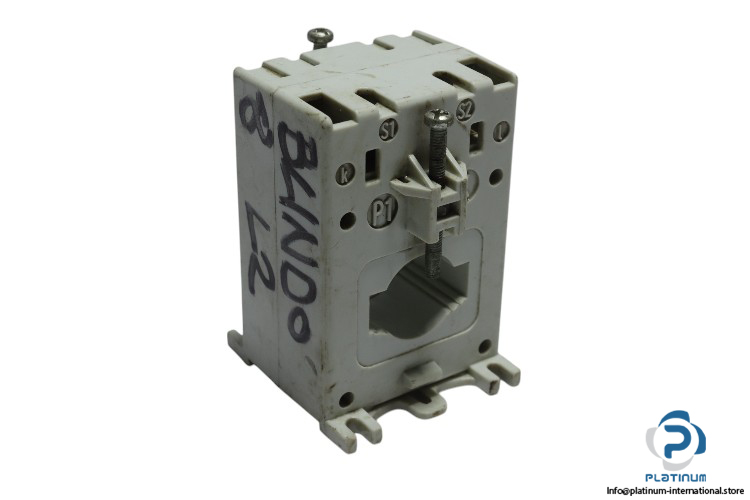

Hager SR 250 Current Transformer
Current Transformer
The Hager SR250 Current Transformer features a 250/5 A transformation ratio, 0.72 to 3 kV operating voltage, and a maximum primary current of 300 A. Ideal for precise current measurement in industrial applications.Hager SR250 Current Transformer
The Hager SR250 Current Transformer is designed for precise measurement and conversion of single-phase currents. With a transformation ratio of 250/5 A and an operating voltage range of 0.72 to 3 kV, this transformer provides reliable performance in both industrial and commercial settings. It is engineered to handle maximum primary currents of up to 300 A, while maintaining secondary currents of 5 A.
Manufacturer: Hager
Type: Current Transformer / Single-phase Current Converter
Model: SR250
This current transformer is ideal for applications requiring high-precision current measurement, offering versatility, reliability, and efficient performance in various industrial sectors.
| Operating Voltage | 0.72 to 3 kV |
| Frequency | 50/60 Hz |
| Transformation Ratio | 250/5 A |
| Maximum Current of Primary | 300 A |
| Maximum Current of Secondary | 5 A |
| Operating Temperature | -25 to 50 °C |
| Number of Modules | 3.5 |
| Dimensions of Installed Product | 60 x 50 x 56 mm |
| Width of Opening | 10 mm |
| Height of Opening | 30 mm |
| Bar Size | 30 x 10 mm |
