Hager NC420A Automatic Circuit Breaker
New
In stock3 unitsReady to ship
Automatic Circuit Breaker
The Hager NC420A 4-pole circuit breaker offers 20 A protection at 400 V AC with 10 kA breaking capacity, ensuring reliable overload and short-circuit protection in electrical systems.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

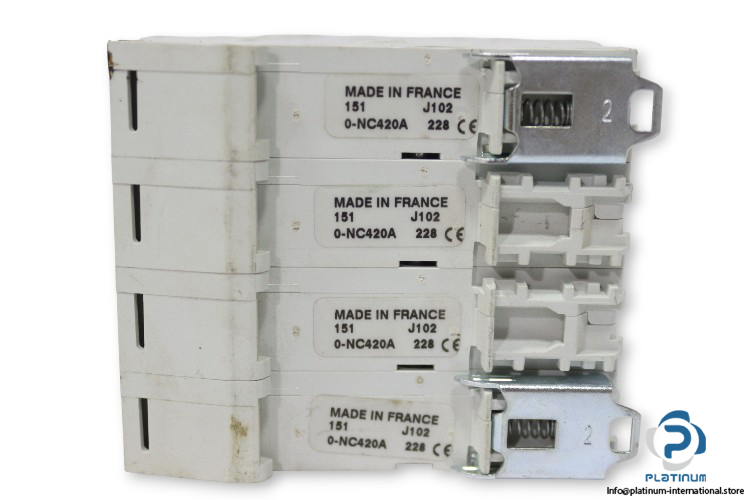

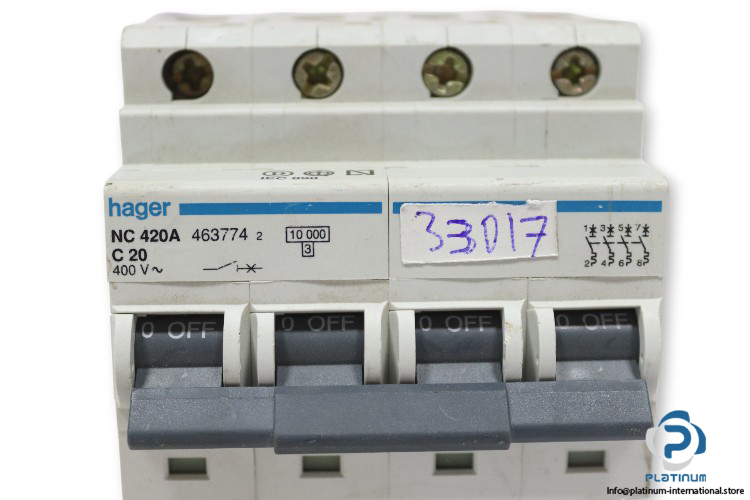

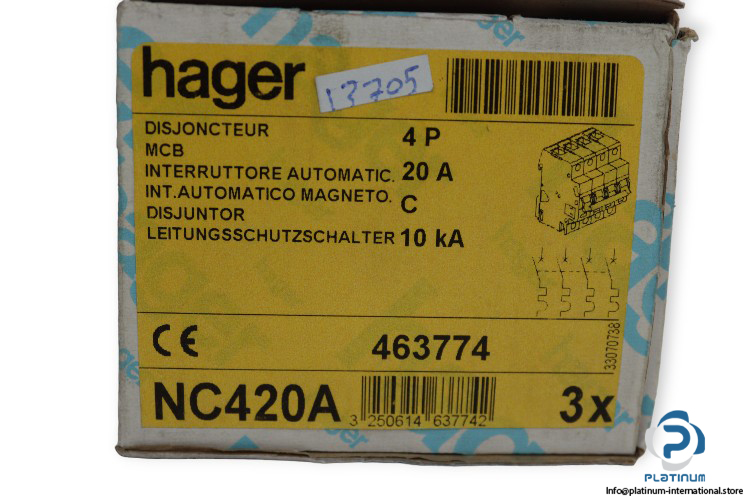

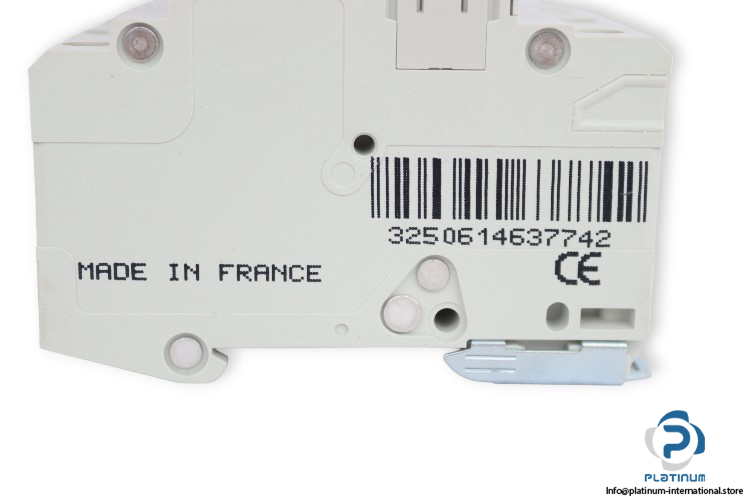

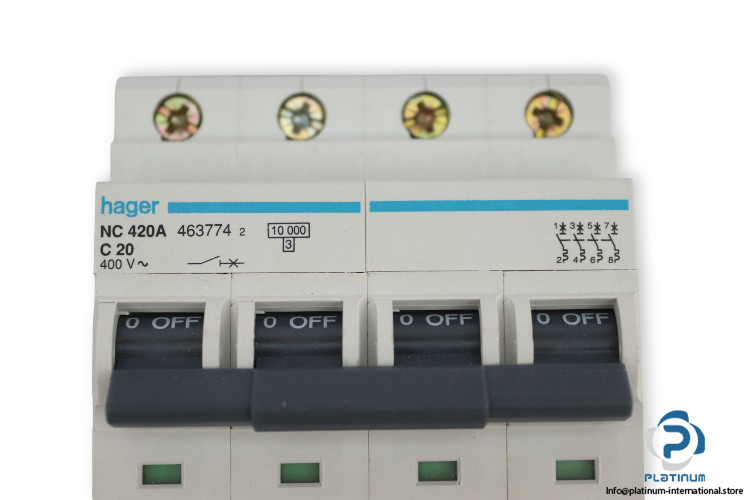

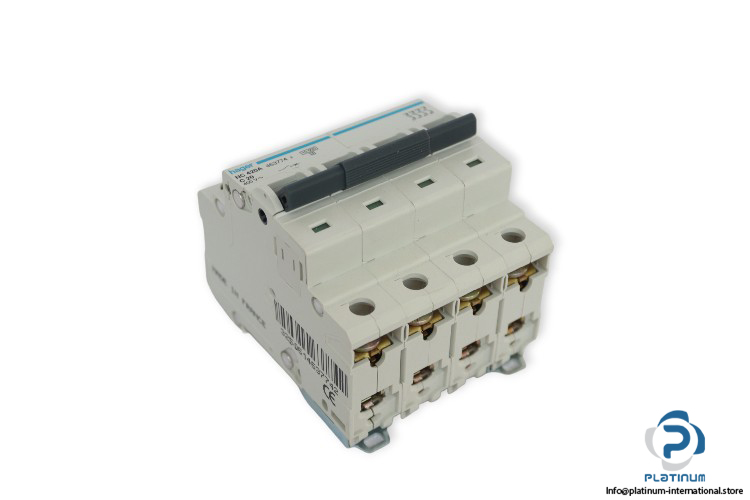

Hager NC420A Automatic Circuit Breaker
The Hager NC420A Automatic Circuit Breaker is a high-quality protective device designed for reliable circuit protection in residential, commercial, and industrial electrical installations. It ensures safe operation with a 10 kA breaking capacity and precise tripping characteristics for overload and short-circuit protection.
Manufacturer: Hager
Type: Automatic Circuit Breaker
Model: NC420A
Part No.: 463774
| Rated Operational Voltage | 400 V AC |
| Rated Current | 20 A |
| Frequency | 50 / 60 Hz |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Voltage (Uimp) | 4 kV |
| Rated Short Circuit Breaking Capacity Icn | 10 kA |
| Curve | C |
| Poles No. | 4-Pole |
| Protection Class | IP20 |
| Temperature | -25 / 70 °C |
| Dimensions | 83 x 70 x 70 mm |
