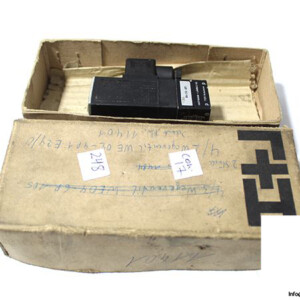

Hartmann + Lammle WE 04-4P1 Directional Control Valve With Hydraulic Block
Used
Available on request
129,99$
Directional Control Valve
An electrically actuated 4/3 way hydraulic directional control valve designed for precise flow control, high-pressure operation, and continuous-duty industrial applications.4/3ActuatedAutomationControlDirectionalElectricallyHartmannHydraulicHydraulicsIndustrialLammlleNG4ValveWayWE04-4P1
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

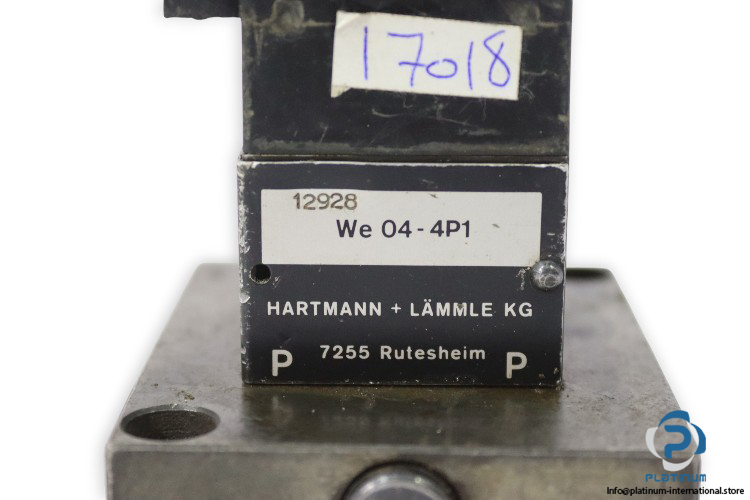

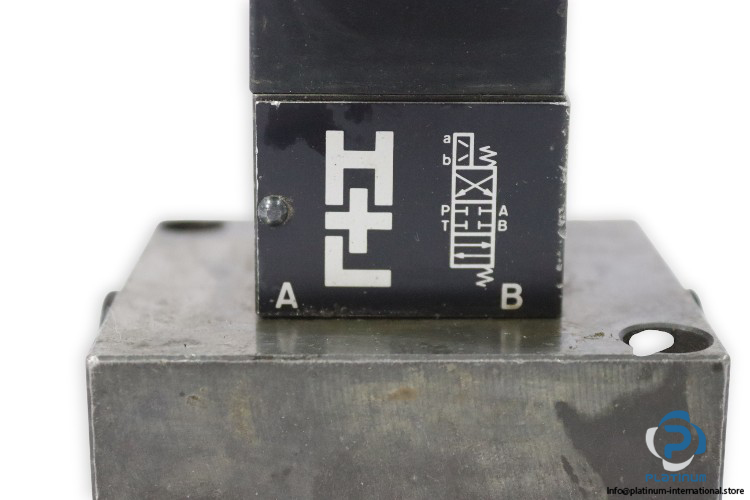

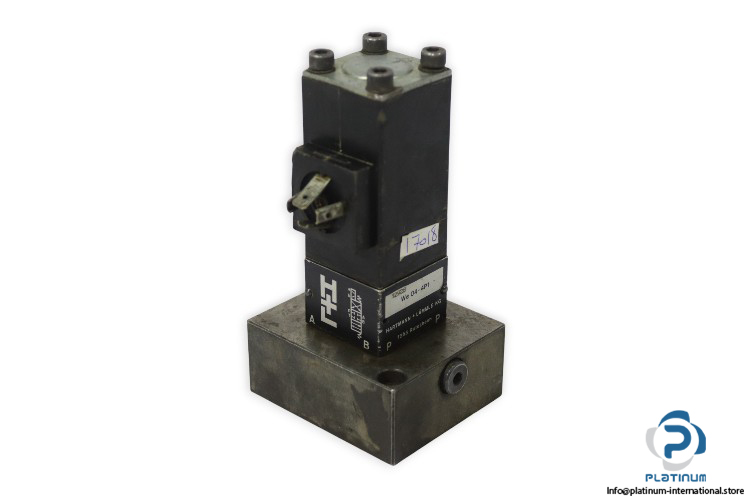

HARTMANN + LAMMLE WE04-4P1 Directional Control Valve
A high-quality electrically actuated directional control valve designed for precise hydraulic flow control in industrial hydraulic systems. This valve is suitable for applications requiring reliable switching performance, compact mounting, and continuous-duty operation. Manufacturer: HARTMANN + LAMMLE
Type: Directional Control Valve
Model: WE04-4P1
Code: 12928

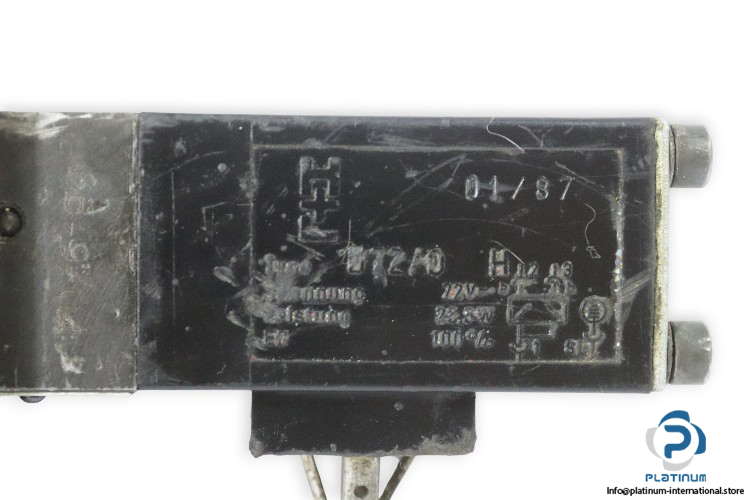

Solenoid Coil Information
| Valve Size | NG 4 |
| Function | 4/3 Way Valve |
| Type of Actuation | Electrically |
| Maximum Pressure (Port P, A, B) | 315 bar |
| Maximum Pressure (Port T) | 150 bar |
| Hydraulic Temperature Range | -10 / +70 °C |
| Hydraulic Connection | Mounting Plate |
| Coil Type | HARTMANN + LAMMLE D72/0 H |
| Voltage | 72 V |
| Power | 25.5 W |
| Duty Factor | 100% |
