Hartmann + Lammle We 09-4P1 Directional Control Valve
Used
Available on request
139,99$
Directional Control Valve
Electrically actuated HARTMANN + LAMMLE WE09-4P1 4/3-way directional control valve, NG 4 ISO 4401, rated up to 315 bar with 72 VDC solenoid coil.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

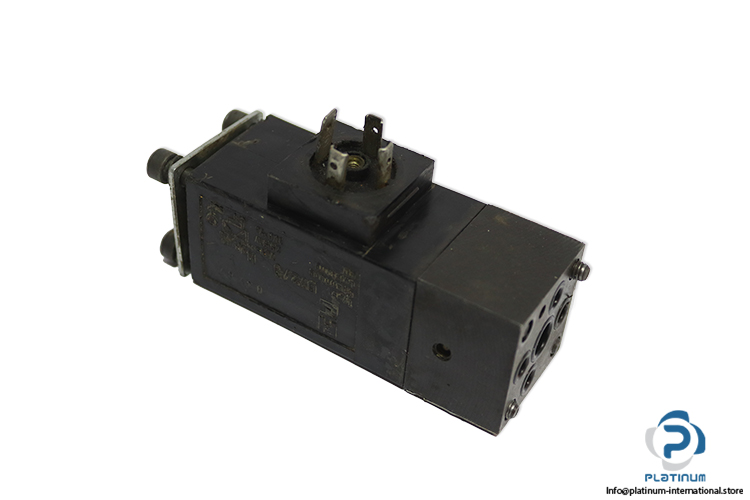

HARTMANN + LAMMLE WE09-4P1 Directional Control Valve
The HARTMANN + LAMMLE WE09-4P1 is a hydraulically robust directional control valve designed for precise flow direction management in industrial hydraulic systems. This electrically actuated 4/3-way valve complies with ISO 4401 mounting standards and supports high operating pressures for demanding applications.
Manufacturer: HARTMANN + LAMMLE
Type: Directional Control Valve
Model: WE09-4P1
| Size | NG 4, ISO 4401 |

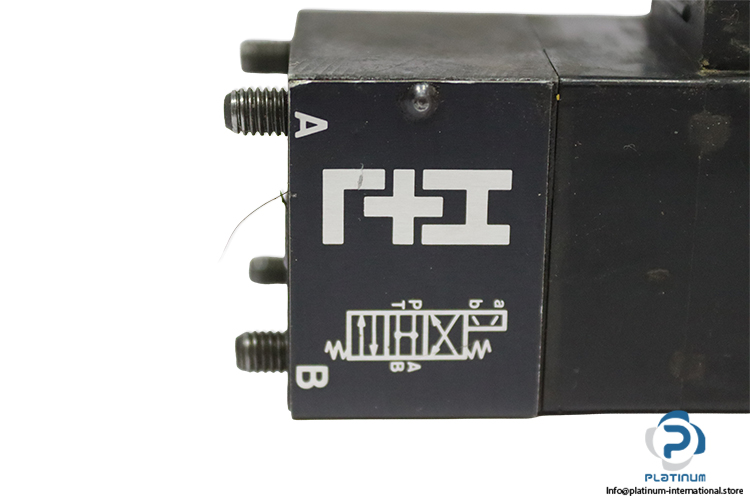

| Function | 4/3 Way Valve |
| Type of Actuation | Electrically |
| Maximum Pressure Port P, A, B | 315 bar |
| Maximum Pressure Port T | 150 bar |
| Hydraulic Temperature Range | -10 to +70 °C |

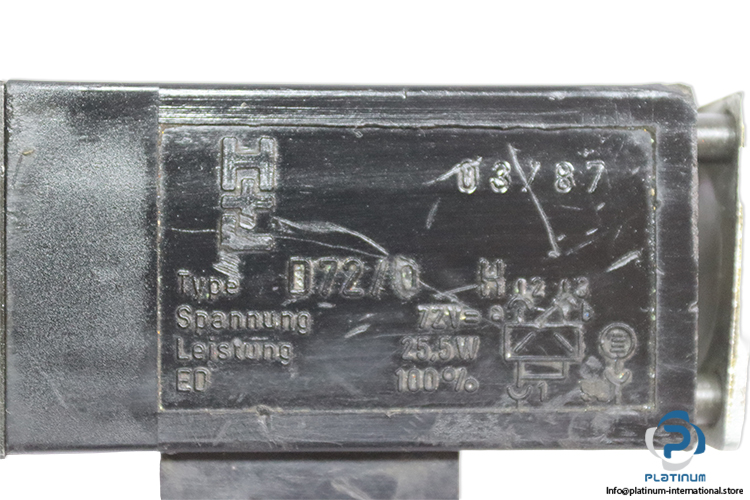

| Attachment | HARTMANN + LAMMLE D72/0 H Solenoid Coil |
| Voltage | 72 VDC |
| Power | 25.5 W |
| Duty Factor | 100% |
