Hartmann + Lammle WE07-12P100 Directional Control Valve
Used
In stock1 unitReady to ship
Directional Control Valve
HARTMANN + LAMMLE WE07-12P100 electrically actuated 4/3 way directional control valve, NG 4 ISO 4401, rated up to 315 bar with 24 V solenoid coil and 100% duty cycle.+GF+24v44/34401ActuatedControlDirectionalElectricallyHartmannHighHydraulicIndustrialISOLammleNGPressuresolenoidValveWay
New
Available on request 150,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

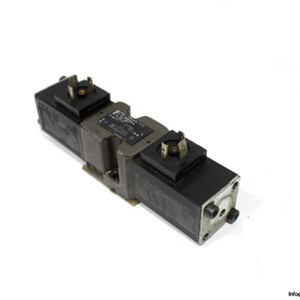

HARTMANN + LAMMLE WE07-12P100 Directional Control Valve
The HARTMANN + LAMMLE WE07-12P100 is an electrically actuated hydraulic directional control valve designed for precise flow direction control in industrial hydraulic systems. It is built according to ISO standards and engineered for reliable performance under high-pressure operating conditions.
Manufacturer: HARTMANN + LAMMLE
Type: Directional Control Valve
Model: WE07-12P100
ID No.: 1233
LTD No.: 9950
Electrical & Attachment Data
| Size | NG 4, ISO 4401 |
| Function | 4 / 3 Way Valve |
| Type of Actuation | Electrically |
| Maximum Pressure Port P, A, B | 315 bar |
| Maximum Pressure Port T | 150 bar |
| Hydraulic Temperature | -10 / +70 °C |

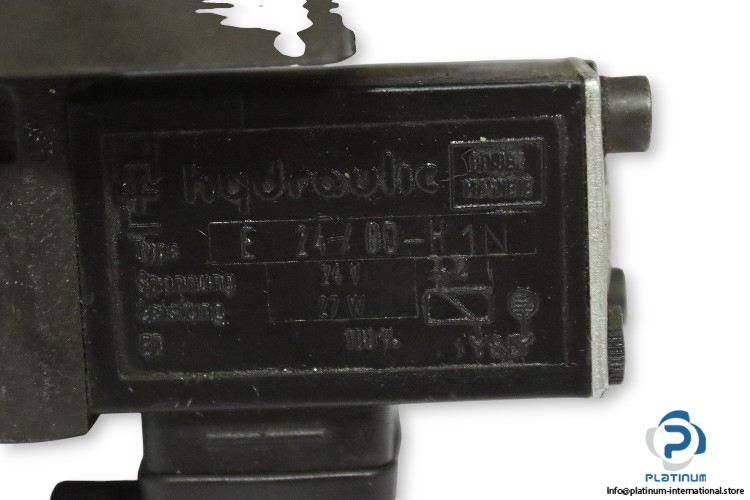

| Attachment | HARTMANN + LAMMLE E24/0D H1N Solenoid Coil |
| Voltage | 24 V |
| Power | 27 VA |
| Duty Factor | 100% |
