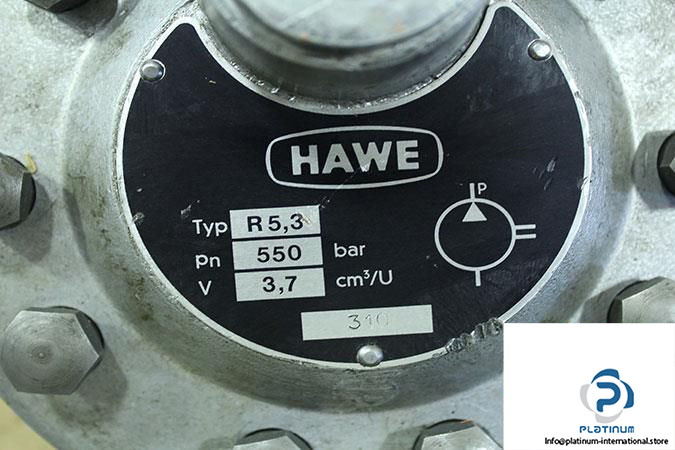

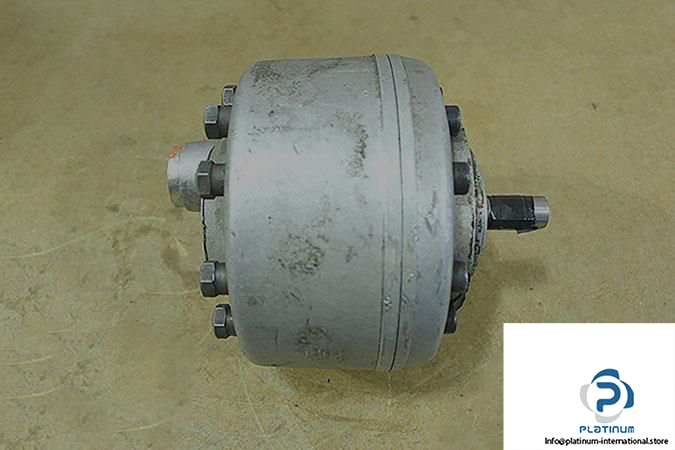

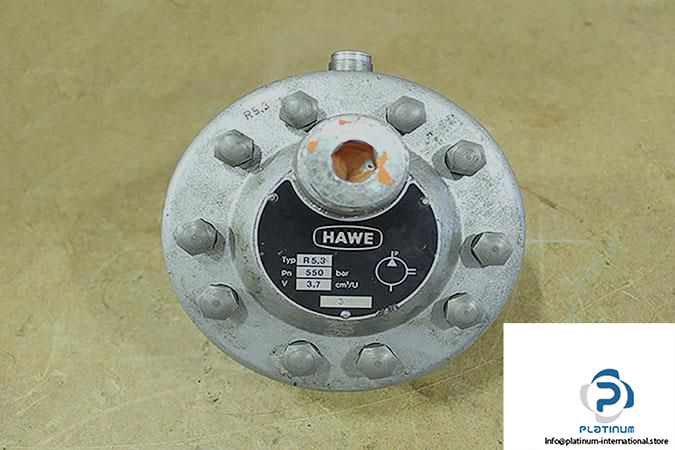

Hawe R 5.3 Radial Piston Pump

Manufacturer: HAWE

Type: RADIAL PISTON PUMP

Model: R 5.3

Design, Cylinder Arrangement: 6010  2×5-Cylinder Pump

Number Of Pump Cylinders:  2×5

Geometrical Displacement: 3.7 cm³/r

Max. Pressure: 550 bar

Speed Range: 100-2000 rpm

Maximum Discharge Flow at 1450 rpm: 5.3 l/min

Maximum Power Input at 1450 rpm: 0.55….5.5 Kw

Hydraulic fluid Temperature Range: –40 …. +80 °C

Viscosity Range: 10 …. 500 mm²/s

Weight: 9.22 kg

Condition: Used
