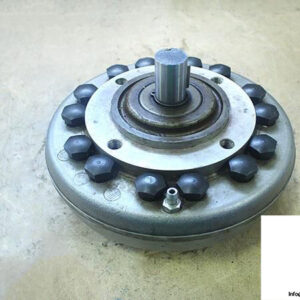

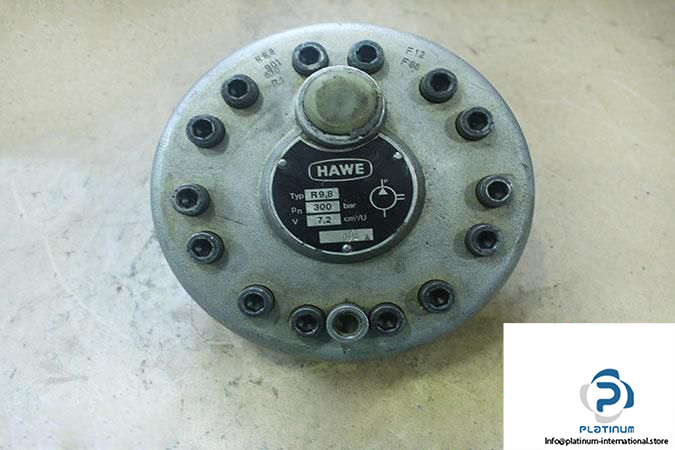

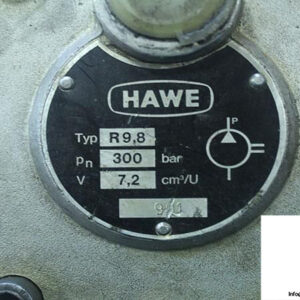

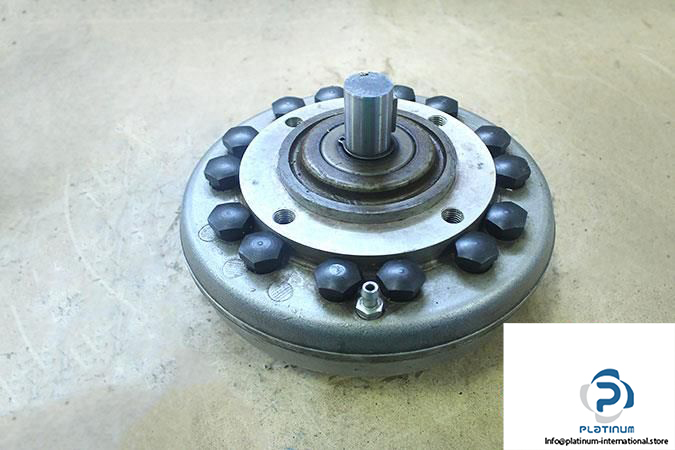

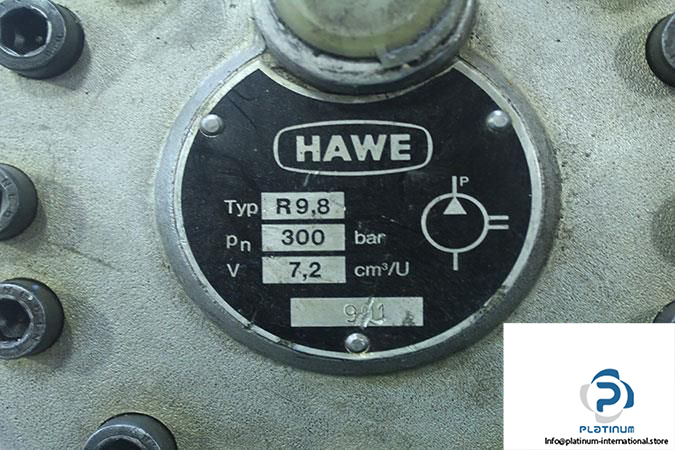

Hawe R9.8 Radial Piston Pump

Manufacturer: HAWE

Type: RADIAL PISTON PUMP

Model: R9.8

Design, Cylinder Arrangement: 6011 7-Cylinder Pump

Number Of Pump Cylinders: 7

Geometrical Displacement: 7.06  cm³/r

Max. Pressure: 300 bar

Speed Range: 100-2000 rpm

Maximum Discharge Flow at 1450 rpm: 9.8  l/min

Maximum Power Input at 1450 rpm: 0.55….5.5  Kw

Hydraulic fluid Temperature Range: –40 …. +80 °C

Viscosity Range: 10 …. 500 mm²/s

Weight: 5.96  kg

Condition: Used
