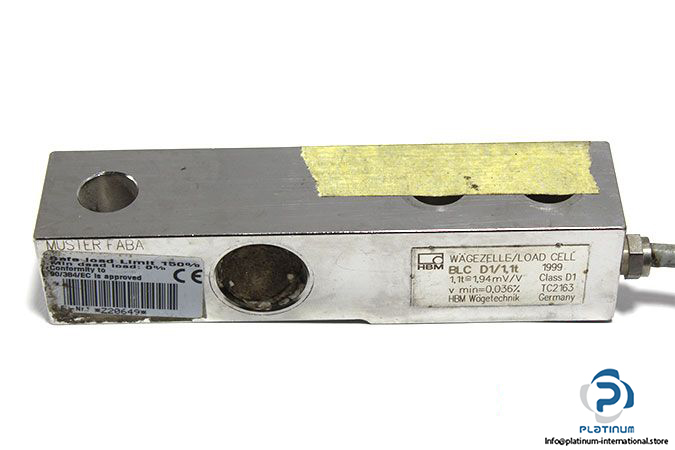

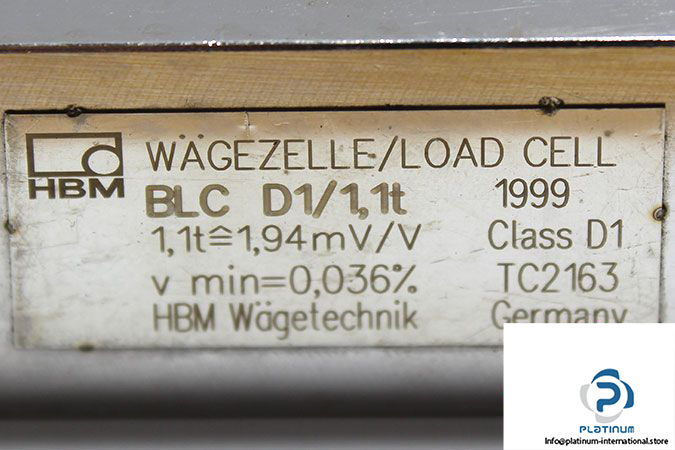

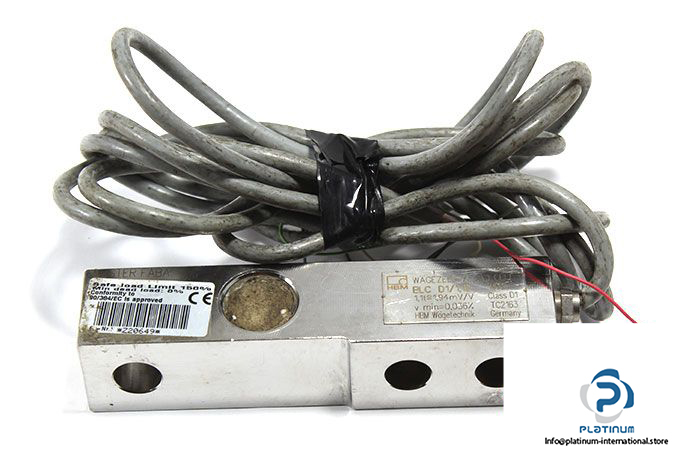

HBM BLC D1/1.1T MAX 1000 KG Shear Beam Load Cell

Manufacturer: HBM

Type: Shear Beam Load Cell

Model: BLC D1/1.1T

Features

• Small Dimensions
• Maximum Capacities:
• Stainless Steel
• Meets EMC Standards (EN 45 501)
• Complies with OIML R60 Regulations Up To 3000 D



Maximum weight limit (E max): 1000 kg

Rated Output: 1.94 mV/V

Recommended Supply Voltage: 10 V

Maximum Supply Voltage: 15 V

Input Resistance: 350 Ω

Output Resistance: 352±2 Ω

Nominal Temperature: -10…40 °C

Class: D1

Protection Class: IP67

Weight: 0.850 kg
