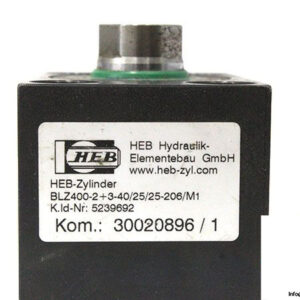

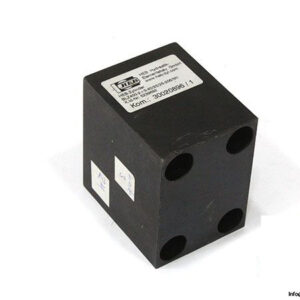

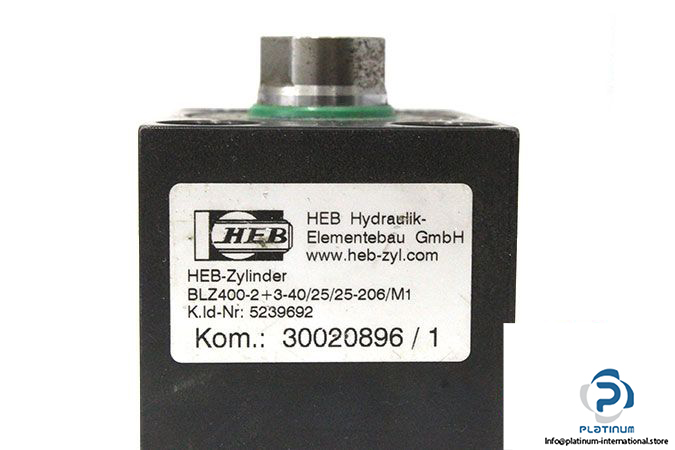

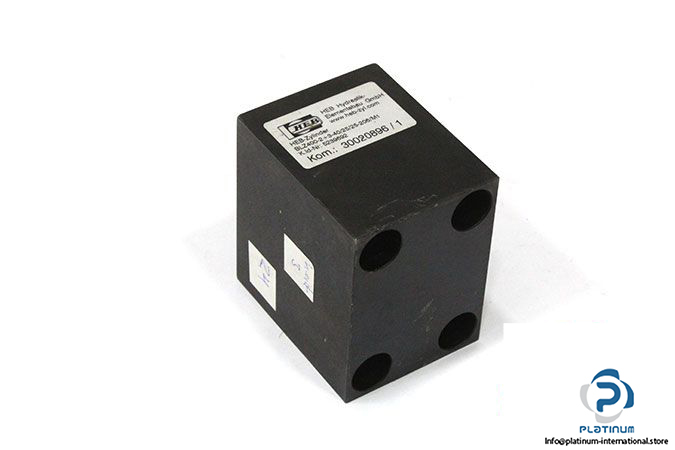

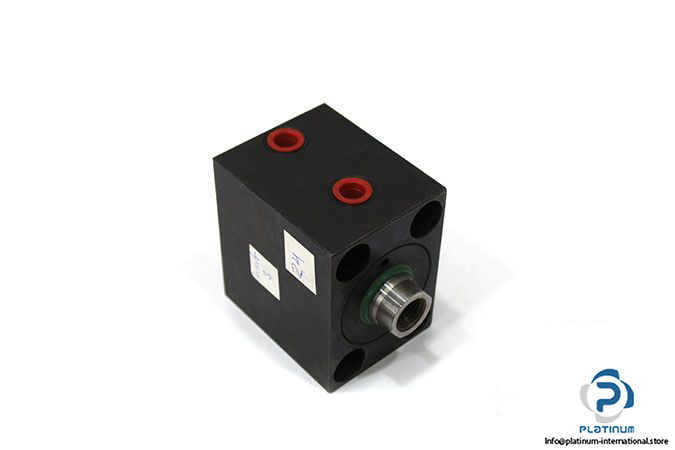

HEB BLZ400-2+3-40/25/25-206/M1 Hydraulic Block ‎Cylinder ‎

Manufacturer: HEB

Type: Hydraulic Block Cylinder

Model: BLZ400-2+3-40/25/25-206/M1

Alt Model: BLZ400-2-40/25/25-206/M1 / BLZ400-3-40/25/25-206/M1

KOM No.: 30020896/1

Piston Diameter: 40 mm

Rod Diameter: 25 mm

Stroke: 25 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Maximum operating pressure: 400 bar

Piston rod: Female thread

Temperature range: 0 …. 180 °C

Connection: G ¼”

Weight: 2.6 kg
