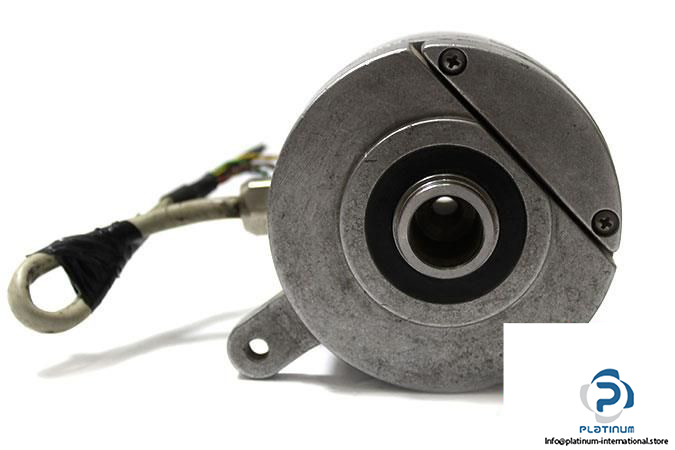

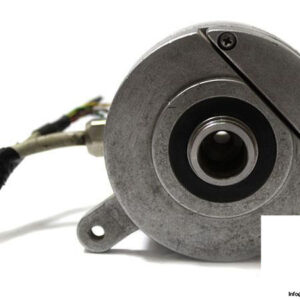

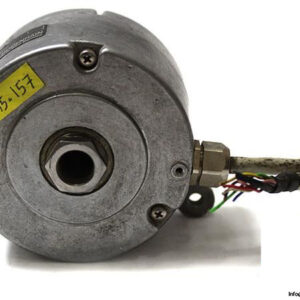

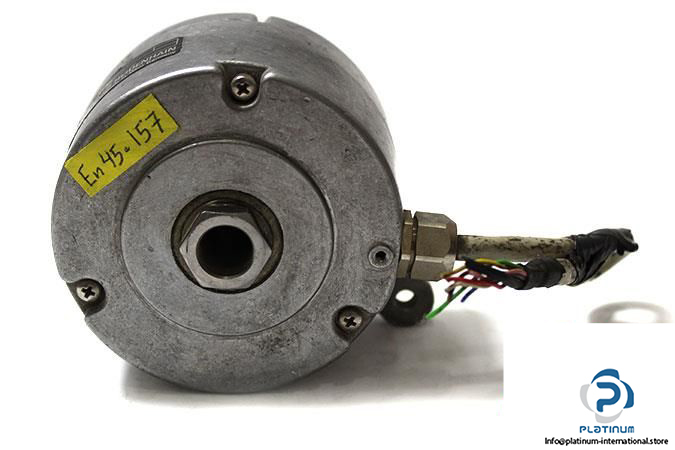

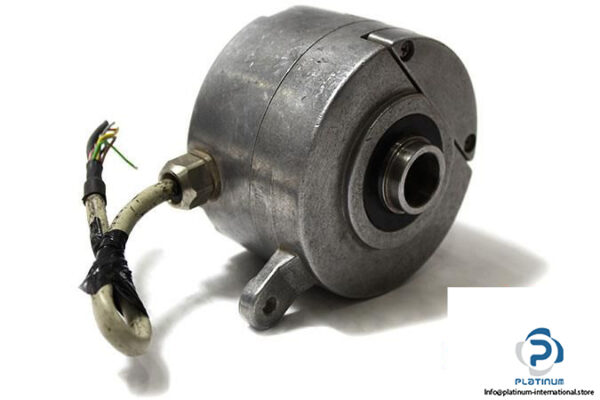

Heidenhain ROD-320.001-1500 Incremental Encoder

In stock1 unitReady to ship

325,00$

INCREMENTAL ENCODER

The HEIDENHAIN ROD-320.001-1500 is a high-resolution encoder for CNC machinery. With 1500 PPR, TTL signal output, and 5 VDC operation, it ensures accurate feedback at speeds up to 8500 rpm.

Manufacturer
HEIDENHAIN
SKU
966168
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HEIDENHAIN ROD-320.001-1500 INCREMENTAL ENCODER

This high-precision incremental encoder is engineered for demanding CNC machine environments, offering reliable performance with high resolution and signal integrity. The HEIDENHAIN ROD-320.001-1500 is ideal for applications requiring accurate feedback and robust durability.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

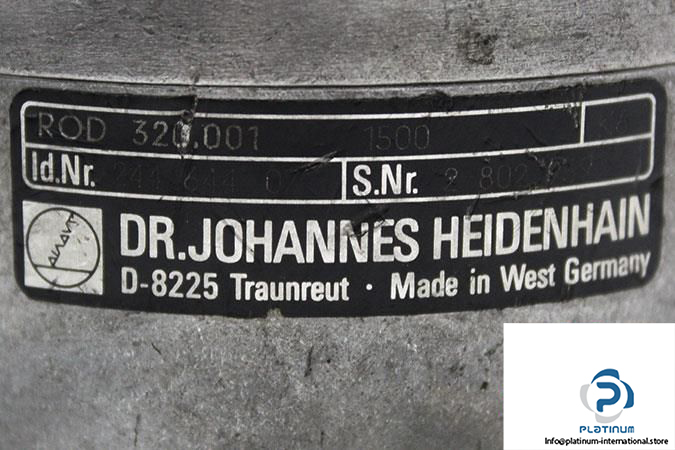

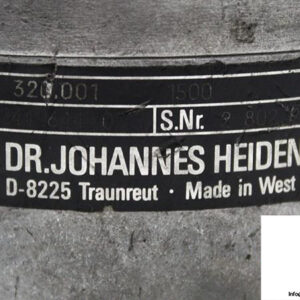

Model: ROD-320.001-1500

ID No.: 244 644 07

Installed For: Mostly on CNC Machine Industry

Shaft DesignHollow Shaft
Shaft Diameter15 mm
Voltage Supply5 VDC
Resolution1500 Pulses Per Revolution (PPR)
Max. Current Consumption150 mA
Signal OutputTTL (RS 422)
Max Speed8500 rpm
Max. Pulse Frequency300 kHz
Protection ClassIP 64
Max Temperature100 °C
