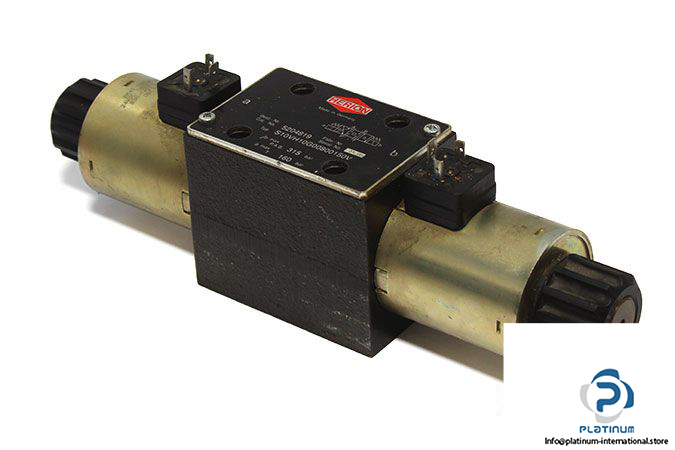

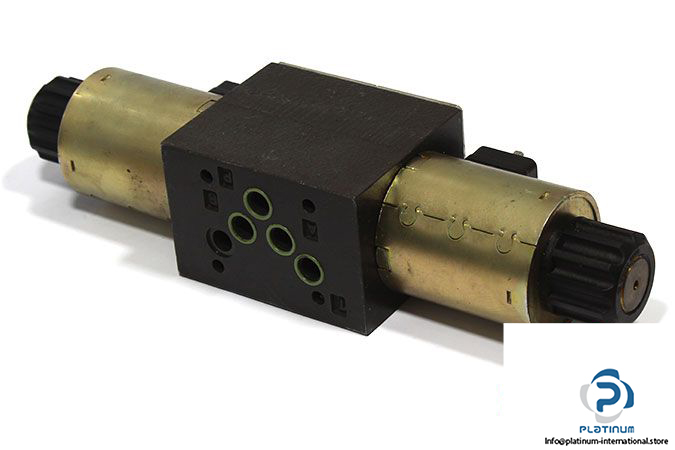

Herion S10VH10 G 008 001 5 O V Solenoid Operated Directional Valve Coil 13606C08

Manufacturer: IMI-Precision Herion

Type: Solenoid Operated Directional Valve

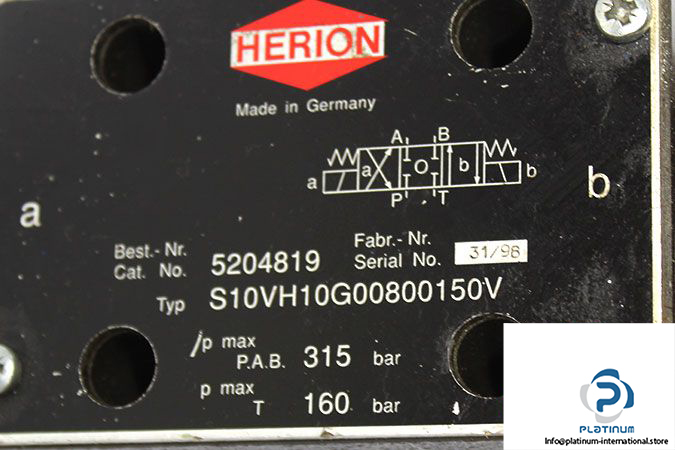

Model: S10VH10G0080015OV

Part No.: 5204819



Nominal Size: DN 10

Type of Actuation: Electrically

Max. Operating Pressure Port P,A,B: 315 bar

Max. Operating Pressure Port T: 160 bar

Fluid: Oil

Hydraulic Connection: Sub-Based

Ambient Temperature: -20…50 °C

Weight: 6.8 kg

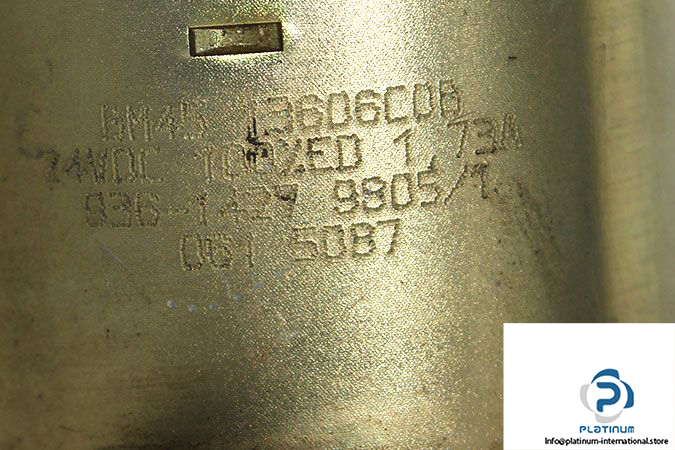

Attachment: HERION BM45 13606C08 SOLENOID COIL

Manufacturer: IMI-Precision Herion

Type: Solenoid Coil

Model: BM45 13606C08

Part No: 936-1427 9805/1

MRN: 061 5087

Nominal voltage per Coil: 24 VDC

Current: 1.73 A
