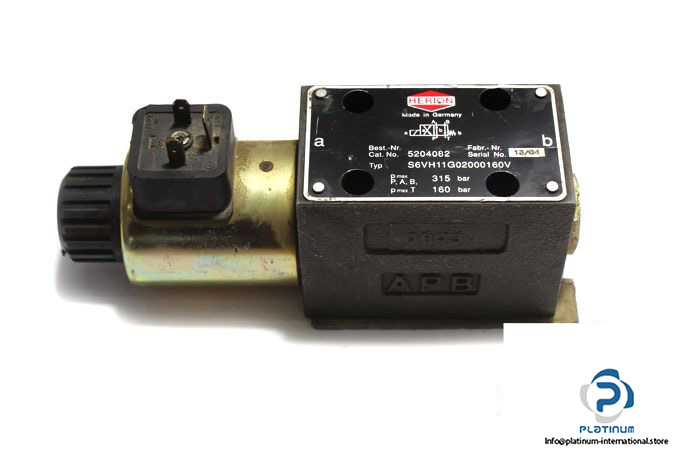

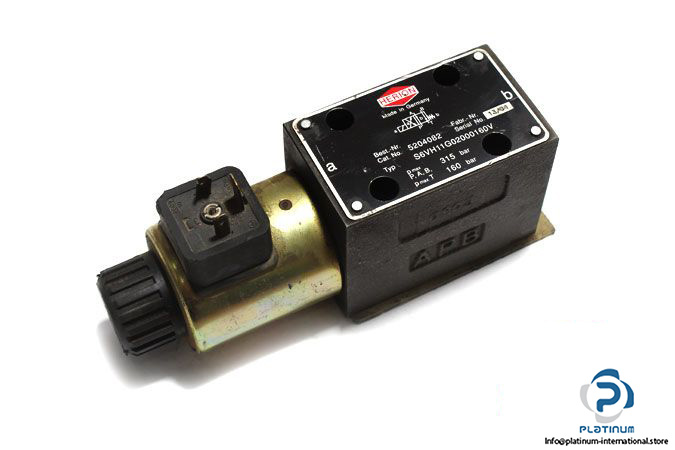

Herion S6VH11G02000160V Direct Operated Directional Control Valve
Manufacturer: HERION
Type: Direct Operated Directional Control Valve

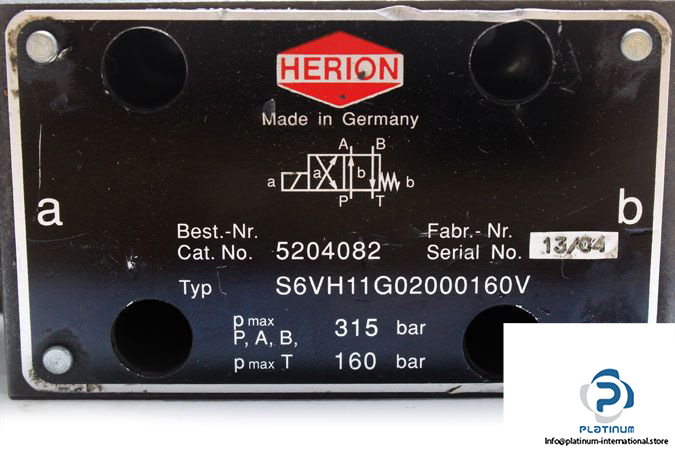

Model: S6VH11G02000160V
Cat No.: 5204082
Nominal Size: NG 6
Type of Actuation: Electrically
Max. Working pressure (Port P, A, B): 315 bar
Max. Pressure (Port T): 160 bar
Max. Flow Rate: 75 l/min
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -20 ….. +80 °C
Nominal Voltage per Coil: 230 VAC
Weight: 1.8 kg
