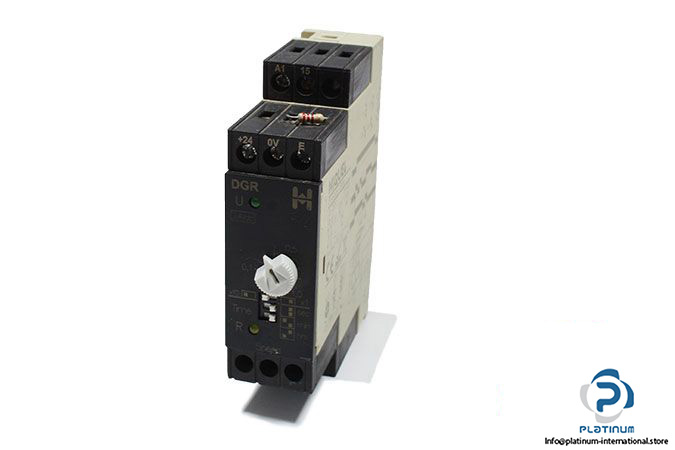

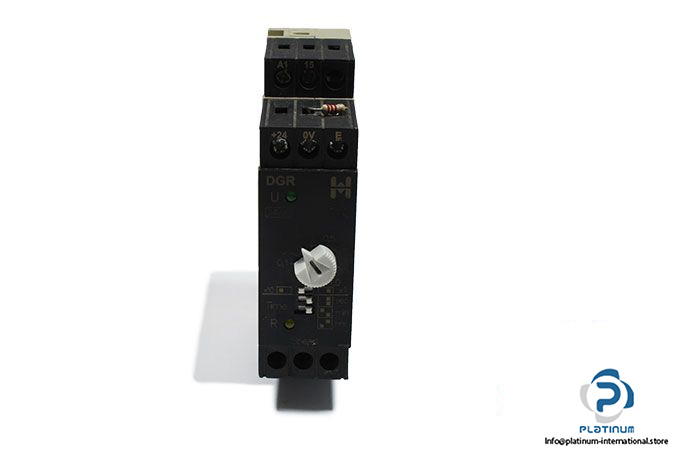

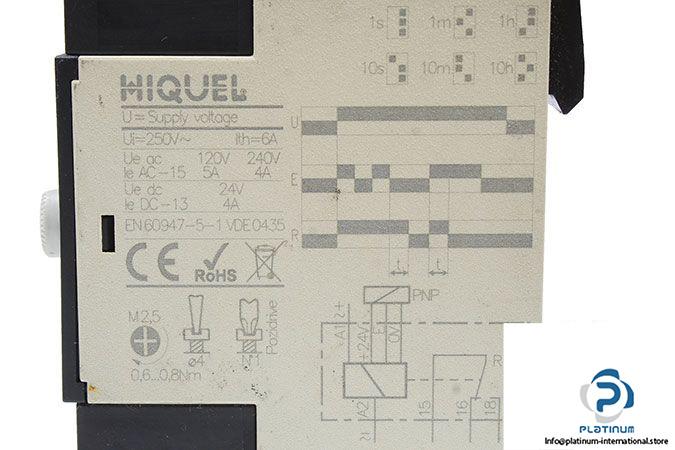

Hiquel DGR 24 VDC Speed Control/Plc Watchdog Relay

Manufacturer: HIQUEL

Type: Speed Control/Plc Watchdog Relay

Model: DGR 24VDC



Supply Voltage: 24 VDC

Power: 1 W

Relay Type: AC-15 230 VAC, 1.5 A ; AC-15 115 VAC, 1.5 A ; DC-13 25 VDC

Supply Voltage Variation: nominal voltage -15%..+10%

Frequency Range:  48 … 63 Hz

Max. Delay Time: 100% of the selected time range

Max. Input Frequency: 10 Hz or 600 Rpm

Operating Conditions: -20 … +60°C non condensing

Screw Tightening Torque: 0.4 Nm

Dimensions: 22.7 X 85 X 68 mm

Weight: 0.09 kg
