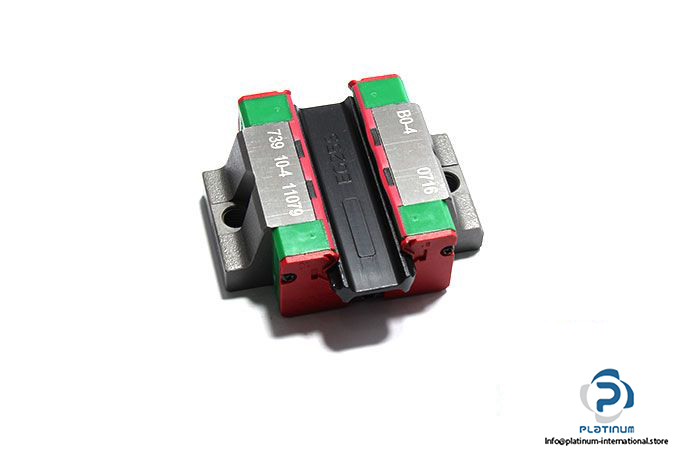

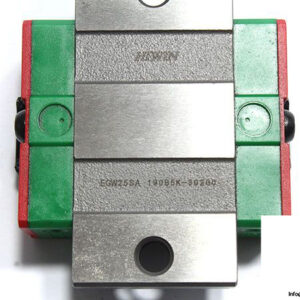

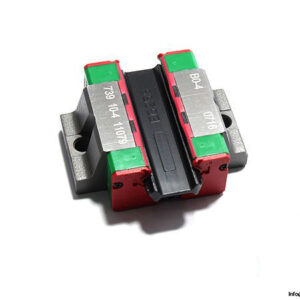

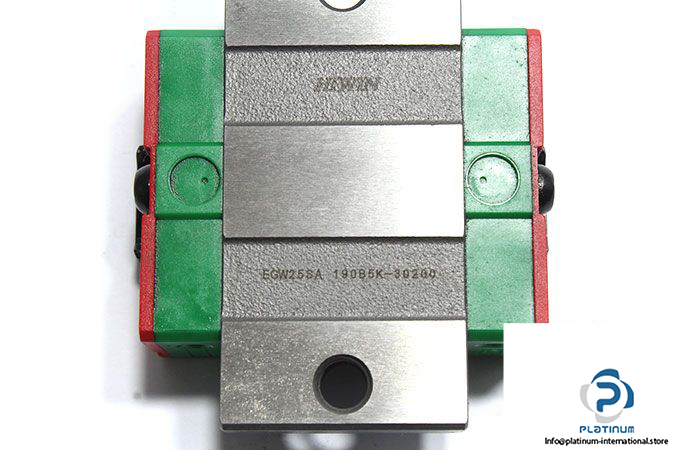

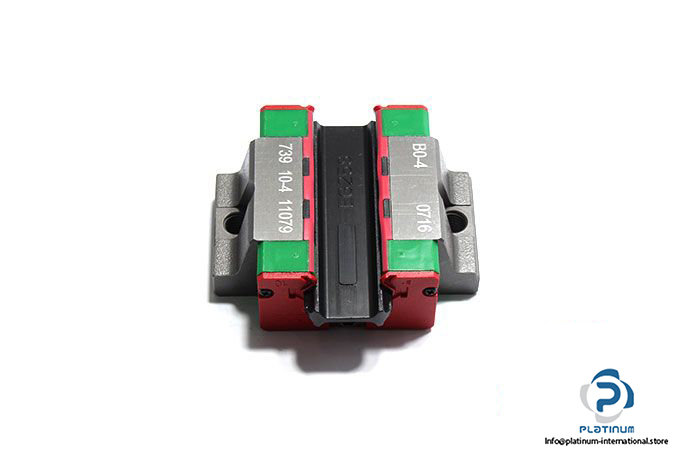

Hiwin EGW25SA Linear Guideway Block
New
In stock14 unitsReady to ship
58,42$
LINEAR GUIDEWAY BLOCK
Flange-type linear guideway block from Hiwin EG Series with 25 mm size and 11.4 kN dynamic load capacity, ideal for medium-load, low-profile motion applications requiring high rigidity and smooth performance.190B5K-3020025BlockEGEGW25SAFlangeGuideGuidewayHiwinLinearLoadlowMediummmmountProfilerailSeriesTopType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN EGW25SA LINEAR GUIDEWAY BLOCK
The Hiwin EGW25SA is a flange-type linear guideway block from the EG Series, designed for medium-load industrial motion applications. With a low-profile, top-mounted configuration and high rigidity, it ensures smooth linear movement and excellent load support.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: EGW25SA
MRN: EGW25SA 190B5K-30200
| Size | 25 mm |
| Total Height H | 33 mm |
| Block Width W | 73 mm |
| Block Length L | 59.1 mm |
| Block Height | 26 mm |
| Distance Between Holes | 60 mm |
| Dynamic Load Rating (Cr) | 11.4 kN |
| Static Load Rating (C0r) | 19.5 kN |
| Series | EG Series (Low Profile Ball Type) |
| Block Type | W (Flange Type) |
| Load Type | S (Medium Load) |
| Mounting Type | A (Top Mounting) |
