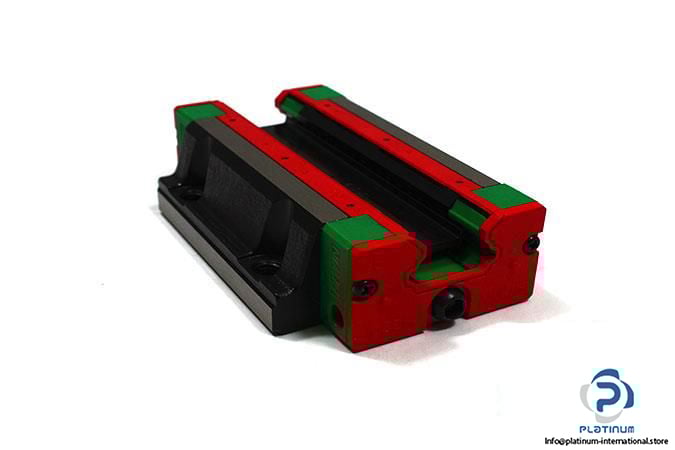

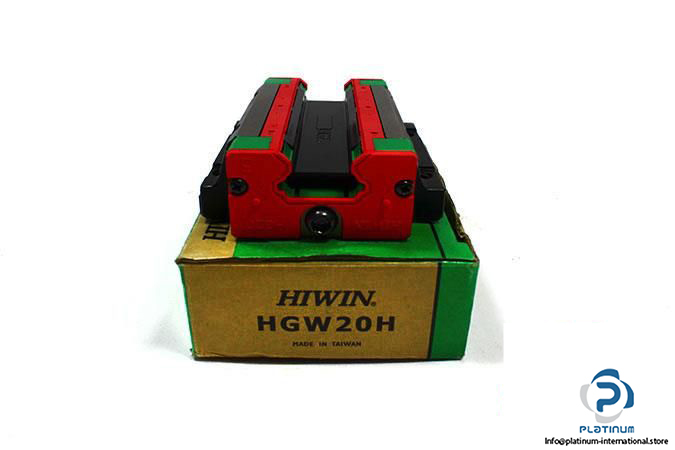

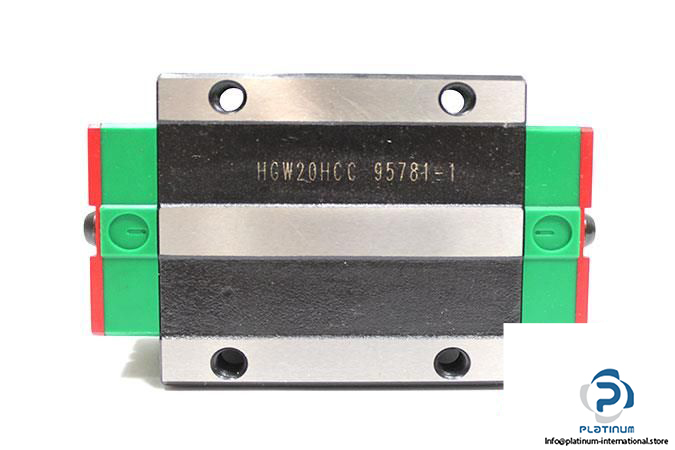

Hiwin HGW20HC Linear Guideway Block
New
In stock50 unitsReady to ship
74,29$
LINEAR GUIDEWAY BLOCK
Hiwin HGW20HCC linear guideway block, 20 mm size, flange type, supports super heavy loads with high accuracy and rigid top or bottom mounting flexibility.20bearingBlockCNCFlangeGuideGuidewayHeavyHGW20HCCHiwinIndustrialLinearLoadM5mmMotionPrecisionrailSuper
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN HGW20HCC LINEAR GUIDEWAY BLOCK
The Hiwin HGW20HCC linear guideway block is engineered for precision motion systems demanding high load capacity and stable linear guidance. Designed for super heavy load applications, this flange-type block provides outstanding rigidity and smooth travel under both top and bottom mounting configurations.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW20HCC

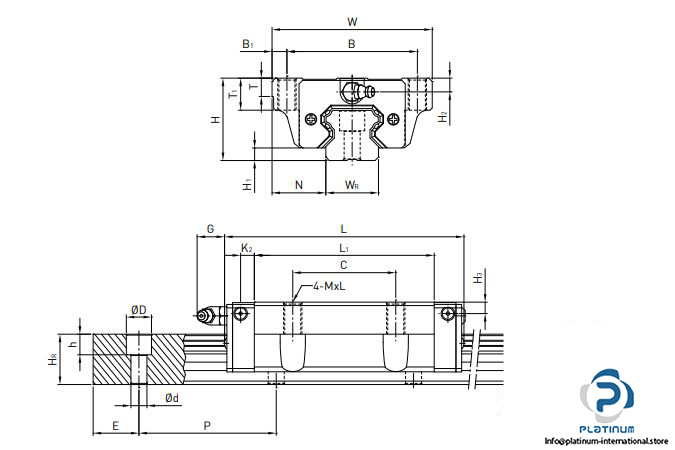

| Size | 20 mm |
| Block Height | 25.4 mm |
| System Height | 30 mm |
| Block Width (W) | 63 mm |
| Block Length (L) | 92.2 mm |
| Thread Size | M5 x 16 |
| Hole Distances (B, C) | 53 mm, 40 mm |
| Rail Width | 20 mm |
| Rail Height | 17.5 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Precision Code | C |
| Basic Dynamic Load Rating | 32.7 kN |
| Basic Static Load Rating | 47.96 kN |
